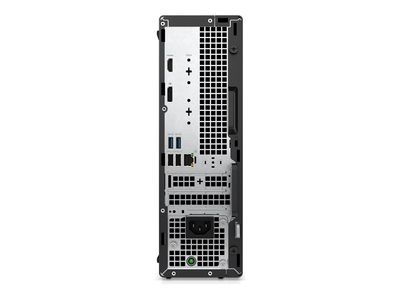

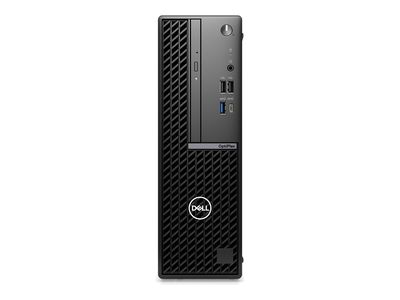

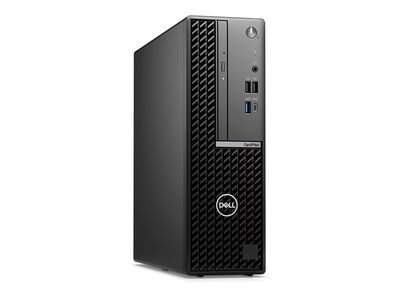

Dell OptiPlex 7020 (version 2024) - SFF Core i5 i5-14500 2.6 GHz - 8 GB - SSD 512 GB

Article-No.:
239700
Manufacturer-No.:
4KCT8
EAN/GTIN:
5397184852309

Suitable products

Similar products

Technical specifications

General

Packaged Quantity
1

System

Type
Personal computer
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip

Chassis

Form Factor
Small form factor

Processor

Type
Core i5
Installed Qty
1
Max Supported Qty
1
Manufacturer
Intel
Clock Speed
2,6 GHz
Processor Main Features
20 Threads
Processor Number
I5-14500
Number of Cores
14-core
Max Turbo Speed
5 GHz

Mainboard

Chipset Type
Intel Q670

RAM

Technology
DDR5 SDRAM
Form Factor
DIMM 288-pin
Memory Speed
4800 MHz
Configuration Features
1 x 8 GB
Empty Slots
1
Slots Qty
2
Installed Size
8 GB
Max Supported Size
64 GB

Hard Drive

Installed Qty
1
Capacity
512 GB
Hard Drive Features
NVM Express (NVMe), Class 35
Type
SSD
Interface Class
PCI Express
SSD Form Factor
M.2 2230

Second Hard Drive

Type
None

Third Hard Drive

Type
None

Fourth Hard Drive

Type
None

Optical Storage

Drive Type
No optical drive

Second Optical Storage

Type
None
Drive Type
No optical drive

Blank Disk

Type
None

Display

Type
None.

Video Output

Graphics Processor
Intel UHD Graphics 770
Video Interfaces
HDMI, DisplayPort

Video Memory

Memory Allocation Technology
Shared video memory (UMA)

Audio Output

Compliant Standards
High Definition Audio

Printer

Type
None

Input Device

Type
Mouse (on selected markets only), Keyboard (on selected markets only)

Keyboard

Keyboard Name
Dell KB216 Multimedia Keyboard

Mouse

Technology
Optical
Interface
USB
Mouse Name
Dell MS116 USB Optical Mouse

Networking

Interface (Bus) Type
M.2 2230
Ethernet Controller(s)
Intel I219-LM
Wireless Protocol
802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth
Wireless LAN Supported

Expansion Bays

Bays
Internal 3.5", Internal 2.5", 1 (total) / 1 (free) x external 5.25" Slim Line

Expansion Slots

Slots
1 (total) / 1 (free) x PCIe 3.0 x1 - half-height, 1 (total) / 0 (free) x M.2 Card - 2230 (for WLAN), 1 (total) / 0 (free) x M.2 Card - 2230/2280 (for SSD), 1 (total) / 1 (free) x PCIe 3.0 x16 - half-height

OS Provided

Type
Windows 11 Pro
Language
Dutch / English / French / German / Italian
Family
Windows 11
Edition
Windows 11 Pro

Software

Type
Intel Connectivity Performance Suite, Dell Additional Softwares, No Microsoft Office License Included - 30 day Trial Offer Only, Intel Rapid Storage Technology

Power Device

Type
Power supply
Voltage Required
AC 90-264
Frequency Required
50/60
Power Provided
180 Watt
80 PLUS Certification
80 PLUS Bronze

Dimensions & Weight

Width
9,26 cm
Depth
29,28 cm
Height
29 cm
Weight
48 kg

Service & Support

Bundled Services
1 Year Basic Onsite (AT, DE - 2 Years)

Miscellaneous

Color
Black
Color Category
Black
Theft/Intrusion Protection
Lockable cable covers, Security lock slot (cable lock sold separately), Padlock loop, Chassis intrusion switch
Security Slot Type
Kensington security slot
Description
The Dell OptiPlex 7020 is designed for efficient use in a professional environment. This system combines robust processing power and essential connectivity features, making it suitable for a variety of tasks. The Core i5 processor ensures reliable performance, while the NVM Express (NVMe) SSD provides speedy access to data, enhancing overall productivity. The device operates efficiently in a temperature range from 10°C to 35°C, ensuring functionality in diverse work settings. Equipped with multiple interface options including USB 3.2 Gen 1 and DisplayPort 1.4a, the Dell OptiPlex 7020 allows for seamless integration into most office setups. Coupled with a trusted security design featuring a Kensington security slot and a chassis intrusion switch, it offers peace of mind for data protection. The inclusion of Intel UHD Graphics 770 supports basic graphics tasks, making this system suitable for both data management and multimedia applications.
  • Efficient processing capabilities
    The Intel Core i5 processor delivers solid performance, making it suitable for various applications from data processing to multimedia tasks.
  • Fast storage solution
    With an NVM Express (NVMe) SSD, data retrieval speeds are significantly improved, leading to quicker boot times and smooth operation.
  • Robust connectivity options
    Featuring USB 3.2 Gen 1 and DisplayPort 1.4a, the OptiPlex 7020 allows for versatile connections to various peripherals and displays.
  • Secure design features
    This system includes a Kensington security slot and chassis intrusion switch, offering enhanced protection against unauthorized access.
  • Reliable operation under varying conditions
    Designed to function within a temperature range of 10°C to 35°C and a humidity range of 20 to 80%, ensuring durability in different environments.
