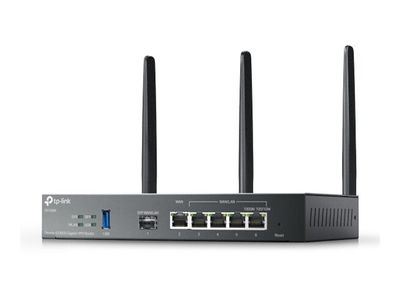

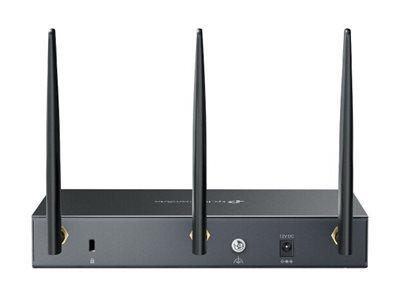

TP-Link Omada ER706W V1 - wireless router - Wi-Fi 6 - desktop, wall-mountable

Article-No.:

220227

Manufacturer-No.:

ER706W

EAN/GTIN:

4895252500691

WEEE Nummer

DE85565951

Compare

Print view

Similar products

TP-Link Wireless Router TL-MR6400 - 300 Mbit/s

TP-Link WIFI Router TD-W9970 - 300 Mbit/s

TP-Link Archer C6 - wireless router - 802.11a/b/g/n/ac - desktop

TP-Link WLAN Router Archer C80 - 1300 Mbit/s

TP-Link WLAN Router TD-W9960V - 300Mbit/s

QNAP QHora-301W - wireless router - 802.11a/b/g/n/ac/ax - desktop

QNAP QMiro-201W - wireless router - 802.11a/b/g/n/ac, Bluetooth 5.0 - desktop

TP-Link Archer VR2100v V1 - wireless router - DSL modem - 802.11a/b/g/n/ac, DECT - desktop

TP-Link WLAN Router Deco X20-4G V1 - 1800 Mbit/s

ASUS WLAN Router ROG STRIX GS-AX5400 - 5400 Mbit/s

ASUS WLAN Router 4G-AC86U - 600 Mbit/s

TP-Link Archer AX73 V1 - bis zu 4804 Mbit/s

TP-Link WLAN-Router Archer AX23 V1 - up to 1201 Mbit/s

ASUS RT-AX58U V2 - wireless router - Wi-Fi 6 - desktop

Acer Connect M5 - wireless router - WWAN - LTE, Wi-Fi 6 - 4G, 5G - desktop

Ubiquiti Wireless Router UFiber WiFi6 - Max. 2.4 Gbit/s

TP-Link Wireless Router Deco X20-DSL V1 - Max. 1201 Mbit/s

Ubiquiti WLAN Router Networks Dream - 2400 Mbit/s

ASUS 4G-N16 - wireless router - WWAN - Wi-Fi, LTE

ASUS Wireless Router RT-AX82U - Max. 5400 Mbit/s

ASUS RT-AX86U Pro - wireless router - Wi-Fi 6 - Wi-Fi 6 - desktop

ASUS Dual Band Router TUF Gaming AX4200

ASUS Wireless Router RT-AX88U Pro - 4804 Mbit/s

ASUS TUF Gaming AX6000 - wireless router - Wi-Fi 6 - Wi-Fi 6 - desktop

Ubiquiti AmpliFi Alien AFI-ALN-R - wireless router - Wi-Fi 6 - desktop

ASUS RT-AX57 GO - wireless router - WWAN - Wi-Fi 6 - desktop

TP-Link Archer BE800 V1 - wireless router - Wi-Fi 7 - desktop

TP-Link Omada ER706W-4G V1 - wireless router - WWAN - Wi-Fi 6 - 4G - desktop, wall-mountable

ASUS RT-BE88U - wireless router - Wi-Fi 7 - desktop

Technical specifications

General

Packaged Quantity

Antenna

Antenna Qty

Antenna Form Factor

External detachable

Chassis

Built-in Devices

3G/4G module

RAM

Technology

DDR4 SDRAM

Installed Size

512 MB

Flash Memory

Installed Size

128 MB

Modem

Digital Signaling Protocol

H.323, SIP

Performance

Maximum throughput (5 GHz): 2402 Mbps, Maximum throughput (2.4 GHz): 574 Mbps, Channel bandwidth (5 GHz): 160 MHz, GRE unencrypted throughput: 624.2 Mbps, GRE encrypted throughput: 301.5 Mbps, VPN WireGuard throughput: 393.5 Mbps, VPN throughput (256-bit AES+SHA1 IPSec): 646.9Mbps, VPN throughput (256-bit AES+SHA256 IPSec): 642.8Mbps, VPN throughput (256-bit AES+SHA384 IPSec): 648.9Mbps, VPN throughput (256-bit AES+SHA512 IPSec): 658.4 Mbps, OpenVPN throughput: 129.3 Mbps, VPN unencrypted throughput (L2TP): 1034.0 Mbps, VPN encrypted throughput (L2TP): 570.0 Mbps, VPN unencrypted throughput (PPTP): 1165.0 Mbps, VPN encrypted throughput (PPTP): 209.0 Mbps, VPN throughput (SSL): 126.7Mbps, Download forwarding rate (66-byte packet size): 1453489 pps, Upload forwarding rate (66-byte packet size): 1453488 pps, Download forwarding rate (1518-byte packet size): 81274 pps, Upload forwarding rate (1518-byte packet size): 91275 pps

Capacity

PPTP VPN clients: 10, L2TP VPN clients: 10, New sessions per second: 5100, OpenVPN clients: 5, OpenVPN tunnels: 55, IPSec VPN tunnels: 100, SSL VPN tunnels: 50, Concurrent sessions: 150000, L2TP VPN tunnels: 50, PPTP VPN tunnels: 50

Networking

Type

Wireless router

Network / Transport Protocol

PPTP, L2TP, WireGuard, OpenVPN, UDP, TCP, FTP, DHCP, DDNS, IPSec, PPPoE

Routing Protocol

GRE, OSPF, RIP, Static IP routing

Integrated Switch

4-port switch

Wireless Protocol

802.11a/b/g/n/ac/ax

Wi-Fi Bands

2.4 GHz / 5 GHz

Wi-Fi Rating

AX3000

Power Device

Type

Internal power supply

System Requirements

OS Required

UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11

Dimensions & Weight

Width

22,6 cm

Depth

13,1 cm

Height

3,5 cm

Miscellaneous

Color Category

Black

Description

The TP-Link Omada ER706W V1 bridges and routers bring Wi-Fi 6 technology into your home or office, ensuring a high-speed, secure, and reliable Internet connection. With its dual-band capabilities, it delivers impressive speeds of up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, making it perfect for bandwidth-intensive tasks.
Security is paramount, and the ER706W V1 excels with a suite of advanced encryption protocols, including WPA3-Personal, to protect your network from external threats. The router also supports a wide range of VPN protocols, offering flexible and secure options for remote access.
Designed for versatility, it features an integrated 4-port switch, USB 3.0 for LTE connectivity, and multiple WAN ports, ensuring you have all the connectivity options you need. Whether for work or play, the TP-Link Omada ER706W V1 is equipped to handle all your Internet needs with ease.

Enhanced security
With a comprehensive suite of encryption algorithms including 128-bit AES, 192-bit AES, 256-bit AES, and WPA3-Personal, the TP-Link Omada ER706W V1 ensures your network remains secure against external threats.
High-speed connectivity
Experience fast Internet speeds with Wi-Fi 6 technology, offering maximum throughput of 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, ensuring smooth streaming and gaming.
Versatile VPN support
Supporting a wide range of VPN protocols including IPSec, OpenVPN, and WireGuard, the router provides flexible and secure options for remote access, with impressive throughput rates for both encrypted and unencrypted connections.
Advanced networking features
From seamless roaming and self-healing network capabilities to bandwidth control and load balancing, the TP-Link Omada ER706W V1 is equipped with everything needed to manage a highly efficient network environment.
Robust connectivity options
With multiple WAN ports, USB 3.0 for LTE connectivity, and an integrated 4-port switch, this router offers a variety of options for connecting devices and ensuring constant Internet access.
