5120 x 2880 - 60 Hz (DisplayPort 1.4 only), 7680 x 4320 - 30 Hz, 3840 x 2160 - 60 Hz (DisplayPort 1.4 over USB-C), 3840 x 2160 - 30 Hz (DisplayPort 1.2 over USB-C), 3840 x 2160 - 60 Hz (Dual Display), 5120 x 2880 - 60 Hz (DisplayPort 1.4 over USB-C), 3840 x 2160 - 144 Hz (DisplayPort 1.4 only), 2560 x 1440 (Dual Display)
Power Device
Type
Power adapter
Nominal Voltage
AC 120/230 V
System Requirements
OS Required
Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Ubuntu 20.04, Apple macOS Monterey 12.0, Windows 8 / 10 / 11, Apple macOS Ventura 13.0, Apple macOS Mojave 10.14, Ubuntu 18.04
Dimensions & Weight
Width
22 cm
Depth
8 cm
Height
3 cm
Weight
250 g
Dimensions & Weight (Shipping)
Shipping Width
30,5 cm
Shipping Depth
16 cm
Shipping Height
11 cm
Shipping Weight
1,1 kg
Service & Support
Type
3-year warranty
Miscellaneous
Features

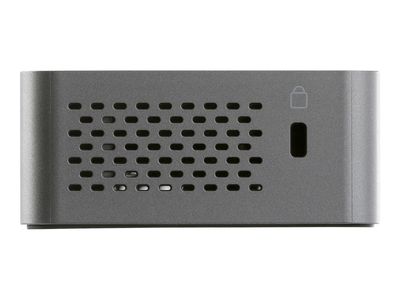

Security lock slot (cable lock sold separately), 96W power delivery
Color Category
Black, Gray
Security Slot Type
Kensington security slot
Description

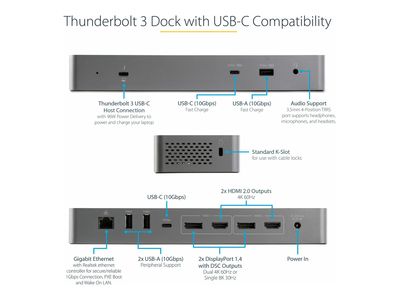

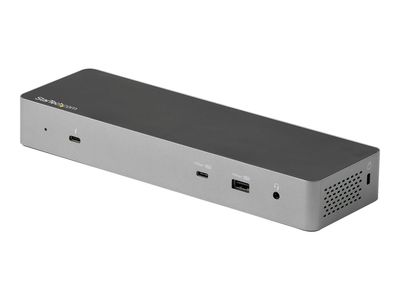

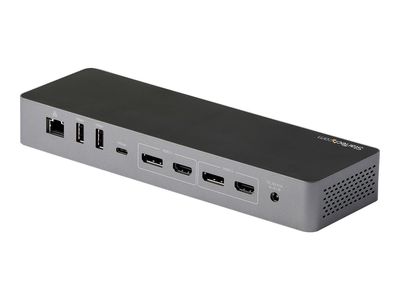

A high-performance Thunderbolt 3 Certified docking station with USB Type-C compatibility featuring dual monitor 4K 60Hz DSC support from either Dual or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, gigabit Ethernet & headset ports. Flexible Dual Display Outputs This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways: DisplayPort + DisplayPort HDMI + HDMI DisplayPort + HDMI Resolutions and video outputs are host-dependent. More Downstream USB Ports Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports: Front Facing: 1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging 1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging Back Facing: 2x USB 3.2 Gen 1 Type-A (5 Gbps) 1x USB 3.2 Gen 2 Type-C (10 Gbps) Easy to Set Up & Manage This universal Thunderbolt 3 / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt 3 host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility. Connected Device Transparency with the StarTech.com MAC Address Changer Utility The TB3CDK2DHUE includes a free Windows application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail. TB3CDK2DHUE is backed by a StarTech.com three-year warranty and free lifetime technical support.

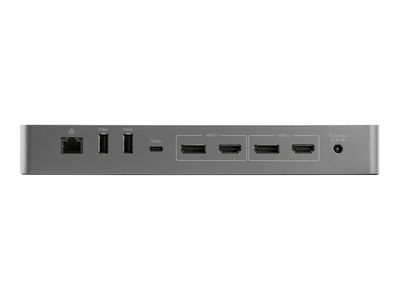

Flexible Dual Display Outputs This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:
More Downstream USB Ports Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports: Front Facing:
Easy to Set Up & Manage This universal Thunderbolt 3 / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt 3 host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: •Text | Advanced Windows Layout Utility : To setup and save custom windows layouts. •Text | Mac Address Pass-Through Utility : To improve network security. •Text | USB Event Monitoring Utility : To track and log connected USB devices •Text | Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
