StarTech.com Serial Adapter PEX8S1050LP - PCIe

Article-No.:
194265
Manufacturer-No.:
PEX8S1050LP
EAN/GTIN:
0065030886574
WEEE Nummer
DE62095745

Suitable products

Technical specifications

General

Packaged Quantity
1

Processor

Manufacturer
ASMedia
Processor Number
ASM1083

Ports

Qty
8
Type
RS-232

Networking

Type
Serial adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express
Low Profile
Low profile

System Requirements

OS Required
Microsoft Windows CE 5.0, Microsoft Windows Server 2008 R2, Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Server 2012, Microsoft Windows XP / 7 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2003, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019

Dimensions & Weight

Width
6,7 cm
Depth
14,3 cm
Height
2 cm
Weight
120 g

Dimensions & Weight (Shipping)

Shipping Width
29 cm
Shipping Depth
19,2 cm
Shipping Height
7 cm
Shipping Weight
700 g

Service & Support

Type
Limited lifetime warranty

Miscellaneous

Color
Yellow
Color Category
Yellow
Description

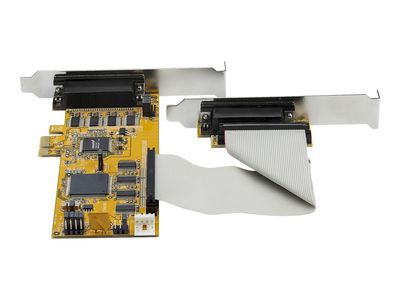

Add eight RS232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors. It also features a UART 16550.
Versatile Use
The low profile PCI E serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a LP bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.
Windows Only
This PCI Express card is only compatible with Windows.
  • Connect your Peripherals with 8 Serial Ports
    The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.
  • Versatile Use
    The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.
  • Windows Only
    This PCI Express card is only compatible with Windows and Windows server.
Product content

Product content

  • 1 PCIe Serial Card
  • 2 1 ft [30 cm] DB44 to 4-Port DB9 Break-out Cables

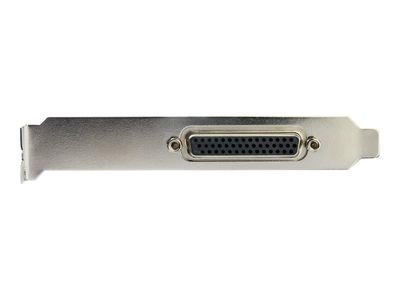

  • 2 Low Profile Brackets (Installed)
  • 2 Full Profile Brackets
  • 1 Quick-Start Guide
  • 8 Optional DB9 Connector Hex Nut Pairs
