StarTech.com Dual-Laptop USB-C KVM docking station

StarTech.com Dual-Laptop USB-C KVM docking station_thumb_1
StarTech.com Dual-Laptop USB-C KVM docking station_thumb_2
StarTech.com Dual-Laptop USB-C KVM docking station_thumb_3
StarTech.com Dual-Laptop USB-C KVM docking station_thumb_4
StarTech.com Dual-Laptop USB-C KVM docking station_thumb_5
StarTech.com Dual-Laptop USB-C KVM docking station_thumb_6
StarTech.com Dual-Laptop USB-C KVM docking station_thumb_7
StarTech.com Dual-Laptop USB-C KVM docking station_thumb_8
StarTech.com Dual-Laptop USB-C KVM docking station_1
StarTech.com Dual-Laptop USB-C KVM docking station_2
StarTech.com Dual-Laptop USB-C KVM docking station_3
StarTech.com Dual-Laptop USB-C KVM docking station_4
StarTech.com Dual-Laptop USB-C KVM docking station_5
StarTech.com Dual-Laptop USB-C KVM docking station_6
StarTech.com Dual-Laptop USB-C KVM docking station_7
StarTech.com Dual-Laptop USB-C KVM docking station_8
Article-No.:
239266
Manufacturer-No.:
129UE-USBC-KVM-DOCK
EAN/GTIN:
0065030898492
WEEE Nummer
DE62095745
Compare
Print view

Suitable products

Technical specifications

Description

Technical specifications

General

Packaged Quantity
1

System

Device Type
Docking station
Docking Interface
USB-C 3.2 Gen 2
Video Interfaces
2 x DP

Max Resolution

Max Resolution Details
4096 x 2160 - 60 Hz

Networking

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet

Power Device

Type
Power adapter
Voltage Required
AC 100-240
Nominal Voltage
AC 120/230 V

System Requirements

OS Required
Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Ubuntu 20.04, Apple macOS Monterey 12.0, Microsoft Windows 10 / 11, Apple macOS Ventura 13.0, Ubuntu 22.04, Apple macOS Sonoma 14.0, Google Chrome OS, Ubuntu 18.04

Dimensions & Weight

Width
9 cm
Depth
22,4 cm
Height
4 cm
Weight
402 g

Dimensions & Weight (Shipping)

Shipping Width
16 cm
Shipping Depth
28,5 cm
Shipping Height
9 cm
Shipping Weight
1,8 kg

Service & Support

Type
3-year warranty

Miscellaneous

Features
Security lock slot (cable lock sold separately), Plastic housing, Up to 10Gbps data transfer, Host selection button, Dual KVM host devices, 90W power delivery for active host device, 45W power delivery for standby host device, LED indicator, Dual display support, Full duplex support, MAC address pass-through
Color Category
Gray
Security Slot Type
Kensington nano security slot / Kensington security slot
Description
The USB-C KVM Docking Station facilitates a dual-host, dual monitor 4K 60Hz workstation with two DisplayPort ports. Connect two USB-C laptops and select the target host device, using the toggle button. It features a 5-Port USB Hub, a Gb Ethernet port, and USB Power Delivery to charge the hosts and peripherals. Additionally, 3.5mm ports enable speaker and mic audio. The dock is DisplayLink Certified, for Plug and Display compatibility with Windows, ChromeOS, and macOS (supports mixed operating systems). DisplayLink technology supports extended dual displays on base Apple M-Series MacBooks, which are not natively capable of driving more than one external display. The KVM docking station charges both host computers over USB-C, using Power Delivery 3.0. The dock supplies 90W of power to the active host and 45W of power to the host on standby.
  • DisplayLink Certified
    The Dock is DisplayLink Certified, for Plug and Display compatibility with Windows, ChromeOS, and macOS, enabling operation and switching between multiple computers with different operating systems. DisplayLink technology also supports extended dual displays on base Apple M-Series MacBooks, which are not natively capable of driving more than one external display. The DisplayLink Certification ensures support for resolutions up to 4K 60Hz on both external displays.
  • Simultaneously Charge Two Laptops
    The KVM Dock supports Power Delivery (PD) 3.0 and charges both connected computers over USB-C. The Dock supplies 90W of power to the active host computer and 45W of power to the second PC, ensuring both laptops can charge simultaneously.
  • Full-Featured Docking Station

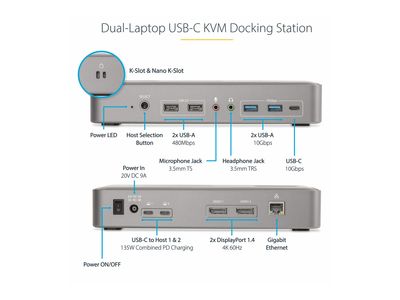

    Connect two USB-C computers to this Dock to access a wide range of port connectivity, options and features. The Dock features: • 2x DisplayPort ports for dual display output with support for resolutions up to dual 4K 60Hz. • 2x USB-A (USB 2.0 480Mbps) HID ports for USB devices, such as a keyboard and mouse. • 2x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) ports for connecting high speed USB peripherals, such as SSD storage. • 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection. • 1x 3.5mm 3-position TRRS jack for stereo audio output. • 1x 3.5mm 2-position microphone jack for mono audio input. • 2x K-Slots (regular/nano) to tether the Dock with a cable lock (sold separately) for security. The Dock features a mounting pattern so it can be mounted when paired with StarTech.com mounting accessories (sold separately). Our mounting accessories enable mounting to the VESA pattern on the back of a monitor or to any flat surface. The following mounts are compatible with this product: • SSPMSUDWM - Dock Surface Mount • SSPMSVESA - Dock VESA Mount
  • Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
    Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: •Text | Advanced Windows Layout Utility : Setup and save custom windows layouts. •Text | Mac Address Pass-Through Utility : Improve network security. •Text | USB Event Monitoring Utility : Track and log connected USB devices. •Text | Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN. Linux users will not have access to the following software features: • Set Laptop Screen Location for Mouse Cursor/Keyboard Edge Scrolling. • Switch UFP (Upstream Facing Port). • Ctrl-Alt-Del Functionality. • Change Hot-Key for Switching. • KM Master for Mouse Cursor/Keyboard Edge Scrolling.
Documents

Documents

Product content

Product content

  • 1 USB-C Docking Station
  • 2 3.3 ft [1 m] USB-C Host Cables
  • 1 Universal Power Adapter with Attached 5 ft [1.6 m] DC Cable
  • 2 6 ft [1.8 m] Regional Power Cables (EU, UK)
  • 1 Quick-Start Guide
