StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - SATA III 6Gbps (PEXESAT322I) - storage controller - SATA 6Gb/s / eSATA 6Gb/s - PCIe x1

Article-No.:
149609
Manufacturer-No.:
PEXESAT322I
EAN/GTIN:
0065030848428
WEEE Nummer
DE62095745

Suitable products

Technical specifications

General

Packaged Quantity
1
Product Type
Storage controller

Storage Controller

Form Factor
Plug-in card
Bus Type
PCI Express x1
Data Transfer Rate
600 MBps
Interface Type
Serial ATA-600 / eSATA-600

Slot Required

Compatible Slots
1 x PCI Express x1

Software

Type
Drivers & Utilities

Power Device

Type
None

System Requirements

OS Required
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)

Dimensions & Weight

Width
9,2 cm
Depth
12,1 cm
Height
2 cm
Weight
48 g

Service & Support

Type
2-year warranty

Compatibility

Description
P/N: S251SMU33EP, S3520BU33ER, S355BU33ERM, ST521PMINT
Specs
P/N: S251SMU33EP, S3520BU33ER, S355BU33ERM, ST521PMINT

Miscellaneous

Features
Native Command Queuing (NCQ)
Color Category
Black
Description

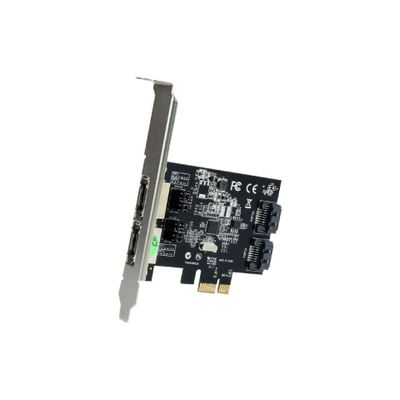

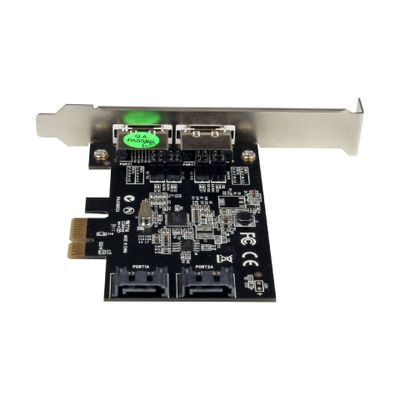

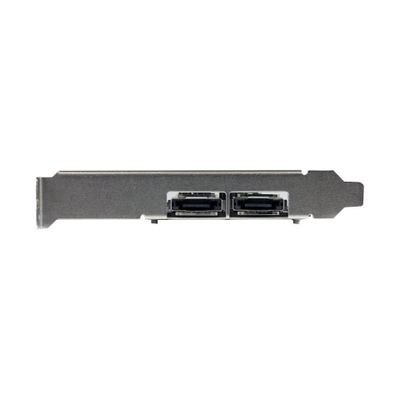

Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot. The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6 Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
