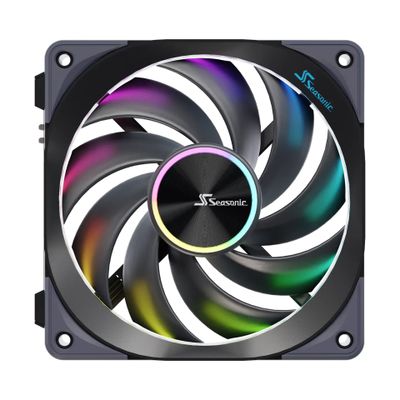

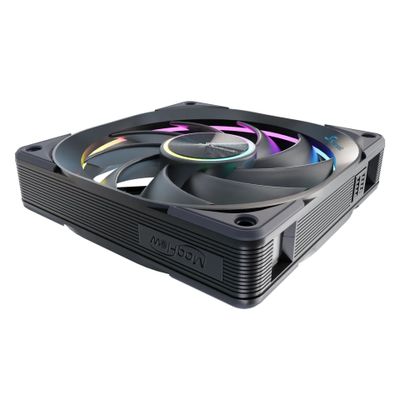

Seasonic MagFlow ARGB - case fan

Article-No.:
226143
Manufacturer-No.:
MAGFLOW-ARGB-1
EAN/GTIN:
4711173878087
WEEE Nummer
DE30626183
Technical specifications

General

Product Type
Case fan
Packaged Quantity
1

Heatsink & Fan

Fan Diameter
120 mm
Fan Height
26.6 mm
Rotation Speed
600-2000 rpm
Air Flow
49.47 cfm
Power Connector
4 pin PWM + 3 pin ARGB (w/ extension adapter)
Features
Daisy-chain design, Metal-reinforced motor hub, ARGB LED illumination, 4-pole fan motor, Magnetic connection system, Nine Blades design, Pulse-width modulation (PWM) support, Modular frame
Fan Bearing
Fluid dynamic bearing
Air Pressure
2.28 mm
Noise Level
30.155 dBA
Power Consumption
2.16 W

Dimensions & Weight

Width
12,42 cm
Depth
124 cm
Height
2,66 cm
Weight
214 g

Service & Support

Type
3-year warranty

Miscellaneous

Product Material
Polybutylene terephthalate (PBT), Liquid-crystal polymer (LCP) blades
Features
Box package, Shock-absorbing pads
Color Category
Black
RGB
Description
The Seasonic MagFlow ARGB case fan is engineered for performance and aesthetics. With a diameter of 120 mm and a height of 26.6 mm, this fan rotates at speeds ranging from 600 to 2000 rpm, generating an airflow of 49.47 cfm while maintaining a noise level of 30.155 dBA. Featuring a fluid dynamic bearing for quiet operation, this fan also incorporates a nine blades design that optimizes air pressure at 2.28 mm, ensuring efficient cooling performance.
The fan includes a modular frame and daisy-chain design, allowing for flexible installations. The package comes with essential accessories, including a power cable, PWM extension cable, ARGB extension cable, and four fan screws. The metal-reinforced motor hub and shock-absorbing pads enhance durability and stability, making this fan a reliable choice for cooling systems. With a lifespan of 100,000 hours MTBF and compliance with RoHS and WEEE standards, the Seasonic MagFlow ARGB case fan is designed for those seeking a blend of efficiency and style in their builds.
  • Efficient airflow design
    The fan generates an airflow of 49.47 cfm, essential for effective cooling in various setups.
  • Quiet operation
    Maintaining a noise level of 30.155 dBA, this fan ensures minimal disruption during operation.
  • Flexible installation options
    The modular frame and daisy-chain design provide options for adjustments in fan placement.
  • Attractive illumination
    ARGB LED illumination adds visual appeal, enhancing the overall look of any build.
  • Robust construction
    With a metal-reinforced motor hub and shock-absorbing pads, the fan promotes long-lasting durability.
