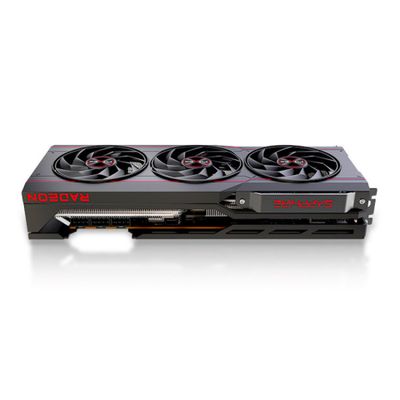

Sapphire graphics card PULSE AMD Radeon RX 7900 XTX - 24 GB GDDR6

Sapphire graphics card PULSE AMD Radeon RX 7900 XTX - 24 GB GDDR6_thumb_3

Sapphire graphics card PULSE AMD Radeon RX 7900 XTX - 24 GB GDDR6_thumb_4

Sapphire graphics card PULSE AMD Radeon RX 7900 XTX - 24 GB GDDR6_thumb_5

Sapphire graphics card PULSE AMD Radeon RX 7900 XTX - 24 GB GDDR6_thumb_6

Sapphire graphics card PULSE AMD Radeon RX 7900 XTX - 24 GB GDDR6_1

Sapphire graphics card PULSE AMD Radeon RX 7900 XTX - 24 GB GDDR6_2

Sapphire graphics card PULSE AMD Radeon RX 7900 XTX - 24 GB GDDR6_3

Sapphire graphics card PULSE AMD Radeon RX 7900 XTX - 24 GB GDDR6_4

Sapphire graphics card PULSE AMD Radeon RX 7900 XTX - 24 GB GDDR6_5

Sapphire graphics card PULSE AMD Radeon RX 7900 XTX - 24 GB GDDR6_6

Article-No.:

203517

Manufacturer-No.:

11322-02-20G

EAN/GTIN:

4895106293267

Compare

Print view

Technical specifications

General

Packaged Quantity

Video Output

Interface Type

PCI Express 4.0 x16

Graphics Processor

AMD Radeon RX 7900 XTX

Max External Resolution

7680 x 4320

Max Monitors Supported

API Supported

DirectX 12 Ultimate, Vulkan

Video Adapter Features

Precision Fan Control, TriXX Boost, TriXX Supported, Dual ball Bearing Fans, AMD FidelityFX Super Resolution (FSR), Metal backplate, AMD Link, High TG Copper PCB, Tri-X Cooling Technology, Angular Velocity Fan Blade, Radeon Super Resolution (RSR), AMD Radiance Display Engine, AMD Smart Technologies, AMD Noise Suppression, AMD Privacy View, Conductive polymer aluminum capacitors, 96 AMD RDNA 3 compute units, Microsoft DirectStorage, UEFI BIOS, Intelligent Fan Control (IFC), FreeSync Technology, Fuse protection, 2.7-slot Fan Cooler

Graphics Processor Manufacturer

AMD

Type

Graphics card

Stream Processors Qty

6144

Output Ports (compact list)

2 x HDMI, 2 x DisplayPort

Supported Video Signal

HDMI, DisplayPort

Process Technology

5 nm

Boost Clock Speed

2525 MHz

Video Memory

Technology

GDDR6 SDRAM

Bus Width

384-bit

Installed Size

24 GB

Interfaces

Interfaces Details

2 x DisplayPort, 2 x HDMI

Software

Type

AMD Radeon Software Adrenalin Edition

Power Device

Power Consumption Operational

370 Watt

System Requirements

Additional Requirements

3 x 8 pin PCI Express power connector

Min RAM Size

8 GB

OS Required

Linux, Windows 11, Windows 10

Required Power Supply

800 W

Dimensions & Weight

Width

5,267 cm

Depth

31,3 cm

Height

13,375 cm

Miscellaneous

Color Category

Black

Description

Sapphire Pulse AMD Radeon RX 7900 series are designed with digital power which provides accurate power control and excellent power efficiency.

Ultra high performance conductive polymer aluminum capacitor
The ultra high performance conductive polymer aluminum capacitor has a small PCB foot print but high volumetric capacitance that makes 20-phase power possible on the RX 7900 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.
High TG copper PCB
The GPU is mounted on to the high-density 14 layer 2 oz copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Angular velocity fan blade
The angular velocity fan blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized composite heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Fuse protection
In order to protect your card, the Sapphire cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Two-ball bearing
These feature dual ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in Sapphire's tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
