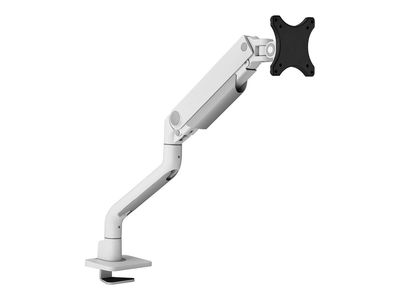

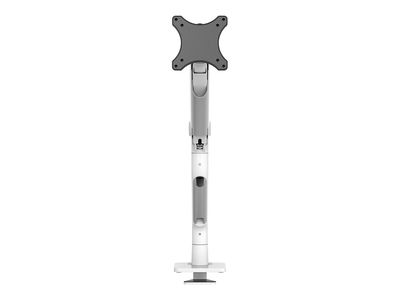

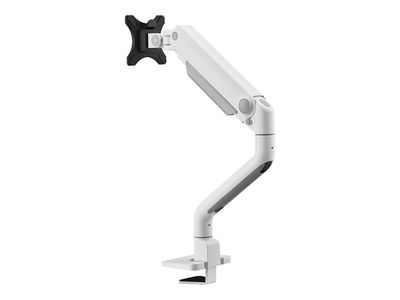

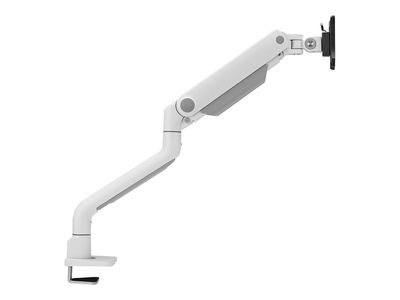

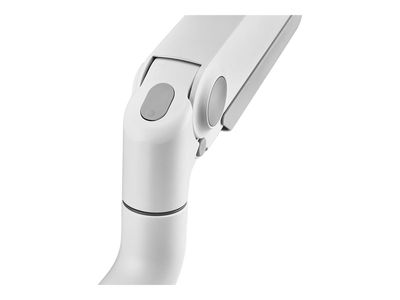

Neomounts DS70S-950WH1 mounting kit - full-motion - for monitor - white

Article-No.:
222488
Manufacturer-No.:
DS70S-950WH1
EAN/GTIN:
8717371441418
Technical specifications

General

Packaged Quantity
1

AV Furniture

Type
Mounting kit
Material
Aluminum
Color
White
Recommended Display Size
17"-49"
Mounting Components
Desk mounting arm
Recommended Display Size (metric)
43.18-124.5 cm
Tilt
-90° to 90°
Rotation
360°
Cable Management
Smart Cable Management System
Adjustments
Height, Tilt, Swivel, Rotation, Width, Depth
Swivel
-90° to 90°

Dimensions & Weight

Width
13,5 cm
Depth
65,6 cm
Height
52,1 cm
Adjustable Height
20-52 cm
Adjustable Width
107.4 cm
Adjustable Depth
8.8-62.5 cm

Service & Support

Type
10-year warranty

Miscellaneous

Max Load Weight
18 kg
Color Category
White
Min Load Weight
1 kg
Description

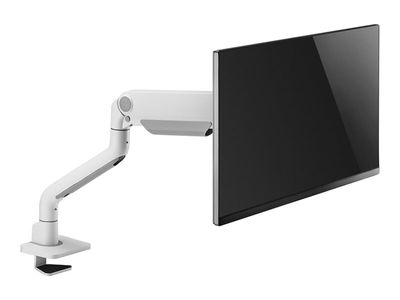

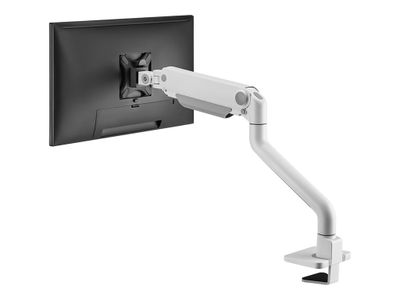

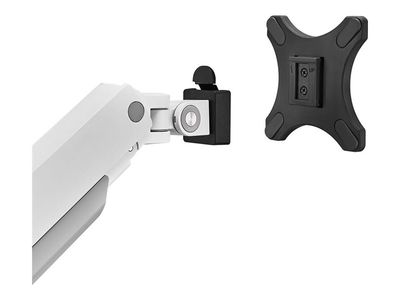

The Neomounts DS70S-950WH1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950WH1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position. The DS70S-950WH1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables. The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
  • Versatile adjustments
    Offering depth, height, rotation, swivel, and tilt adjustments, this mounting kit provides the flexibility to position your monitor exactly where you need it, enhancing ergonomics and comfort at your workstation.
  • Smart cable management
    Equipped with a Smart Cable Management System, this mounting kit ensures your workspace remains tidy and free of cable clutter, contributing to a more organized and productive environment.
  • Durable construction
    Crafted from high-quality aluminum, the DS70S-950WH1 mounting kit is designed for durability and long-lasting use, supporting monitors from 17" to 49" and weighing between 1 kg and 18 kg.
  • Full-motion design
    The full-motion design allows for a 360° rotation and a swivel range of -90° to 90°, offering flexibility to view your monitor from any angle.
  • Easy installation

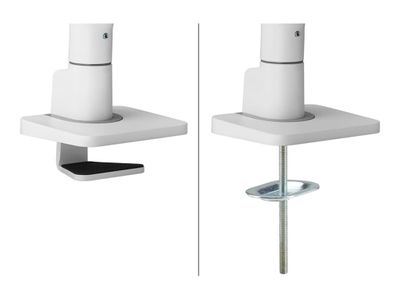

    With included desk clamp and grommet mount, this mounting kit offers versatile installation options to fit various desk setups, making it easy to secure your monitor in place.
