Neomounts DS70-450WH1 mounting kit - full-motion - for LCD display - white

Article-No.:
216102
Manufacturer-No.:
DS70-450WH1
EAN/GTIN:
8717371449483
Technical specifications

General

Packaged Quantity
1

AV Furniture

Type
Mounting kit
Color
White
Recommended Display Size
17"-42"
Mounting Components
Articulating arm, Topfix clamp, Grommet clamp
Recommended Display Size (metric)
43.2-106.7 cm
Tilt
-35° to 45°
Rotation
-180° to 180°
Cable Management
Integrated cable management
Adjustments
Height, Tilt, Swivel, Rotation, Width, Depth
Swivel
-90° to 90°
Placing / Mounting
Desktop

Dimensions & Weight

Width
11,5 cm
Depth
57,4 cm
Height
64,3 cm
Adjustable Height
33 cm
Adjustable Width
52 cm
Adjustable Depth
50 cm

Service & Support

Type
5-year warranty

Miscellaneous

Max Load Weight
15 kg
Color Category
White
Min Load Weight
1 kg
Description

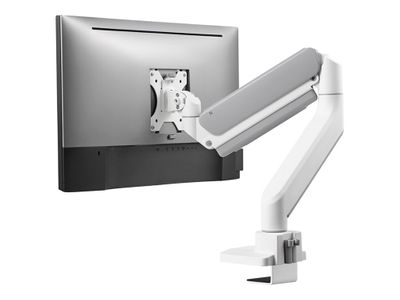

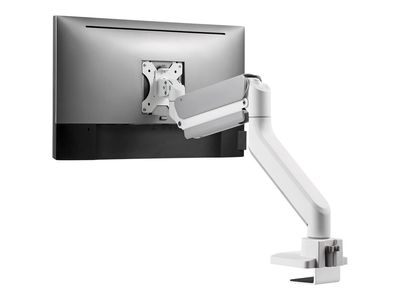

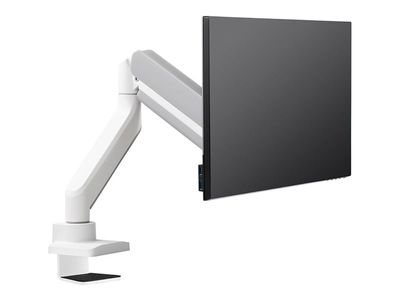

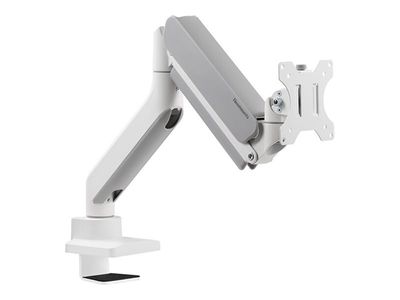

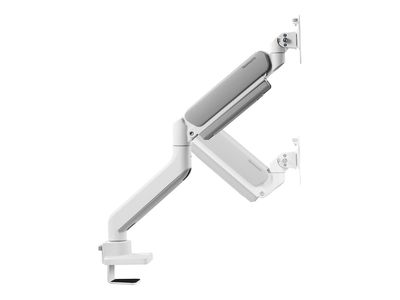

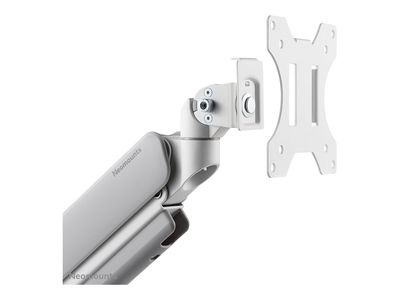

The Neomounts DS70-450WH1 NEXT Core is a full-motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26.1-55cm) and depth adjustment (0-51.4cm), to create the perfect working position. The DS70-450WH1 NEXT Core features the nifty 180° stop mechanism that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables. The DS70-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with a quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
  • Versatile adjustments
    Offering depth, height, rotation, swivel, tilt, and width adjustments, the DS70-450WH1 mounting kit provides flexibility for positioning your LCD display exactly where you need it, ensuring optimal viewing angles and comfort.
  • Effortless cable management

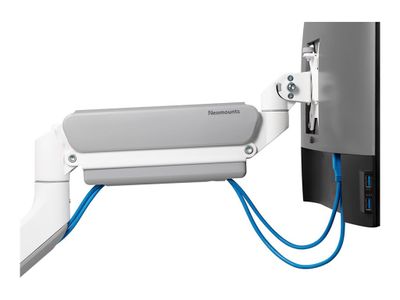

    With integrated cable management, this mounting kit keeps cables neatly organized, reducing clutter and maintaining a clean, professional appearance on your desktop.
  • Robust design
    Designed for full-motion, the DS70-450WH1 features an articulating arm, grommet clamp, and topfix clamp, allowing for easy placement and secure mounting on desktops, suitable for LCD displays ranging from 17"-42".
  • Precision engineering
    Equipped with a gas spring lift and capable of supporting displays weighing between 1 kg and 15 kg, this mounting kit combines ease of adjustment with the strength to hold your display securely.
  • Comprehensive compatibility
    The DS70-450WH1 is compatible with flat panel mount interfaces of 100 x 100 mm and 75 x 75 mm, ensuring a wide range of LCD displays can be accommodated.
