Product content
Product content

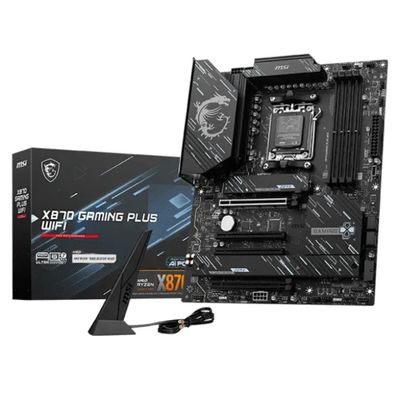

- MSI X870 GAMING PLUS WIFI
- 2 x Serial ATA cable
- Wi-Fi aerial, EZ M.2 clip, EZ M.2 clip remover, 1 to 2 EZ Conn-Cable
- Software
/asset/b/1/1/2/b112244eb2eb287d9058c5d1757bbdfd5e5b0430_258658.jpg)
/asset/5/d/0/6/5d06411ae4296ec9d2abd594c5ea9577d9f779ac_258658_2.jpg)
/asset/2/2/5/c/225c022902284c606b5816615d7149018a5b1491_258658_3.jpg)
/asset/3/0/d/3/30d382ab02b7a5e87f09fd8d8526094741fce6f7_258658_4.jpg)
/asset/b/1/1/2/b112244eb2eb287d9058c5d1757bbdfd5e5b0430_258658.jpg)
/asset/5/d/0/6/5d06411ae4296ec9d2abd594c5ea9577d9f779ac_258658_2.jpg)
/asset/2/2/5/c/225c022902284c606b5816615d7149018a5b1491_258658_3.jpg)
/asset/3/0/d/3/30d382ab02b7a5e87f09fd8d8526094741fce6f7_258658_4.jpg)
Please login to see the price and order.
Article-No.:
258658
Manufacturer-No.:
7E47-004R
EAN/GTIN:
4711377281201
WEEE Nummer
DE14287349
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Chipset Type
AMD X870
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
3200 MHz, 4100 Mhz (O.C), 2400 MHz, 2800 MHz (O.C.)
Processor Socket
Socket AM5
I/O Controller
Nuvoton NCT6687-R
Power Connectors
8-pin PCI Express power connector, 24-pin main power connector, 2 x 8-pin ATX12V connectors
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB 3.2 Gen 1 - header, 1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 4 x USB 2.0 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Dual channel memory architecture
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC897
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet
Network Controller
Realtek RTL8126VB
Network
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 5.0 x16, 2 x M.2 socket (2260/2280), 1 x M.2 socket (2280/22110), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1, PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2
Storage Ports
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)

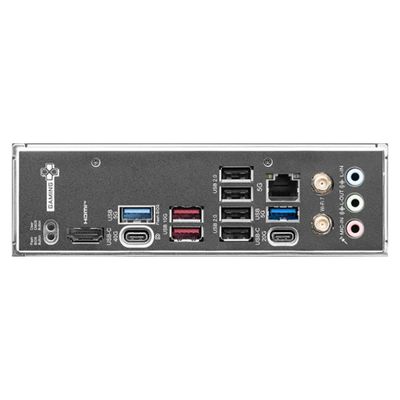

1 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, MSI App Player, Norton 360, Drivers & utilities, MSI CPU-Z
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description

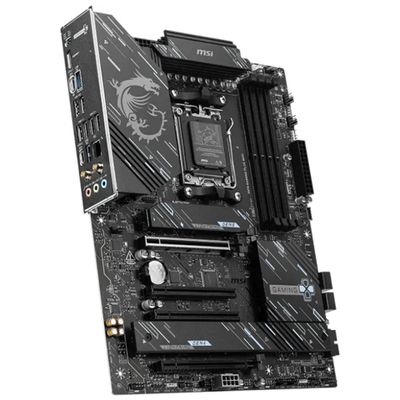

The MSI X870 GAMING PLUS WIFI motherboard is designed for high-performance gaming setups, featuring a robust ATX form factor and compatibility with AMD Ryzen 7000/8000/9000 Series processors. It supports DDR5 SDRAM with speeds up to 4100 MHz overclocked, ensuring excellent memory performance for demanding applications. Connectivity options are abundant with numerous USB ports, including USB-C and USB4, along with four SATA-600 ports and three M.2 sockets for versatile storage solutions. Equipped with advanced audio capabilities powered by the Realtek ALC897 codec, this motherboard delivers high-definition audio through eight channels. Enhance gaming experiences with MSI Mystic Light for customized aesthetics, and rely on features like MSI Audio Boost 5 to elevate sound quality. The inclusion of a Flash BIOS button and EZ Debug LED facilitates an easy setup and troubleshooting process, making it a great choice for DIY enthusiasts and gamers alike.
- Powerful performance
The motherboard is built with a 14+2+1 phase power design, ensuring stable power delivery and efficiency during intense gaming sessions. - Extensive connectivity
Equipped with multiple USB ports, including USB-C and USB4, along with four SATA-600 and three M.2 sockets for a wide range of storage options. - High-quality audio
Features high-definition audio with eight-channel support powered by the Realtek ALC897 codec, designed to enhance the overall sound experience. - Enhanced cooling solutions
Incorporates advanced cooling features like the M.2 Shield FROZR and Extended Heatsink Design to maintain temperatures for optimal performance. - Intuitive interface
Includes a Flash BIOS button and EZ Debug LED for easy updates and troubleshooting, making installation and maintenance straightforward.
