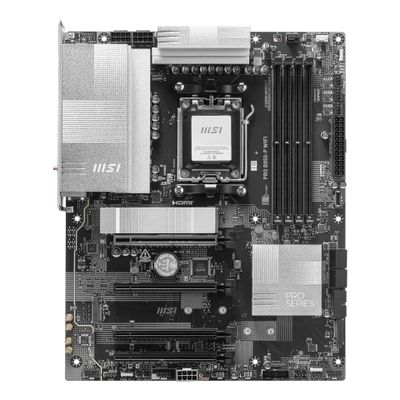

MSI PRO B850-P WIFI - motherboard - ATX - Socket AM5 - AMD B850

MSI PRO B850-P WIFI - motherboard - ATX - Socket AM5 - AMD B850_thumb_3

MSI PRO B850-P WIFI - motherboard - ATX - Socket AM5 - AMD B850_1

MSI PRO B850-P WIFI - motherboard - ATX - Socket AM5 - AMD B850_2

MSI PRO B850-P WIFI - motherboard - ATX - Socket AM5 - AMD B850_3

Article-No.:

261172

Manufacturer-No.:

7E56-002R

EAN/GTIN:

4711377286046

WEEE Nummer

DE14287349

Compare

Print view

Technical specifications

General

Packaged Quantity

Processor

Installed Qty

Max Supported Qty

Mainboard

Form Factor

ATX

Compatible Processors

Ryzen

Chipset Type

AMD B850

Supported RAM Technology

DDR5 SDRAM

Supported RAM Integrity Check

Non-ECC, On-die ECC

Supported RAM Speed

2400 MHz, 2800 MHz (O.C.), 4200 MHz (O.C.)

Processor Socket

Socket AM5

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Supported RAM (Registered or Buffered)

Unbuffered

RAM Slots

4 DIMM slots

Interfaces

Internal Interfaces

1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header

RAM

Features

AMD EXPO technology, Dual channel memory architecture

Max Supported Size

256 GB

Video Output

Type

Graphics adapter (CPU required)

Audio Output

Type

Sound card

Compliant Standards

High Definition Audio

Audio Codec

Realtek ALC897

Audio

High Definition Audio (8-channel)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet

Network Controller

Realtek RTL8126VB

Network

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet

Expansion Slots

1 x CPU, 1 x PCIe 5.0 x16, 2 x M.2 socket (2260/2280 M.2 Key M slot), 1 x M.2 socket (2280/22110 M.2 Key M slot), 1 x PCIe 3.0 x16, 4 x DIMM 288-pin, 1 x PCIe 3.0 x16 (x1 mode), 1 x PCIe 4.0 x16 (x4 mode)

Interfaces

Storage Interfaces

PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1, PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1, SATA-600 -connectors: 4 x 7pin Serial ATA

Storage

Serial ATA-600 (RAID), M.2 socket

USB / FireWire

USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2

Storage Ports

4 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports Configuration (Active)

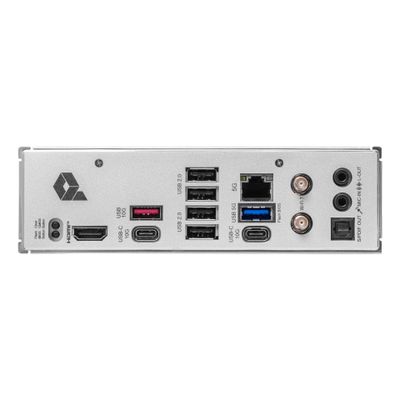

2 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0

USB / FireWire Ports Configuration (Headers)

1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0

Dimensions & Weight

Width

30,48 cm

Depth

24,384 cm

Description

Experience high-performance computing with the MSI PRO B850-P WIFI motherboard, designed to support AMD Ryzen series processors. This motherboard features capabilities including support for DDR5 SDRAM with a dual-channel memory architecture, and the ability to enhance memory speeds for optimal performance. It is equipped with four DIMM slots, and its compatibility extends to Ryzen 7000/8000/9000 Series processors, providing flexibility for upgrading systems. Its robust power design ensures stability during high-intensity tasks while maintaining efficiency.

Efficient Power Design
The MSI PRO B850-P WIFI features a 12+2+1 phase power design which provides stable power delivery for improved performance and reliability under heavy workloads.
Advanced Connectivity Options
This motherboard supports 5 Gigabit Ethernet and features Wi-Fi 6E, allowing for high-speed Internet access and robust networking capabilities.
Enhanced Audio Experience
With high definition audio support and a Realtek ALC897 audio codec, users can enjoy impressive sound quality for gaming and multimedia applications.
Versatile Storage Solutions
The MSI PRO B850-P WIFI includes multiple storage interfaces, featuring 4 x SATA-600 ports and 3 M.2 slots, enabling various configurations for data storage.
Stable Memory Performance
Supports DDR5 RAM with speeds of up to 4200 MHz (O.C.), allowing for quick data access and improved overall system efficiency.

Product content

MSI PRO B850-P WIFI
Serial ATA cable
EZ Wi-Fi antenna, EZ M.2 clip II remover, EZ M.2 clip II
