Please login to see the price and order.
Article-No.:
261205
Manufacturer-No.:
7E59-004R
EAN/GTIN:
4711377291927
WEEE Nummer
DE14287349
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Chipset Type
AMD X870E
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
8400 MHz (O.C.)
Processor Socket
Socket AM5
I/O Controller
Nuvoton NCT6687-R
Power Connectors
8-pin PCI Express power connector, 24-pin main power connector, 2 x 8-pin ATX12V connectors
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header, 1 x audio - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Dual channel memory architecture
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC4080
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network Controller
Realtek RTL8126CG
Network
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 5.0 x16, 1 x M.2 socket (2280/22110), 3 x M.2 socket (2260/2280), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16 (x4 mode)
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 4 x 7pin Serial ATA
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
Storage Ports
4 x SATA-600 (RAID), 4 x M.2
USB / FireWire Ports Configuration (Active)

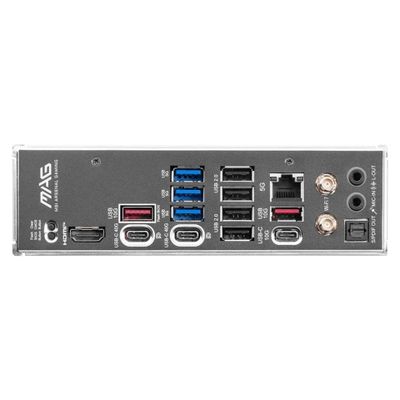

2 x USB4 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, MSI App Player, Norton 360, Drivers & utilities, MSI CPU-Z
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description

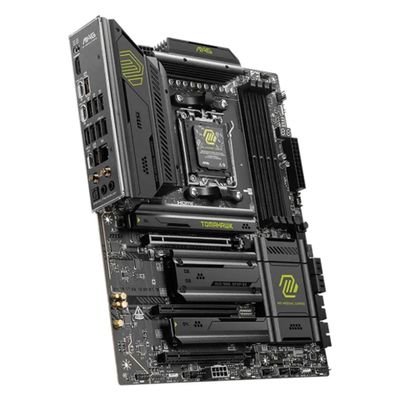

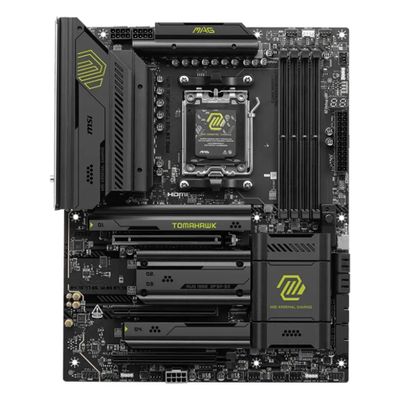

The MSI MAG X870E TOMAHAWK WIFI motherboard features a robust design tailored for high-performance computing. With support for AMD Ryzen 7000/8000/9000 Series processors, this board is equipped with Socket AM5 alongside four DIMM slots, allowing for flexible memory configurations with speeds up to 8400 MHz (O.C.). Its 14+2+1 Phase Power Design ensures stable connections, making it an ideal choice for gamers and content creators seeking reliability and performance. The inclusion of MSI Mystic Light and Easy Debug LED enhances functionality and visual appeal.
Connectivity is a key highlight, featuring multiple USB options, including USB 4 and USB-C 3.2 Gen 2. The motherboard also includes four SATA ports and four M.2 slots for expansive storage solutions. With dual-channel memory architecture and support for high definition audio through the Realtek ALC4080 codec, users can enjoy great sound quality across applications. The board also benefits from advanced cooling features, such as Frozr AI Cooling and an Extended Heatsink Design, ensuring optimal thermal management during intense usage.
Connectivity is a key highlight, featuring multiple USB options, including USB 4 and USB-C 3.2 Gen 2. The motherboard also includes four SATA ports and four M.2 slots for expansive storage solutions. With dual-channel memory architecture and support for high definition audio through the Realtek ALC4080 codec, users can enjoy great sound quality across applications. The board also benefits from advanced cooling features, such as Frozr AI Cooling and an Extended Heatsink Design, ensuring optimal thermal management during intense usage.
- Reliable performance
The motherboard boasts a 14+2+1 Phase Power Design ensuring stable power delivery, which is crucial for maintaining performance during demanding tasks. - Flexible connectivity
With four SATA ports and four M.2 sockets, this motherboard provides extensive options for storage expansion, making it suitable for various users' needs. - Cooling solutions
Frozr AI Cooling technology and an Extended Heatsink Design work together to keep vital components at optimal temperatures, promoting longevity and performance. - Enhanced audio quality
High definition audio is supported through the Realtek ALC4080 codec, ensuring an immersive audio experience across all applications. - User-friendly design features
The motherboard includes EZ M.2 Clip II and EZ PCIe Release for straightforward installation and upgrades, catering to both novices and experienced builders.
