Product content

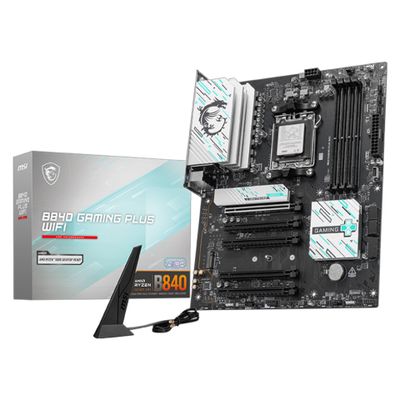

Product content

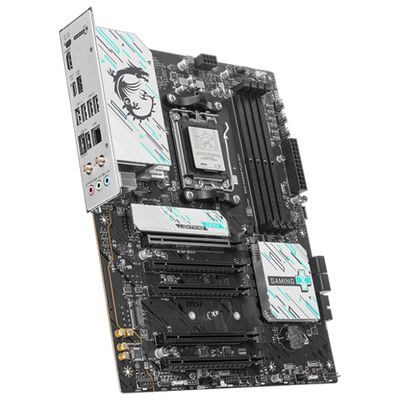

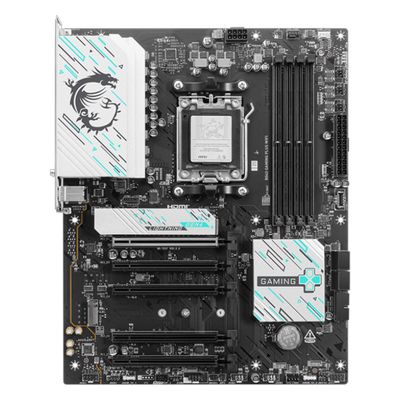

- MSI B840 GAMING PLUS WIFI
- Serial ATA cable
- EZ Wi-Fi antenna, 1 to 2 EZ Conn-Cable, EZ M.2 clip II remover, EZ M.2 clip II
/asset/7/2/2/f/722f5f9049fe683bcfb7c7b1788831ab09084e0b_261169.jpg)
/asset/d/8/8/3/d883cb3628773db9e825b97da89173ab78b247f2_261169_2.jpg)
/asset/c/0/c/3/c0c3cb5c5637ec10040f241f7c242fa4de1ddf58_261169_3.jpg)
/asset/c/4/f/6/c4f6d7413216eeb3f1cc0e259179398b69743453_261169_4.jpg)
/asset/7/2/2/f/722f5f9049fe683bcfb7c7b1788831ab09084e0b_261169.jpg)
/asset/d/8/8/3/d883cb3628773db9e825b97da89173ab78b247f2_261169_2.jpg)
/asset/c/0/c/3/c0c3cb5c5637ec10040f241f7c242fa4de1ddf58_261169_3.jpg)
/asset/c/4/f/6/c4f6d7413216eeb3f1cc0e259179398b69743453_261169_4.jpg)
Please login to see the price and order.
Article-No.:
261169
Manufacturer-No.:
7E57-002R
EAN/GTIN:
4711377286589
WEEE Nummer
DE14287349
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Compatible Processors
Ryzen
Chipset Type
AMD B840
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, On-die ECC
Supported RAM Speed
2400 MHz, 2800 MHz (O.C.), 4000 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Dual channel memory architecture
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC897
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller
Realtek RTL8125BG
Network
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Expansion Slots
Expansion Slots
1 x CPU, 1 x M.2 socket (2260/2280 M.2 Key M slot), 3 x PCIe 3.0 x16 (x1 mode), 1 x M.2 socket (2260/2280/22110 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 4.0 x16
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1, PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1, SATA-600 -connectors: 4 x 7pin Serial ATA
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2
Storage Ports
4 x SATA-600 (RAID), 2 x M.2

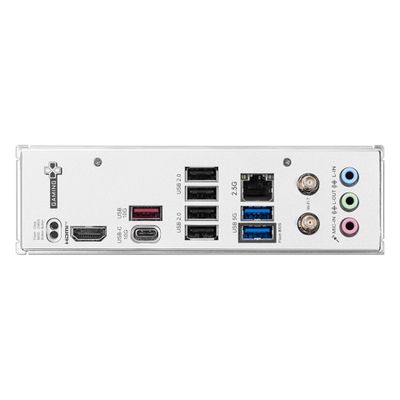

USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
Dimensions & Weight
Width
30,48 cm
Depth
24,384 cm
Description
The MSI B840 GAMING PLUS WIFI motherboard is designed for gamers and high-performance users alike. With support for AMD Ryzen processors and DDR5 SDRAM, this motherboard delivers speed and stability, ensuring that every gaming session is smooth and responsive. Equipped with advanced audio features, including high definition audio with an 8-channel capability, the MSI Audio Boost technology enhances the gaming experience, delivering clear and immersive sound. Connectivity includes multiple USB ports, such as USB 3.2 Gen 2 and USB-C options, alongside high-speed LAN with 2.5 Gigabit Ethernet and support for Wi-Fi 7. Whether gaming, streaming, or multitasking, the motherboard ensures fast data transfer and seamless online experiences. The EZ Debug LED and MSI ClickBIOS provide user-friendly interfaces that simplify setup and troubleshooting, making this motherboard a reliable choice for gamers looking to elevate their build.
- Robust compatibility
Designed to support AMD Ryzen processors, the MSI B840 GAMING PLUS WIFI motherboard provides a solid foundation for high-performance builds, ensuring compatibility with current AMD technology. - Enhanced audio experience
With high definition audio and an 8-channel setup, this motherboard enhances overall audio quality, perfect for gaming and multimedia applications. - Extensive connectivity options
Offering a variety of ports, including USB 3.2 Gen 2 and USB-C, as well as HDMI and 2.5 Gigabit Ethernet, this motherboard ensures fast data transfers and versatile connectivity. - Optimized power design
Featuring a 12+2+1 phase power design and an extended heatsink, the MSI B840 GAMING PLUS WIFI offers stable power delivery and cooling for high-performance components.
