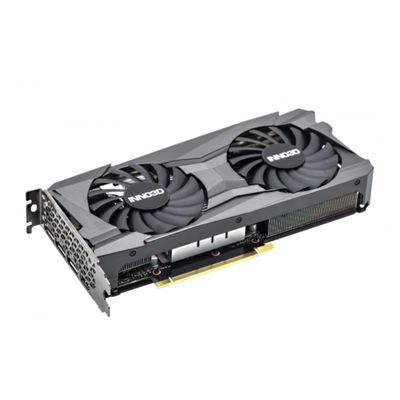

Inno3D graphics card GeForce RTX 3060 TWIN X2 - 12 GB GDDR6

Inno3D graphics card GeForce RTX 3060 TWIN X2 - 12 GB GDDR6_1

Inno3D graphics card GeForce RTX 3060 TWIN X2 - 12 GB GDDR6_2

Article-No.:

215443

Manufacturer-No.:

N30602-12D6-119032AH

EAN/GTIN:

0835168002111

Compare

Print view

Technical specifications

General

Packaged Quantity

Video Output

Interface Type

PCI Express 4.0 x16

Graphics Processor

NVIDIA GeForce RTX 3060

Max External Resolution

7680 x 4320

Max Monitors Supported

API Supported

DirectX 12 Ultimate, Vulkan, OpenGL 4.6

Video Adapter Features

Nvidia DLSS, Nvidia Studio, NVIDIA Ampere GPU technology, NVIDIA Reflex, NVIDIA FreeStyle, 2nd Gen Ray Tracing, 3rd gen Tensor Cores, Dual Fan Design, NVIDIA GPU Boost, NVIDIA G-Sync ready, 2-slot Fan Cooler, NVIDIA Ansel, Real-Time Ray Tracing, NVIDIA Highlights, Inno3D backplate

Clock Speed

1320 MHz

Graphics Processor Manufacturer

NVIDIA

HDCP Compatible

Type

Graphics card

CUDA Cores Qty

3584

Output Ports (compact list)

HDMI, 3 x DisplayPort

Supported Video Signal

HDMI, DisplayPort

Boost Clock Speed

1777 MHz

Video Memory

Technology

GDDR6 SDRAM

Bus Width

192-bit

Bandwidth

360 GBps

Installed Size

12 GB

Interfaces

Interfaces Details

HDMI, 3 x DisplayPort

System Requirements

Additional Requirements

8 pin PCI Express power connector

OS Required

Linux, FreeBSD (32-bit), Windows 10

Required Power Supply

550 W

Dimensions & Weight

Depth

24 cm

Height

12 cm

Miscellaneous

Package Type

Retail

Color Category

Black, Gray

Description

The NVIDIA GeForce RTX 30 Series GPUs, the 2nd generation of RTX, features RT Cores, Tensor Cores and streaming multiprocessors, bringing stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications. Powered by the NVIDIA Ampere architecture, which delivers increases of up to 1.9X performance-per-watt over the previous generation, the RTX 30 Series effortlessly powers graphics experiences at all resolutions, even up to 8K at the top end.
