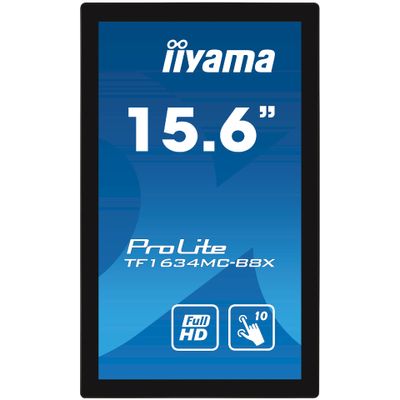

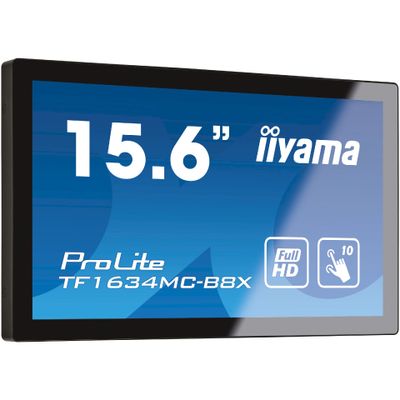

iiyama ProLite TF1634MC-B8X - LED monitor - Full HD (1080p) - 15.6"

iiyama ProLite TF1634MC-B8X - LED monitor - Full HD (1080p) - 15.6"_thumb_1
iiyama ProLite TF1634MC-B8X - LED monitor - Full HD (1080p) - 15.6"_thumb_2
iiyama ProLite TF1634MC-B8X - LED monitor - Full HD (1080p) - 15.6"_thumb_3
iiyama ProLite TF1634MC-B8X - LED monitor - Full HD (1080p) - 15.6"_thumb_4
iiyama ProLite TF1634MC-B8X - LED monitor - Full HD (1080p) - 15.6"_thumb_5
iiyama ProLite TF1634MC-B8X - LED monitor - Full HD (1080p) - 15.6"_1
iiyama ProLite TF1634MC-B8X - LED monitor - Full HD (1080p) - 15.6"_2
iiyama ProLite TF1634MC-B8X - LED monitor - Full HD (1080p) - 15.6"_3
iiyama ProLite TF1634MC-B8X - LED monitor - Full HD (1080p) - 15.6"_4
iiyama ProLite TF1634MC-B8X - LED monitor - Full HD (1080p) - 15.6"_5
Article-No.:
159052
Manufacturer-No.:
TF1634MC-B8X
EAN/GTIN:
4948570118342
Compare
Print view

Similar products

Technical specifications

Description

Technical specifications

General

Packaged Quantity
1

Display

Form Factor
Open frame
Diagonal Size
15,6 in
Pixel Pitch
0,1793 mm
Native Resolution
1920 x 1080
V-Sync Rate at Max Res.
60 Hz
Technology
TFT active matrix
Image Brightness
450 cd/m²
Image Contrast Ratio
700:1
OSD Languages
English, German, French, Italian, Spanish, Japanese, Chinese
Response Time
25 ms
Display Screen Coating
7H Hard Coating
TFT Technology
IPS
Diagonal Size (metric)
39,5 cm
Color Support
16.2 million colors
Type
LED-backlit LCD monitor
Vertical Refresh Rate
56 - 76 Hz
Horizontal Refresh Rate
30 - 84 kHz
Touchscreen
Yes (10-point multi-touch)
Image Aspect Ratio
16:9
Video Format
Full HD (1080p)

Audio Output

Type
None

Input Device

Type
Touchscreen

Interfaces

Interfaces
VGA, USB, HDMI, DisplayPort

Power Device

Power Consumption Operational
18 Watt
Frequency Required
50/60
Nominal Voltage
AC 100 - 240 V
Power Consumption Stand by
1,5 Watt
Power Consumption (Off Mode)
0,3 Watt

Power

Energy Class
Class F
Power Consumption (On mode)
12,4 W

Dimensions & Weight

Width
38,1 cm
Depth
4,6 cm
Height
235 cm
Weight
2 kg

Dimensions & Weight (Shipping)

Shipping Width
45,5 cm
Shipping Depth
29 cm
Shipping Height
36,5 cm
Shipping Weight
6,6 kg

Miscellaneous

Color
Black / Matte
Features
VESA interface support, 90% light transmittance
Color Category
Black
Description
The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colors and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.
  • Full HD
    With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
  • Touch technology - capacitive
    This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
  • IPS technology
    IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
  • Code IP
    The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
  • Touch Through-Glass
    This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
