Article-No.:

252901

Manufacturer-No.:

2703

EAN/GTIN:

4250058527035

Compare

Print view

Technical specifications

General

Packaged Quantity

AV Furniture

Type

Mounting kit

Color

Black

Recommended Display Size

55"-75"

Mounting Components

Ceiling mount

Recommended Display Size (metric)

140-191 cm

Tilt

-5° to 30°

Lift

30 cm

Cable Management

Internal cable management

Adjustments

Height, Tilt, Swivel

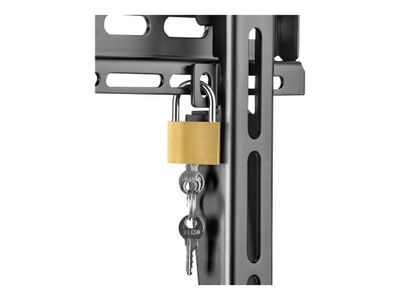

Lockable

Swivel

-15° to 15°

Miscellaneous

Max Load Weight

50 kg

Color Category

Black

Description

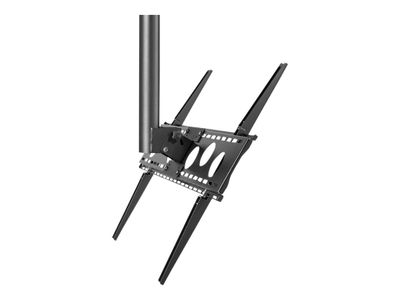

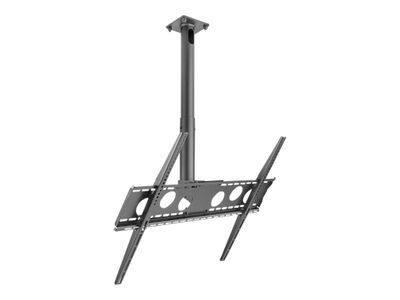

The HA DH 400-700 L is a ceiling mount for a single screen with a 55" to 75" (140-191 cm) screen diagonal. It can be mounted in either landscape or portrait orientation.
A VESA mount is already included and can be fitted from min. 100 x 100 mm to max. 800 x 600 mm.
The tilt angle of the TV mount can be adjusted between -5° and +30° without tools using the side turning handles.
Thanks to the lateral slotted hole in the lower tube segment, the mount can be swiveled by ±15° on the installation side to compensate for slight differences, e.g. in the event of incorrect drilling.
The ceiling distance can be varied in 100 mm increments between min. 438 mm and max. 738 mm. This specification refers to the center of the screen.
Cables are routed internally, concealed from view and unwanted access.
A cover ring for suspended ceilings is included in the scope of delivery and ensures a clean appearance.
The surfaces of the HA DH 400-700 L are finished with an impact- and scratch-resistant black powder coating.
The maximum load capacity is 50 kg.
