Article-No.:
228617
Manufacturer-No.:
B650 GAMING X AX V2
EAN/GTIN:
4719331860073
WEEE Nummer
DE74106091
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Compatible Processors
Ryzen
Chipset Type
AMD B650
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 4400 MHz, 7200 MHz (O.C.), 5200 MHz, 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C Gen 2x2 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size
192 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Network Controller
AMD RZ616 (MT7922A22M)
Network
2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion Slots
Expansion Slots
1 x CPU, 2 x PCIe 3.0 x16 (x1 mode), 3 x M.2 socket (2280/25110 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 4.0 x16
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
Storage Ports
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)

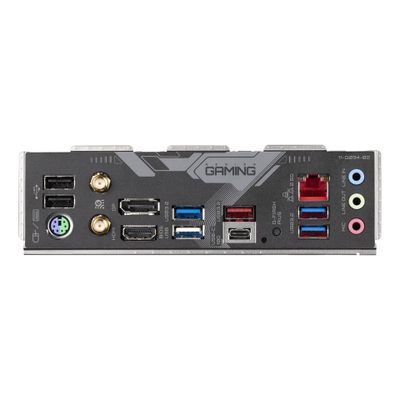

1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 3 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description

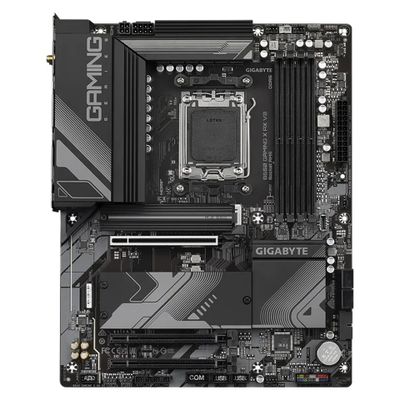

The GIGABYTE B650 GAMING X AX V2 motherboard is designed to meet the demands of gamers and PC enthusiasts alike. With support for Ryzen 7000/8000 Series processors, this motherboard ensures compatibility with advanced technology, providing a foundation for powerful, high-performance builds. It features DDR5 SDRAM support with speeds up to 8000 MHz (O.C.), enabling faster data processing and an enhanced gaming experience. The inclusion of HDMI, DisplayPort, and USB-C 3.2 Gen 2 ports offers versatile connectivity options for a wide array of devices. High definition audio with 8-channel support delivers a rich, detailed sound landscape, further immersing you in your games and media. Advanced cooling technologies, including GIGABYTE Smart Fan 6 and an enlarged heatsink armor, ensure your system remains cool and stable under pressure. Additionally, with Wi-Fi 6E and Bluetooth 5.2, you can expect a fast, reliable network connection, whether you're gaming online or transferring files. This motherboard combines performance, connectivity, and audiovisual excellence, making it an ideal choice for building a high-end PC.
- Enhanced connectivity
With a comprehensive suite of interfaces including HDMI, DisplayPort, USB-C 3.2 Gen 2, and more, this motherboard offers versatile connectivity options for a wide range of peripherals and devices, ensuring you're always connected. - Robust audio experience
Equipped with high definition audio and 8-channel support, this motherboard delivers a rich, immersive sound experience, enhancing your games, movies, and music with clear, precise sound. - Advanced cooling
Featuring GIGABYTE Smart Fan 6 technology alongside an enlarged heatsink armor, this motherboard is designed to efficiently dissipate heat, ensuring optimal performance and stability even under high workloads. - High-speed memory support
Supporting DDR5 SDRAM with speeds up to 8000 MHz (O.C.), this motherboard allows for ultra-fast data transfer and bandwidth, enabling smoother multitasking and enhanced system responsiveness. - Next-gen networking
With 2.5 Gigabit Ethernet, Bluetooth 5.2, and Wi-Fi 6E support, this motherboard offers fast network speeds and improved wireless connectivity, ensuring you stay ahead in both wired and wireless environments.
