Article-No.:

260869

Manufacturer-No.:

B860M GAMING X WIFI6E

EAN/GTIN:

4719331867133

WEEE-No.

DE74106091

Compare

Print view

Technical specifications

General

Packaged Quantity

Processor

Installed Qty

Max Supported Qty

Mainboard

Form Factor

ATX

Chipset Type

AMD B850

Supported RAM Technology

DDR5 SDRAM

Supported RAM Integrity Check

Non-ECC, ECC (operate in non-ECC mode)

Supported RAM Speed

3200 MHz, 3900 MHz (O.C.), 4100 Mhz (O.C), 3950 MHz (O.C.), 3975 MHz (O.C.), 2800 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 3700 MHz (O.C.), 4600 MHz (O.C.)

Processor Socket

LGA1851 Socket

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Supported RAM (Registered or Buffered)

Unbuffered

RAM Slots

4 DIMM slots

Interfaces

Internal Interfaces

1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header

RAM

Features

Intel Extreme Memory Profiles (XMP), Dual channel memory architecture

Max Supported Size

256 GB

Video Output

Type

Graphics adapter (CPU required)

Audio Output

Type

Sound card

Compliant Standards

High Definition Audio

Audio

High Definition Audio (8-channel)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g

Network Controller

Intel AX211 / Realtek RTL8852CE

Network

Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Gigabit Ethernet

Bluetooth

Expansion Slots

1 x CPU, 1 x PCIe 5.0 x16, 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 4.0 x1

Interfaces

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 1 x M.2

Storage

Serial ATA-600 (RAID), M.2 socket

USB / FireWire

USB 3.2 Gen 1, USB4, USB-C 3.2 Gen2

Storage Ports

4 x SATA-600 (RAID), 1 x M.2

USB / FireWire Ports Configuration (Active)

1 x USB4 + 3 x USB 3.2 Gen 1 + 5 x USB 2.0

USB / FireWire Ports Configuration (Headers)

1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0

Software

Software Included

Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control

Dimensions & Weight

Width

24,4 cm

Depth

24,4 cm

Description

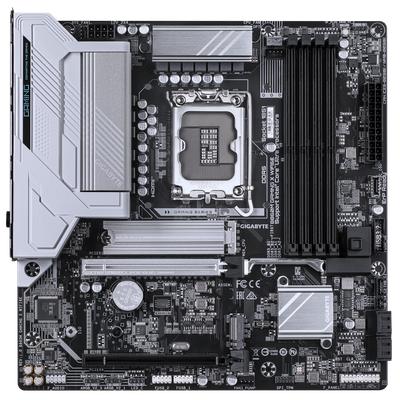

The GIGABYTE B860M GAMING X WIFI6E motherboard is designed for performance and compatibility, featuring a robust architecture that supports Intel Core Ultra processors. It offers an array of connectivity options, including USB standards and extensive expansion slots, allowing for customization and upgrades to meet the demands of modern computing. This motherboard supports high-speed DDR5 SDRAM and advanced BIOS capabilities for enhanced system management. With comprehensive hardware monitoring and a DIY-friendly design, it caters to both novice and seasoned builders looking for stability and performance.

Robust connectivity options

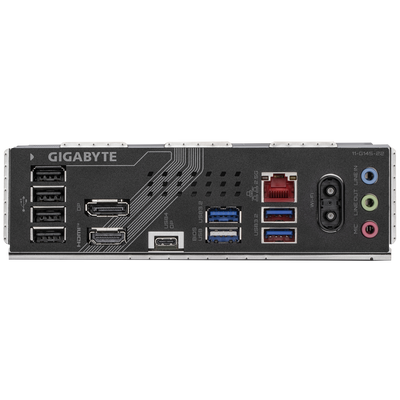

The motherboard provides a variety of ports, including multiple USB 2.0, USB 3.2 Gen 1, USB4, HDMI, and DisplayPort, ensuring compatibility with various peripherals and devices.
High-speed memory support
Compatible with DDR5 SDRAM, the motherboard supports RAM speeds ranging from 2800 MHz to 4600 MHz (overclocking), enhancing system performance for demanding applications.
Efficient power design
With an 8+1+2 phase power design, this motherboard ensures stable power delivery to the CPU and components, essential for maintaining peak performance under load.
Advanced BIOS features
Includes an AMI UEFI BIOS with support for various monitoring features and optimizations, providing users with a comprehensive toolset for system management and customization.
Versatile storage solutions
Equipped with multiple storage interfaces including RAID support, M.2 sockets, and Serial ATA-600, allowing for flexible and high-speed storage configurations.
