Please login to see the price and order.
Article-No.:
260862
Manufacturer-No.:
B860 GAMING X WIFI6E
EAN/GTIN:
4719331866532
WEEE-No.
DE74106091
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
3200 MHz, 3900 MHz (O.C.), 4100 Mhz (O.C), 3950 MHz (O.C.), 3975 MHz (O.C.), 2800 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 3700 MHz (O.C.), 4533 MHz (O.C.)
Processor Socket
LGA1851 Socket
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
2 x USB 3.2 Gen 2 - header, 1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 1 x SPI - header
RAM
Features
Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g
Network Controller
Intel AX211 / Realtek RTL8852CE
Network
Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 5.0 x16, 2 x M.2 socket (22110/2280), 4 x DIMM 288-pin, 2 x PCIe 4.0 x1
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 2 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4
Storage Ports
4 x SATA-600 (RAID), 2 x M.2

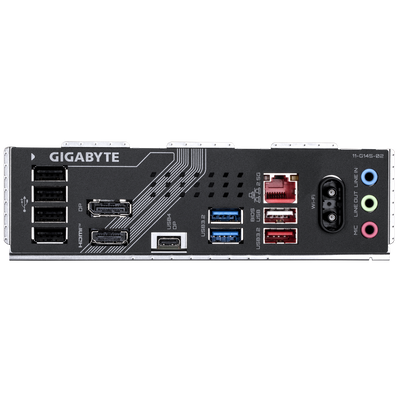

USB / FireWire Ports Configuration (Active)
1 x USB4 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 5 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 2.0
Software
Software Included
Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description

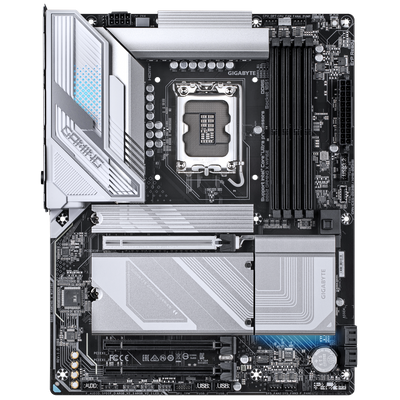

The GIGABYTE B860 GAMING X WIFI6E motherboard combines advanced features with a robust design, making it suitable for gaming and demanding applications. This ATX form factor motherboard is equipped with an AMD B850 chipset and is designed to support Intel Core Ultra processors, ensuring compatibility with high-performance CPUs. The board features high-speed connectivity options including USB4 and multiple USB 3.2 Gen ports, while its support for DDR5 SDRAM enhances memory speed and bandwidth for intensive tasks.
An array of expansion slots, including PCIe 5.0 x16, facilitates upgrades and the integration of additional components. With support for high definition audio and multiple video output options, this motherboard provides an immersive audiovisual experience. Advanced monitoring features, like system voltage and temperature detection, allow users to ensure optimal performance and stability under load, bolstering the overall reliability of the system.
An array of expansion slots, including PCIe 5.0 x16, facilitates upgrades and the integration of additional components. With support for high definition audio and multiple video output options, this motherboard provides an immersive audiovisual experience. Advanced monitoring features, like system voltage and temperature detection, allow users to ensure optimal performance and stability under load, bolstering the overall reliability of the system.
- Versatile expansion slots
Featuring a total of 4 expansion slots, including PCIe 5.0 x16 and M.2 sockets, the motherboard allows for extensive customization and future upgrades to meet various demands. - High-speed USB connectivity
Supports a range of USB interfaces including USB4, USB 3.2 Gen 2, and USB 3.2 Gen 1, ensuring fast data transfer rates and easy connection for peripherals and external devices. - Robust cooling solutions
Designed with 12+1+2 Phase Power Design and GIGABYTE Smart Fan 6 technology, the motherboard provides effective cooling to maintain optimal performance during extended gaming or intensive tasks. - Advanced networking capabilities
Incorporating Wi-Fi 6E with Bluetooth 5.3, this motherboard ensures high-speed wireless connectivity and supports modern networking protocols for seamless online experiences. - Support for high-performance memory
Compatible with DDR5 SDRAM and offering speeds up to 4400 MHz with overclocking options, it enables users to optimize memory performance for demanding applications.
