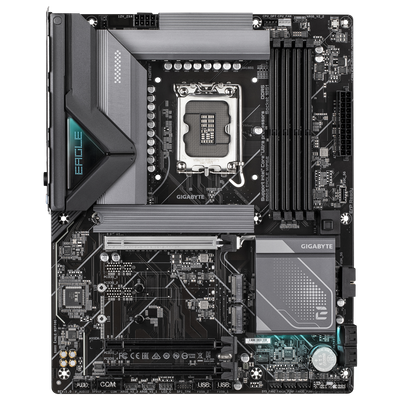

Gigabyte B860 EAGLE WIFI6E - motherboard - ATX - LGA1851 Socket - B860

Gigabyte B860 EAGLE WIFI6E - motherboard - ATX - LGA1851 Socket - B860_thumb_3

Gigabyte B860 EAGLE WIFI6E - motherboard - ATX - LGA1851 Socket - B860_1

Gigabyte B860 EAGLE WIFI6E - motherboard - ATX - LGA1851 Socket - B860_2

Gigabyte B860 EAGLE WIFI6E - motherboard - ATX - LGA1851 Socket - B860_3

Article-No.:

260863

Manufacturer-No.:

B860 EAGLE WIFI6E

EAN/GTIN:

4719331866822

WEEE-No.

DE74106091

Compare

Print view

Technical specifications

General

Packaged Quantity

Processor

Installed Qty

Max Supported Qty

Mainboard

Form Factor

ATX

Chipset Type

Intel B860

Supported RAM Technology

DDR5 SDRAM

Supported RAM Integrity Check

Non-ECC, ECC (operate in non-ECC mode)

Supported RAM Speed

3200 MHz, 3900 MHz (O.C.), 4100 Mhz (O.C), 3950 MHz (O.C.), 3975 MHz (O.C.), 2800 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 3700 MHz (O.C.), 4533 MHz (O.C.)

Processor Socket

LGA1851 Socket

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Supported RAM (Registered or Buffered)

Unbuffered

RAM Slots

4 DIMM slots

Interfaces

Internal Interfaces

1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header

RAM

Features

AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture

Max Supported Size

256 GB

Video Output

Type

Graphics adapter (CPU required)

Audio Output

Type

Sound card

Compliant Standards

High Definition Audio

Audio

High Definition Audio (8-channel)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet

Network Controller

Intel AX211 / Realtek RTL8852CE

Network

2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

Bluetooth

Expansion Slots

1 x CPU, 1 x PCIe 5.0 x16, 3 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 4.0 x1

Interfaces

Storage Interfaces

PCIe 4.0 -connectors: 2 x M.2, PCIe 5.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5

Storage

Serial ATA-600 (RAID), M.2 socket

USB / FireWire

USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1

Storage Ports

4 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports Configuration (Active)

1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 4 x USB 2.0

USB / FireWire Ports Configuration (Headers)

1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0

Software

Software Included

Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control

Dimensions & Weight

Width

30,5 cm

Depth

24,4 cm

Description

The GIGABYTE B860 EAGLE WIFI6E motherboard is engineered for those seeking performance and connectivity. Featuring Intel B860 chipset, this ATX form factor board supports up to 4 DIMM slots for DDR5 SDRAM, enabling rapid data processing and multitasking capabilities suitable for gaming, streaming, or professional work. With advanced memory technology supporting speeds from 2800 MHz to 4533 MHz (overclocked), it allows users to push their system to the limits, maximizing performance for any application. Connectivity is a hallmark of this motherboard, equipped with dual PCIe slots and multiple M.2 slots for optimal storage options. The integrated 2.5 Gigabit Ethernet and Wi-Fi 6E provide high-speed network access, ensuring smooth online experiences. The comprehensive range of USB ports including USB-C 3.2 Gen 2x2 enhances versatility for peripherals, while high-definition audio output ensures an immersive sound experience. This motherboard combines practicality with performance, making it an ideal choice for gamers and tech enthusiasts.

Robust memory capabilities
The GIGABYTE B860 EAGLE WIFI6E supports DDR5 SDRAM with speeds up to 4533 MHz overclocked, enabling users to tap into high-performance memory for intensive applications.
Flexible storage options
Featuring three M.2 slots and four SATA connectors, this motherboard accommodates extensive storage expansions to meet various data needs.
Advanced networking solutions
This motherboard includes 2.5 Gigabit Ethernet and Wi-Fi 6E support, ensuring fast and reliable connections for online gaming and streaming.
High-quality audio experience
Equipped with high definition audio and multiple audio inputs and outputs, users can enjoy a rich and immersive sound environment.
User-friendly design
Designed with a DIY-friendly layout, the GIGABYTE B860 EAGLE includes features like a pre-mounted I/O shield and easy-to-use M.2 slots for hassle-free installation.
