Product content
Product content
- Gigabyte B850 GAMING WIFI6
- 2 x Serial ATA cable
- G-Connector, rubber pad, Wi-Fi aerial, M.2 screw package
- Software
/asset/c/a/d/7/cad783f54a46c8f7236d5b73ea62a62fd70e2afa_259678.jpg)
/asset/8/e/8/e/8e8eb1fabdc3ac92ad9d3c787c109de79af124e9_259678_2.jpg)
/asset/b/a/a/6/baa679b174f35ddc75550a39ddcf6310ea36749f_259678_3.jpg)
/asset/f/5/d/6/f5d6ff552d9778a981006a810f20f7e4ebe0891b_259678_4.jpg)
/asset/c/a/d/7/cad783f54a46c8f7236d5b73ea62a62fd70e2afa_259678.jpg)
/asset/8/e/8/e/8e8eb1fabdc3ac92ad9d3c787c109de79af124e9_259678_2.jpg)
/asset/b/a/a/6/baa679b174f35ddc75550a39ddcf6310ea36749f_259678_3.jpg)
/asset/f/5/d/6/f5d6ff552d9778a981006a810f20f7e4ebe0891b_259678_4.jpg)
Please login to see the price and order.
Article-No.:
259678
Manufacturer-No.:
B850 GAMING WF6
EAN/GTIN:
4719331866631
WEEE Nummer
DE74106091
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Compatible Processors
Ryzen
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
3900 MHz (O.C.), 4100 Mhz (O.C), 2900 MHz (O.C.), 3950 MHz (O.C.), 3975 MHz (O.C.), 2400 MHz, 2200 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 3700 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Dual channel memory architecture
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.3, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g
Network Controller
Realtek RTL8851BE
Network
802.11a/b/g/n/ac/ax, Bluetooth 5.3, Gigabit Ethernet
Bluetooth
Expansion Slots
Expansion Slots
1 x CPU, 3 x PCIe 3.0 x16 (x1 mode), 1 x M.2 socket (22110/2280), 1 x PCIe x16, 4 x DIMM 288-pin
Interfaces
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 1 x M.2
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 1 x M.2
USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 2 +4 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description

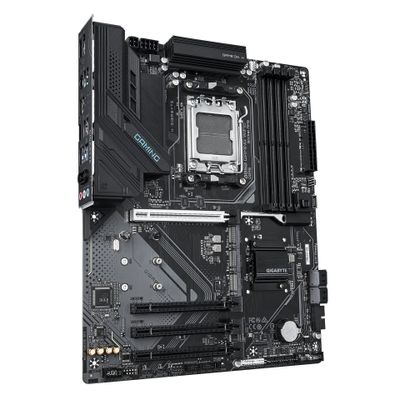

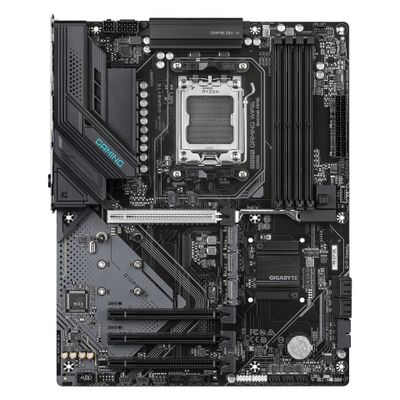

The GIGABYTE B850 GAMING WIFI6 motherboard offers performance and versatility for gamers and tech enthusiasts. Designed with the AMD B850 chipset and a Socket AM5 processor socket, it supports a range of Ryzen 7000/8000/9000 Series processors, ensuring compatibility and efficiency. With support for DDR5 SDRAM and overclocking capabilities up to 4100 MHz, it allows for multitasking and faster data processing, ideal for applications and gaming.
This motherboard integrates networking options, featuring Wi-Fi 6 and Bluetooth 5.3 for wireless connectivity. The range of USB ports, including USB-C and multiple USB 3.2 versions, provides extensive peripheral support. Additionally, the audio capabilities include high-definition audio and multiple audio ports, enhancing the multimedia experience. With a durable design, cooling features, and an easy-to-navigate BIOS, the GIGABYTE B850 GAMING WIFI6 is tailored for performance and reliability in gaming and professional environments.
This motherboard integrates networking options, featuring Wi-Fi 6 and Bluetooth 5.3 for wireless connectivity. The range of USB ports, including USB-C and multiple USB 3.2 versions, provides extensive peripheral support. Additionally, the audio capabilities include high-definition audio and multiple audio ports, enhancing the multimedia experience. With a durable design, cooling features, and an easy-to-navigate BIOS, the GIGABYTE B850 GAMING WIFI6 is tailored for performance and reliability in gaming and professional environments.
- Efficient power management
The motherboard is designed with a 6+2+2 Phase Power Design and includes a Premium Power Choke, ensuring stable power delivery and efficient management during high demand, which is crucial for maintaining system performance and longevity. - Extensive connectivity options
Equipped with a variety of ports including multiple USB 3.2 Gen 1 and Gen 2 ports, HDMI, DisplayPort, and Gigabit Ethernet, this motherboard allows for comprehensive connectivity with peripherals, enhancing overall system versatility. - Advanced cooling solutions
Featuring GIGABYTE Smart Fan 6 technology, this motherboard provides cooling capabilities, allowing users to monitor and regulate fan speeds and improve airflow for optimal system performance during intense gaming sessions. - Robust RAM capabilities
With support for up to 4 DIMM slots and speeds ranging from 2400 MHz to 4100 MHz (overclocked), this motherboard enables users to maximize memory performance and expandability, accommodating demanding applications and multitasking scenarios.
