Please login to see the price and order.
Article-No.:
270845
Manufacturer-No.:
B850 EAGLE WF7 ICE
EAN/GTIN:
4719331871239
WEEE Nummer
DE74106091
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Compatible Processors
Ryzen
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
3900 MHz (O.C.), 4100 Mhz (O.C), 2900 MHz (O.C.), 3950 MHz (O.C.), 3975 MHz (O.C.), 2400 MHz, 2200 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 3700 MHz (O.C.)
Processor Socket
LGA1851 Socket
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
USB-C 3.2 Gen 1 - header, 1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Dual channel memory architecture
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller
Realtek RTL8922AE
Network
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 4.0 x4, 1 x PCIe 5.0 x16, 3 x M.2 socket (22110/2280), 4 x DIMM 288-pin, 2 x PCIe 3.0 x1
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 2 x M.2, PCIe 5.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description

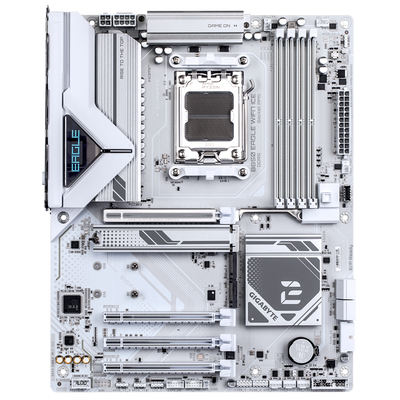

The GIGABYTE B850 EAGLE WIFI7 ICE motherboard supports Ryzen processors, compatible with the Ryzen 7000, 8000, and 9000 series. Built on the AMD B850 chipset, this motherboard supports DDR5 SDRAM technology with speed options including overclocking capabilities up to 4100 MHz, ensuring performance for demanding applications and gaming.
With ample expansion options, it features various slots including PCIe 5.0 x16 and M.2 sockets, allowing for enhanced connectivity and upgrades. Its connectivity includes USB 3.2 Gen 2, USB-C, and 2.5 Gigabit Ethernet, enabling high-speed data transfer and fast network access. The design includes a robust PCB, gold capacitors, and hardware monitoring features, making the GIGABYTE B850 EAGLE WIFI7 ICE a reliable choice for building a powerful and efficient system.
With ample expansion options, it features various slots including PCIe 5.0 x16 and M.2 sockets, allowing for enhanced connectivity and upgrades. Its connectivity includes USB 3.2 Gen 2, USB-C, and 2.5 Gigabit Ethernet, enabling high-speed data transfer and fast network access. The design includes a robust PCB, gold capacitors, and hardware monitoring features, making the GIGABYTE B850 EAGLE WIFI7 ICE a reliable choice for building a powerful and efficient system.
- Versatile connectivity options
Equipped with various interfaces such as USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1, and 2.5 Gigabit Ethernet, this motherboard ensures seamless data transfer and network connectivity for an enhanced user experience. - Robust memory support
Supports DDR5 SDRAM technology with up to four DIMM slots and speeds ranging from 2400 MHz to 4100 MHz (O.C.) to accommodate a dual-channel architecture for improved multitasking and performance. - Reliable power management
Features an 8+2+2 phase power design, ensuring efficient power delivery to the processor and components, coupled with hardware monitoring for system voltage, fan speed, and temperature detection. - Extensive expansion capabilities
Offers multiple expansion slots including PCIe 5.0 x16 and M.2 sockets, enhancing upgrade options for high-speed storage and additional peripherals. - Integrated high definition audio
Includes a sound card supporting high definition audio with 8-channel output for an immersive audio experience for gaming and multimedia applications.
