Please login to see the price and order.
Article-No.:
260849
Manufacturer-No.:
B650 EAGLE
EAN/GTIN:
4719331863081
WEEE Nummer
DE74106091
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Compatible Processors
Ryzen
Chipset Type
AMD B650
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 4400 MHz, 7200 MHz (O.C.), 5200 MHz, 7600 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 1 x serial - header, 6 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size
192 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Network
Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 3 x PCIe 3.0 x16 (x1 mode), 2 x M.2 socket (2280/25110 M.2 Key M slot), 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 4.0 x16
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 2 + 6 x USB 2.0
Software
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version)
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description

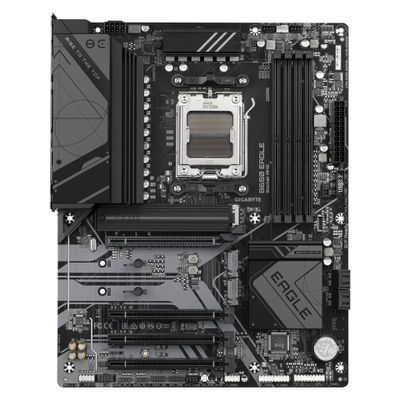

Discover the power of advanced computing with the GIGABYTE B650 EAGLE motherboard, designed to elevate your PC's performance and reliability. Engineered for enthusiasts, it supports Ryzen 7000/8000 Series processors, offering a solid foundation for building a high-performance system. With support for DDR5 SDRAM at speeds up to 7600 MHz (O.C.), it provides the bandwidth and speed necessary for demanding applications and gaming. The motherboard features a comprehensive cooling solution, including GIGABYTE Smart Fan 6 technology and an M.2 Thermal Guard, ensuring your system remains cool and stable under load. Enhanced connectivity options, including HDMI, DisplayPort, and USB 3.2 ports, allow for a wide range of peripherals and devices. Additionally, its durable design, featuring a 12+2+2 Phase Power Design and durable components, ensures long-term reliability and performance. Whether you're gaming, creating, or working, the GIGABYTE B650 EAGLE motherboard is built to meet the demands of today's computing needs.
- Enhanced connectivity
With a variety of interfaces including HDMI, DisplayPort, USB-C 3.2 Gen 1, and USB 3.2 Gen 2, this motherboard offers extensive connectivity options for a wide range of peripherals and devices, ensuring that users can build a versatile system. - Robust memory support
Supporting DDR5 SDRAM with speeds up to 7600 MHz (O.C.), this motherboard is designed to accommodate memory technology, offering exceptional bandwidth and speed for demanding applications and gaming. - Advanced cooling
Equipped with GIGABYTE Smart Fan 6 technology and an M.2 Thermal Guard, the motherboard ensures optimal cooling for enhanced system stability and performance, even under heavy loads. - Durable design
Featuring a 12+2+2 Phase Power Design, 6 Layer PCB, and durable components, the motherboard is built to withstand the rigors of extended use, providing reliability and longevity for your system.
