Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA

Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA_thumb_1
Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA_thumb_2
Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA_thumb_3
Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA_thumb_4
Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA_thumb_5
Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA_thumb_6
Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA_1
Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA_2
Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA_3
Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA_4
Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA_5
Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA_6
Article-No.:
135453
Manufacturer-No.:
ELP850IEC
EAN/GTIN:
0743172437648
Compare
Print view

Suitable products

Technical specifications

Description

Technical specifications

General

Packaged Quantity
1
Product Type
UPS

Networking

Remote Management Interface
USB

Software

Type
Eaton UPS Companion

Power Device

Voltage Required
AC 230
Frequency Required
50/60
Surge Suppression
Yes
Voltage Provided Margin
+ 15% / - 20%
Power Provided
510 Watt
Input Connector Type
Power IEC 60320 C14
Input Connector Qty
1
Output Connector Qty
4
Circuit Protection
Circuit breaker
Frequency Provided
50/60
UPS Technology
Line interactive
Input Voltage Range
AC 165 - 285 V
Input Voltage Range (Adjustable)
AC 150 - 285 V
Form Factor
External
Power Device Features
LCD display, Automatic Voltage Regulation (AVR), Deep discharge protection, Cold-start function, EcoControl Master/Control outlets
Power Capacity (VA)
850 VA

Battery

Run Time (Up To)
1 min
Load Type
At full load

UPS

Battery Technology
Lead acid
Battery Capacity
9 Ah

Dimensions & Weight

Width
8,2 cm
Depth
28,5 cm
Height
26 cm
Weight
7,3 kg

Service & Support

Type
3-year warranty

Miscellaneous

Color
Black
Features
Wall mountable
Height (Rack Units)
2
Rack Size
19"
Rack Size (metric)
48.3 cm
Color Category
Black
Description

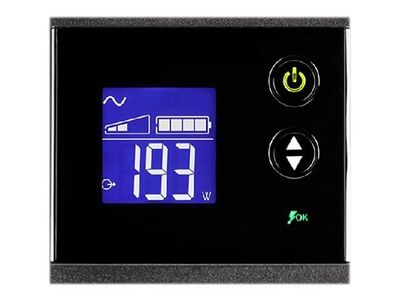

The Eaton Ellipse PRO 850, 850VA, is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features a LCD display for real time status and measurements, 4 outlets ( 3 with battery backup and lightning protection and one with lightning protection.

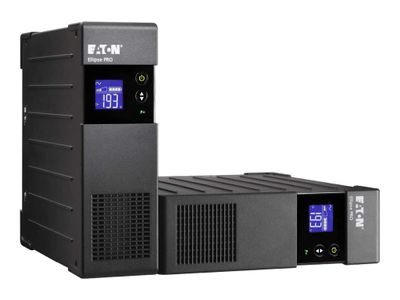

This unit includes Eco Control power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard. This UPS can be either placed as a tower, in a rack or be wall mounted. The Ellipse PRO also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers.
Product content

Product content

  • (2) IEC-IEC cables
  • USB cable
  • User manual
  • Safety instructions
  • Comes with Eaton UPS Companion software that enables safe system shutdown, energy usage, metering and easy configuration of UPS settings
