Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA

Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_thumb_1
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_thumb_2
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_thumb_3
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_thumb_4
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_thumb_5
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_thumb_6
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_thumb_7
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_1
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_2
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_3
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_4
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_5
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_6
Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA_7
Article-No.:
135455
Manufacturer-No.:
ELP1600IEC
EAN/GTIN:
0743172438256
Compare
Print view

Suitable products

Similar products

Technical specifications

Description

Technical specifications

General

Packaged Quantity
1
Product Type
UPS

Networking

Remote Management Interface
USB

Software

Type
Eaton UPS Companion

Power Device

Voltage Required
AC 230
Frequency Required
50/60
Surge Suppression
Yes
Voltage Provided Margin
+ 15% / - 20%
Power Provided
1000 Watt
Input Connector Type
Power IEC 60320 C14
Input Connector Qty
1
Output Connector Qty
8
Circuit Protection
Circuit breaker
Frequency Provided
50/60
UPS Technology
Line interactive
Input Voltage Range
AC 165 - 285 V
Input Voltage Range (Adjustable)
AC 150 - 285 V
Form Factor
External
Power Device Features
LCD display, Automatic Voltage Regulation (AVR), Deep discharge protection, Cold-start function, EcoControl Master/Control outlets
Power Capacity (VA)
1600 VA

Battery

Run Time (Up To)
9 min
Load Type
At half load

UPS

Batteries Qty
2
Battery Technology
Lead acid
Battery Capacity
9 Ah

Dimensions & Weight

Width
8,2 cm
Depth
39 cm
Height
27,5 cm
Weight
11,3 kg

Service & Support

Type
3-year warranty

Miscellaneous

Features
Wall mountable
Height (Rack Units)
2
Rack Size
19"
Rack Size (metric)
48.3 cm
Color Category
Black
Description

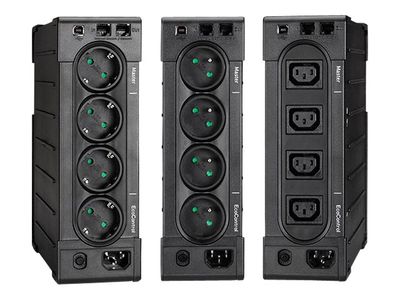

The Eaton Ellipse PRO 1600, 1600 VA, is a line interactive UPS specifically developed to protect workstations with demanding applications. As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse PRO also provides effective protection against damaging surges.
The Ellipse PRO features a LCD display for real time status and measurements. This model includes 2 Eco Control power outlets, that enable energy savings up to 20 percent. It complies fully with the requirements of the IEC 616431-1 standard. This UPS can be either placed as a tower, in a rack or be wall mounted. The Ellipse PRO also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers.
Documents

Documents

Product content

Product content

  • (2) IEC-IEC cables
  • USB cable
  • User manual
  • Safety instructions
  • Comes with Eaton UPS Companion software that enables safe system shutdown, energy usage, metering and easy configuration of UPS settings
