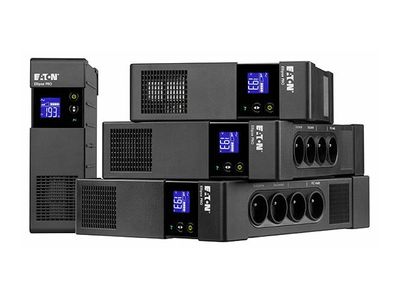

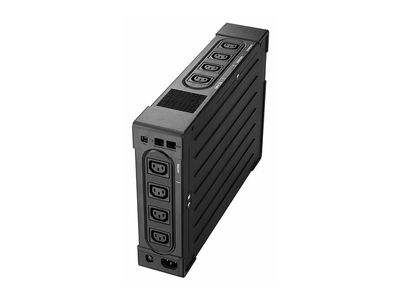

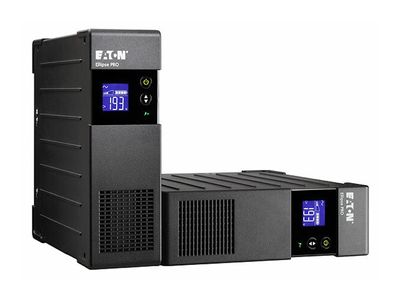

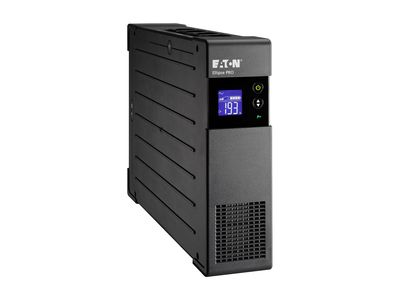

Eaton Ellipse PRO 1200 - UPS - 750 Watt - 1200 VA

Eaton Ellipse PRO 1200 - UPS - 750 Watt - 1200 VA_thumb_3

Eaton Ellipse PRO 1200 - UPS - 750 Watt - 1200 VA_thumb_4

Eaton Ellipse PRO 1200 - UPS - 750 Watt - 1200 VA_1

Eaton Ellipse PRO 1200 - UPS - 750 Watt - 1200 VA_2

Eaton Ellipse PRO 1200 - UPS - 750 Watt - 1200 VA_3

Eaton Ellipse PRO 1200 - UPS - 750 Watt - 1200 VA_4

Article-No.:

135454

Manufacturer-No.:

ELP1200IEC

EAN/GTIN:

0743172437952

Compare

Print view

Suitable products

Eaton - wall mount kit

Eaton Warranty+1 - extended service agreement - 1 year - shipment

Eaton - rack mounting kit - 2U

Technical specifications

General

Packaged Quantity

Product Type

UPS

Networking

Remote Management Interface

USB

Software

Type

Eaton UPS Companion

Power Device

Voltage Required

AC 230

Frequency Required

50/60

Surge Suppression

Yes

Voltage Provided Margin

+ 15% / - 20%

Power Provided

750 Watt

Input Connector Type

Power IEC 60320 C14

Input Connector Qty

Output Connector Qty

Circuit Protection

Circuit breaker

Frequency Provided

50/60

UPS Technology

Line interactive

Input Voltage Range

AC 165 - 285 V

Input Voltage Range (Adjustable)

AC 150 - 285 V

Form Factor

External

Power Device Features

LCD display, Automatic Voltage Regulation (AVR), Deep discharge protection, Cold-start function, EcoControl Master/Control outlets

Power Capacity (VA)

1200 VA

Battery

Run Time (Up To)

9 min

Load Type

At half load

UPS

Batteries Qty

Battery Technology

Lead acid

Battery Capacity

7 Ah

Dimensions & Weight

Width

8,2 cm

Depth

39 cm

Height

27,5 cm

Weight

9,9 kg

Service & Support

Type

3-year warranty

Miscellaneous

Features

Wall mountable

Height (Rack Units)

Rack Size

19"

Rack Size (metric)

48.3 cm

Color Category

Black

Description

The Eaton Ellipse PRO 1200, 1200 VA, is a line interactive UPS specifically developed to protect workstations with demanding applications. As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse PRO also provides effective protection against damaging surges.

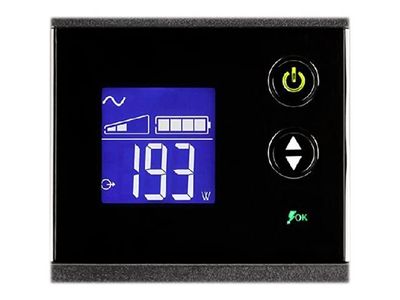

The Ellipse PRO features a LCD display for real time status and measurements. This model includes 2 Eco Control power outlets, that enable energy savings up to 20 percent. It complies fully with the requirements of the IEC 616431-1 standard. This UPS can be either placed as a tower, in a rack or be wall mounted. The Ellipse PRO also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers.

Documents

Eaton Ellipse PRO 1200 - UPS - 750 Watt - 1200 VA User manual

Product content

(2) IEC-IEC cables
USB cable
User manual
Safety instructions
Comes with Eaton UPS Companion software that enables safe system shutdown, energy usage, metering and easy configuration of UPS settings
