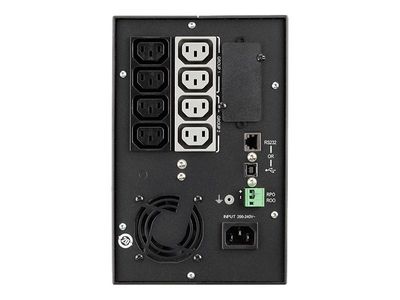

Eaton 5P 1550i - Gen 2 - UPS - tower - 1350 Watt - 1550 VA

Eaton 5P 1550i - Gen 2 - UPS - tower - 1350 Watt - 1550 VA_thumb_1
Eaton 5P 1550i - Gen 2 - UPS - tower - 1350 Watt - 1550 VA_thumb_2
Eaton 5P 1550i - Gen 2 - UPS - tower - 1350 Watt - 1550 VA_thumb_3
Eaton 5P 1550i - Gen 2 - UPS - tower - 1350 Watt - 1550 VA_thumb_4
Eaton 5P 1550i - Gen 2 - UPS - tower - 1350 Watt - 1550 VA_1
Eaton 5P 1550i - Gen 2 - UPS - tower - 1350 Watt - 1550 VA_2
Eaton 5P 1550i - Gen 2 - UPS - tower - 1350 Watt - 1550 VA_3
Eaton 5P 1550i - Gen 2 - UPS - tower - 1350 Watt - 1550 VA_4
Article-No.:
257505
Manufacturer-No.:
5P1550IG2
EAN/GTIN:
3553340710285
Compare
Print view

Similar products

Technical specifications

Description

Technical specifications

General

Packaged Quantity
1
Product Type
UPS

Networking

Remote Management Interface
RS-232, USB

Expansion Slots

Expansion Slots
1 (total) / 1 (free) x Communication slot

Power Device

Voltage Required
AC 200/208/220/230/240
Frequency Required
47 - 70
Voltage Provided Margin
+ 6% / - 10%
Power Provided
1350 Watt
Input Connector Type
Power IEC 60320 C14
Input Connector Qty
1
Output Connector Qty
8
Frequency Provided
50/60
UPS Output Waveform
Sinewave
UPS Technology
Line interactive
Input Voltage Range
AC 160 - 294 V
Input Voltage Range (Adjustable)
AC 150 - 294 V
Form Factor
External
Power Device Features
Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR), Remote ON/OFF function, Automatic shut down, Hot-swappable batteries, Isolated
Input Wiring
1-phase
Power Capacity (VA)
1550 VA
Power Factor (PF)
0.9

Battery

Voltage Provided
12
Run Time (Up To)
11,5 min
Load Type
At half load
Lead Acid Battery Features
Maintenance free, Sealed

UPS

Batteries Qty
3
Battery Technology
Lead acid
Battery Capacity
9 Ah

Dimensions & Weight

Width
15 cm
Depth
44,5 cm
Height
23,3 cm
Weight
15,1 kg

Miscellaneous

Color
Black/silver
Color Category
Black, Silver
Description
Eaton 5P is an energy efficient line-interactive UPS with advanced LCD and energy metering features. The graphical LCD display provides clear information on the UPS's status and measurements on a single screen. Enhanced configuration capabilities are also available with easy-to-use navigation keys.
  • Manageability
    The graphical LCD display provides clear information on the UPS's status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys. Load segment control enables prioritized shutdowns of nonessential equipment during outages in order to maximize battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.
  • Performance and efficiency
    Energy efficient UPS: with an optimized electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs.
  • Pure sinewave output
    When operating in battery mode, the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
  • Adjustable tolerance and sensitivity
    Users can maximize useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset).
  • Stronger, longer battery life
    Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%.
