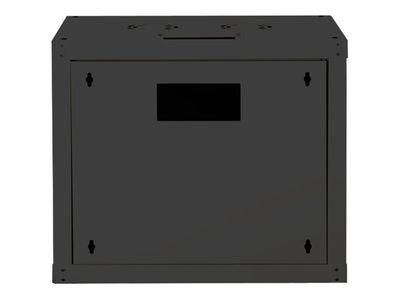

DIGITUS Professional Unique DN-19 09-U-SW rack - 9U

Article-No.:
161275
Manufacturer-No.:
DN-19 09-U-SW
EAN/GTIN:
4016032257653
WEEE Nummer
DE71839861

Suitable products

Technical specifications

General

Product Type
Rack
Packaged Quantity
1

Dimensions & Weight

Width
60 cm
Depth
45 cm
Height
50,9 cm

Miscellaneous

Product Material
Steel
Color
Black / RAL 9005
Features
Lockable doors, Removable side panels, IP20 protection, 210° opening angle, Passive ventilation, Lockable side panels
Height (Rack Units)
9
Rack Size
19"
Rack Size (metric)
48.3 cm
Color Category
Black
Description
The Wall Mounting Cabinets of the Unique Series were designed for the user friendly installation of active- and passive network components accompanied by a neat cable management. Each rack consists of up to 1.5 mm strong steel sheet material which ensures a very good stability as a robust steel construction. The color is created by powder coating in gray (RAL 7035) and black (RAL 9005). Wall installation can be done easily, there are two steps: Mount the rear wall of the housing on your wall and then simply connect it with the housing. Separately leveling feet or castors are available for free standing purposes. Door and side panels are easy to detach and the door stop can be changed from right to left. The roof contains air ventilation slots for a better air circulation. Each wall mounting cabinet contains one pair (two pieces) of mounted 483 mm (19") profile rails inside (wall mounting cabinets from 600 mm depth contain two pairs). They are galvanized, with height unit marking (countable from both directions) and variable in depth. An important aspect for each installation is the cable management. The roof of each cabinet is equipped with a sliding cable entry panel with rubber sealing. Punched out cable entries with plastic cover are present on the rear wall and base. An extensive portfolio of accessories for cable management, shelves, etc. will help to meet many requirements in daily use.
