Please login to see the price and order.
Article-No.:
127971
Manufacturer-No.:
PDU41004
EAN/GTIN:
4712856276701
WEEE Nummer
DE77251196
Similar products
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Product Type
Power distribution unit
Networking
Remote Management Interface
Ethernet, Serial
Power Device
Voltage Required
AC 100-240
Frequency Required
50/60
Input Connector Type
Power IEC 60320 C14
Input Connector Qty
1
Output Connector Type
Power IEC 60320 C13
Output Connector Qty
8
Max Electric Current
12 A
Form Factor
Rack-mountable
Power Device Features
LCD display, Voltage monitoring, Current meter, Digital power meter, AC frequency monitoring, Firmware upgradable
Input Wiring
1-phase
Cord Length
35 m
Dimensions & Weight
Width
43,3 cm
Depth
11,2 cm
Height
4,4 cm
Weight
2,1 kg
Dimensions & Weight (Shipping)
Shipping Width
50 cm
Shipping Depth
25 cm
Shipping Height
6,5 cm
Shipping Weight
3,9 kg
Service & Support
Type
3-year warranty
Miscellaneous
Color
Black
Features
Vertical orientation, Horizontal orientation
Height (Rack Units)
1
Color Category
Black
Description

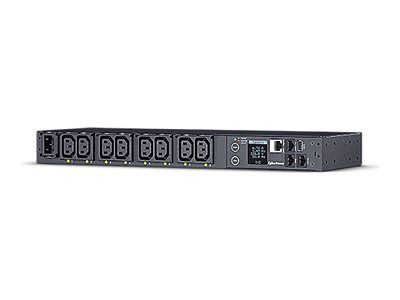

The CyberPower PDU41004, a 1U rackmount switched power distribution unit (PDU), provides 100-240V 15A output via 8 IEC-320 C13 receptacles from a single IEC-320 C14 input power plug. The switched outlet receptacles can be managed over the network by using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control display. The PDU41004 offers outlets that can be turned on, turned off, or recycled on demand. Outlets can be programmed to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.
With a three-year limited warranty, you can trust CyberPower's commitment to high quality.
With a three-year limited warranty, you can trust CyberPower's commitment to high quality.
- Versatile orientation options
The CyberPower PDU41004 supports both vertical and horizontal orientations, allowing for easy installation in various setups including server racks and cabinets. - Integrated remote management
This unit supports protocols such as SNMP and Telnet, enabling remote monitoring and control through a user-friendly interface for efficient management. - Robust power monitoring
Equipped with an LCD display, the PDU41004 provides users with real-time insights into voltage, current, and AC frequency, ensuring optimal performance and safety. - Compliance with industry standards
The PDU41004 adheres to important standards such as FCC Class A and UL 60950, ensuring reliability and safety in professional environments. - Rack-mountable design
Designed to occupy just 1 rack unit, this unit maximizes space while delivering high-performance power distribution capabilities.
Documents
Documents
- CyberPower Switched Series PDU41004 - power distribution unit Brochure
- CyberPower Switched Series PDU41004 - power distribution unit User manual
- CyberPower Switched Series PDU41004 - power distribution unit Quick start guide
- CyberPower Switched Series PDU41004 - power distribution unit safety data sheet
