CORSAIR case fan RS120 - 12 cm

Article-No.:
244064
Manufacturer-No.:
CO-9050188-WW
EAN/GTIN:
0840006684206
WEEE Nummer
DE93935395
Technical specifications

General

Product Type
Case fan
Packaged Quantity
1

Heatsink & Fan

Fan Diameter
120 mm
Fan Height
25 mm
Rotation Speed
420-2100 rpm
Air Flow
13.3 - 72.8 cfm
Power Connector
4-pin PWM
Features
Zero RPM fan mode, Daisy-chain design, Pulse-width modulation (PWM) support
Fan Bearing
Magnetic dome bearing
Air Pressure
0.2-4.15 mm
Noise Level
10 - 36 dBA

Service & Support

Type
5-year warranty

Miscellaneous

Color
Black
Color Category
Black
Description

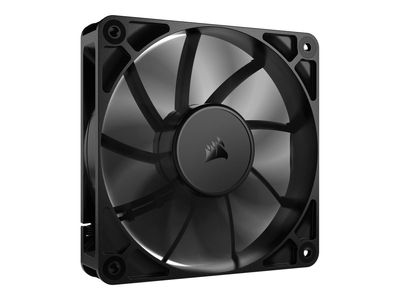

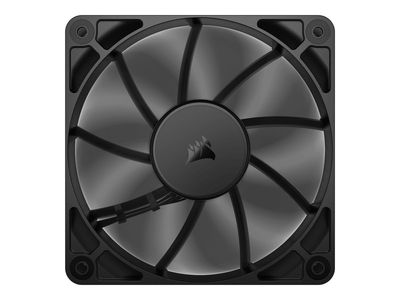

The CORSAIR RS120 case fan delivers powerful cooling performance with its 120 mm diameter and 25 mm height. Featuring a rotation speed that ranges from 420 to 2100 rpm, this fan caters to diverse airflow needs, providing an airflow of 13.3 to 72.8 cfm for efficient cooling. With Pulse-width modulation (PWM) support, it dynamically adjusts speed based on system temperature, ensuring optimal performance while minimizing noise. The fan operates with a noise level between 10 to 36 dBA, making it suitable for silent or high-performance builds. In addition, the RS120 incorporates a zero RPM fan mode for silent operation when cooling is not needed. Its daisy-chain design simplifies cable management in PC builds by enabling multiple fans to be connected seamlessly. With a magnetic dome bearing, it provides longevity and efficient performance, while air pressure of 0.2 to 4.15 mm ensures focused airflow to critical components. The package includes 4 mounting screws for easy installation.
  • Efficient airflow performance
    With an airflow range of 13.3 to 72.8 cfm, the fan effectively cools critical components, enhancing system reliability.
  • Dynamic speed control
    The fan's rotation speed varies from 420 to 2100 rpm, allowing for tailored cooling performance based on demand.
  • Quiet operation
    Operating at a noise level between 10 to 36 dBA, the fan ensures a calm environment while maintaining effective cooling.
  • User-friendly installation
    The fan comes with 4 mounting screws included, enabling hassle-free installation right out of the box.
  • Sleek design flexibility
    The daisy-chain design promotes organized cable management, complementing various setups and aesthetics.
