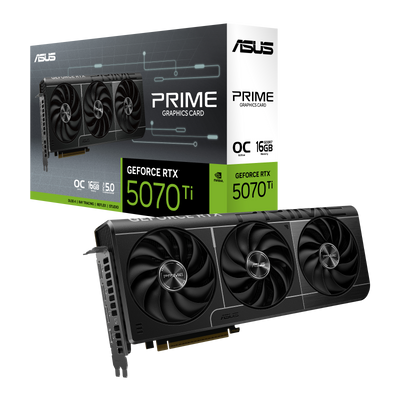

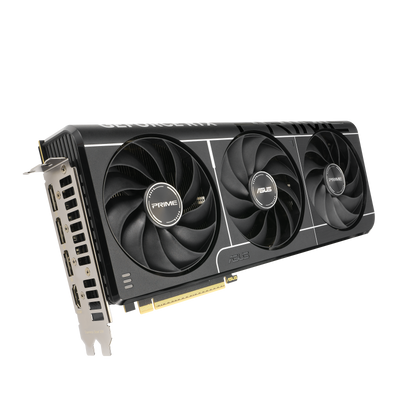

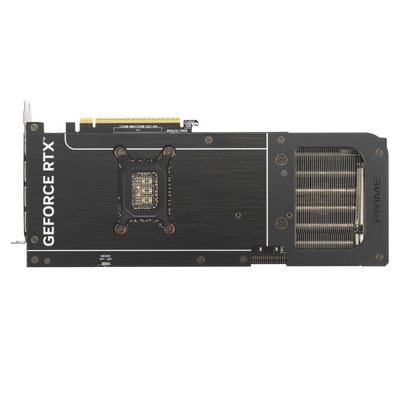

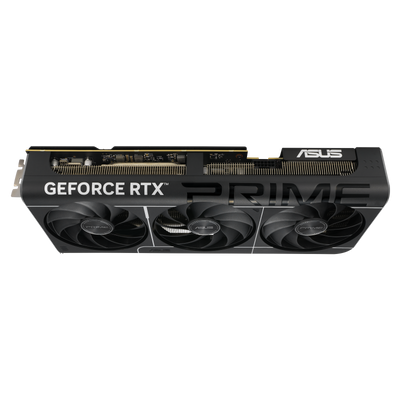

ASUS PRIME GeForce RTX 5070 Ti 16GB - OC Edition - graphics card - GeForce RTX 5070 Ti - 16 GB

ASUS PRIME GeForce RTX 5070 Ti 16GB - OC Edition - graphics card - GeForce RTX 5070 Ti - 16 GB_thumb_3

ASUS PRIME GeForce RTX 5070 Ti 16GB - OC Edition - graphics card - GeForce RTX 5070 Ti - 16 GB_thumb_4

ASUS PRIME GeForce RTX 5070 Ti 16GB - OC Edition - graphics card - GeForce RTX 5070 Ti - 16 GB_thumb_5

ASUS PRIME GeForce RTX 5070 Ti 16GB - OC Edition - graphics card - GeForce RTX 5070 Ti - 16 GB_thumb_6

ASUS PRIME GeForce RTX 5070 Ti 16GB - OC Edition - graphics card - GeForce RTX 5070 Ti - 16 GB_1

ASUS PRIME GeForce RTX 5070 Ti 16GB - OC Edition - graphics card - GeForce RTX 5070 Ti - 16 GB_2

ASUS PRIME GeForce RTX 5070 Ti 16GB - OC Edition - graphics card - GeForce RTX 5070 Ti - 16 GB_3

ASUS PRIME GeForce RTX 5070 Ti 16GB - OC Edition - graphics card - GeForce RTX 5070 Ti - 16 GB_4

ASUS PRIME GeForce RTX 5070 Ti 16GB - OC Edition - graphics card - GeForce RTX 5070 Ti - 16 GB_5

ASUS PRIME GeForce RTX 5070 Ti 16GB - OC Edition - graphics card - GeForce RTX 5070 Ti - 16 GB_6

Article-No.:

264213

Manufacturer-No.:

90YV0MF0-M0NA00

EAN/GTIN:

4711387861516

Compare

Print view

Technical specifications

General

Packaged Quantity

Video Output

Interface Type

PCI Express 5.0

Graphics Processor

NVIDIA GeForce RTX 5070 Ti

Max External Resolution

7680 x 4320

Max Monitors Supported

API Supported

OpenGL 4.6

Video Adapter Features

0dB Technology, Dual ball Bearing Fans, Dual Bios, NVIDIA DLSS 4, NVIDIA Reflex 2, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, NVIDIA Avatar Cloud Engine (ACE), Phase-change thermal pad, NVIDIA G-Sync ready

Graphics Processor Manufacturer

NVIDIA

HDCP Compatible

Type

Graphics card

CUDA Cores Qty

8960

Output Ports (compact list)

HDMI, 3 x DisplayPort

Supported Video Signal

HDMI, DisplayPort

VR Ready

Video Memory

Technology

GDDR7 SDRAM

Bus Width

256-bit

Installed Size

16 GB

Interfaces

Interfaces Details

HDMI, 3 x DisplayPort

Software

Type

ASUS GPU Tweak III

System Requirements

Additional Requirements

16 pin PCI Express power connector, 2 adjacent PCI slots

Required Power Supply

750 W

Dimensions & Weight

Width

5 cm

Depth

30,4 cm

Height

12,6 cm

Miscellaneous

Color Category

Black

Description

The ASUS PRIME GeForce RTX 5070 Ti 16GB OC Edition combines powerful features and advanced technology to enhance gaming and content creation experiences. With 16 GB of GDDR7 SDRAM and a memory speed of 28 Gbps, this graphics card delivers smooth visuals and responsiveness even in demanding scenarios. Supporting a maximum external resolution of 7680 x 4320, it allows for stunning visual clarity on large displays while supporting up to 4 monitors for expansive workspace or gaming setups.
Design highlights include NVIDIA G-Sync readiness, Dual Bios, and features like 0dB Technology, which ensures quiet operation during low workloads. The cooling system is enhanced with Dual ball Bearing Fans for reliable performance. The incorporation of advanced technologies such as NVIDIA DLSS 4, 4th generation Ray Tracing Cores, and 5th generation Tensor Cores ensures efficient rendering and performance optimizations, delivering an improved user experience across various applications including VR environments.

Efficient cooling system
The graphics card features Dual ball Bearing Fans that enhance cooling performance and ensure longevity. This design promotes efficient airflow while keeping noise levels low during operation.
Ample memory capacity
With an installed size of 16 GB, the GDDR7 SDRAM provides the memory bandwidth necessary for high-resolution textures and complex models in gaming and professional applications.
Advanced graphics technologies
The inclusion of NVIDIA DLSS 4 and Ray Tracing Cores offers enhanced graphical fidelity and performance, allowing for realistic lighting and shadow effects in supported games.

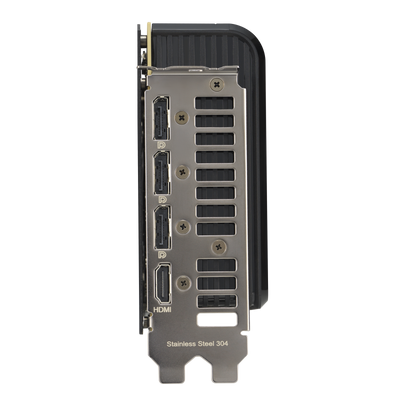

Versatile connectivity options
Featuring multiple output ports including HDMI and DisplayPort, this GPU can connect to a variety of displays, accommodating different setups and enabling multi-monitor configurations.
Dynamic performance management
The Dual Bios feature allows users to switch between different performance settings, adapting to various workloads and optimizing system efficiency as needed.
