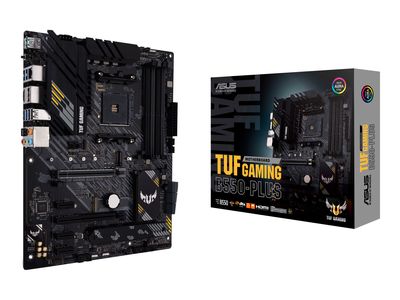

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_thumb_3

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_thumb_4

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_thumb_5

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_thumb_6

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_thumb_7

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_thumb_8

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_thumb_9

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_thumb_10

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_1

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_2

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_3

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_4

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_5

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_6

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_7

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_8

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_9

ASUS Mainboard TUF GAMING B550-PLUS - ATX - Socket AM4 - AMD B550_10

Article-No.:

142199

Manufacturer-No.:

90MB14G0-M0EAY0

EAN/GTIN:

4718017749435

WEEE Nummer

DE12375349

Compare

Print view

Technical specifications

General

Packaged Quantity

Processor

Installed Qty

Max Supported Qty

Mainboard

Form Factor

ATX

Compatible Processors

Ryzen

Chipset Type

AMD B550

Supported RAM Technology

DDR4 SDRAM

Supported RAM Speed

3200 MHz, 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.)

Processor Socket

Socket AM4

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Supported RAM (Registered or Buffered)

Unbuffered

RAM Slots

4 DIMM slots

Interfaces

Internal Interfaces

1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header

RAM

Max Supported Size

128 GB

Video Output

Type

Graphics adapter (CPU required)

Audio Output

Type

Sound card

Compliant Standards

High Definition Audio, DTS Custom

Audio Codec

Realtek ALCS1200A

Audio

High Definition Audio (8-channel)

Networking

Data Link Protocol

2.5 Gigabit Ethernet

Network Controller

Realtek RTL8125B

Network

2.5 Gigabit Ethernet

Expansion Slots

1 x CPU, 4 x DIMM 288-pin, 3 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4 mode (x2 mode if PCI Express 3.0 x1 slot is occupied)), 1 x M.2 socket (Key E), 1 x PCIe 4.0 x16

Interfaces

Storage Interfaces

SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x M.2, SATA-600 / PCIe 4.0 -connectors: 1 x M.2

Storage

Serial ATA-600 (RAID), M.2 socket

USB / FireWire

USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2

Storage Ports

6 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports Configuration (Active)

1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0

USB / FireWire Ports Configuration (Headers)

2 x USB 3.2 Gen 1 + 4 x USB 2.0

Software

Software Included

Norton AntiVirus (60 days trial), ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, Drivers & utilities, DAEMON Tools, WinRAR

Dimensions & Weight

Width

30,5 cm

Depth

24,4 cm

Description

TUF Gaming B550M-Plus distills essential elements of the AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, perfect compatibility, and complementary aesthetics from components to case.

Rock-solid performance
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550M-Plus is the perfect foundation for your next high-core-count battle rig.
Stack Cool 3+
2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.
Digi+ VRM
The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
Comprehensive fan controls
TUF Gaming B550M-Plus features comprehensive fan controls that can be configured via Fan Xpert 2+ utility or via the award-winning ASUS UEFI BIOS.
PCIe 4.0 M.2 (up to 64 Gbps)
TUF Gaming B550M series motherboards support PCIe 4.0 M.2 slot and provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.
USB 3.2 Gen 2 Type-A an Type-C
Numerous USB ports support gaming rigs loaded with peripherals, including a USB Type-A and a Type-C connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.
Build with confidence
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
SafeSlot
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured via an insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
DRAM overvoltage protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

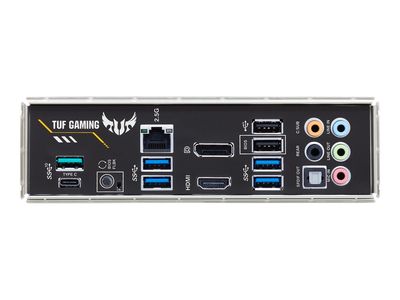

Stainless-steel back I/O panel
TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3x-longer lifespan.
Immersive gaming
TUF Gaming B550M-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
