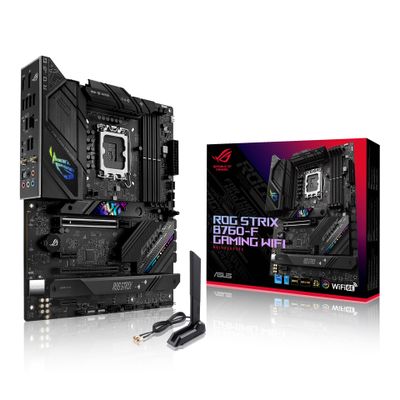

ASUS Mainboard ROG STRIX B760-F GAMING WIFI - ATX - Socket LGA1700 - Intel B760

Article-No.:
217600
Manufacturer-No.:
90MB1CT0-M1EAY0
EAN/GTIN:
4711081974666
WEEE Nummer
DE12375349
Technical specifications

General

Packaged Quantity
1

Processor

Installed Qty
0
Max Supported Qty
1

Mainboard

Form Factor
ATX
Chipset Type
Intel B760
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, On-die ECC
Supported RAM Speed
5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7800 MHz (O.C.)
Processor Socket
LGA1700 Socket
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots

Interfaces

Internal Interfaces
1 x audio - header, 4 x USB 2.0 - header, 1 x Thunderbolt - header, 1 x USB 3.2 Gen 2 - header, 2 x USB 3.2 Gen 1 - header

RAM

Features
Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size
192 GB

Video Output

Type
Graphics adapter (CPU required)

Audio Output

Type
Sound card
Compliant Standards
DTS Sound Unbound, High Definition Audio
Audio Codec
SupremeFX (ALC4080)
Audio
High Definition Audio (8-channel)

Networking

Network
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

Expansion Slots

Expansion Slots
1 x CPU, 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot), 2 x M.2 socket (2242/2260/2280 M.2 Key M slot), 1 x PCIe 5.0 x16, 4 x DIMM 288-pin, 2 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4 mode)

Interfaces

Storage Interfaces
PCIe 4.0 -connectors: 3 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage
Serial ATA-600 (RAID), M.2 socket
RAID Features
Intel Rapid Storage Technology
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2
Storage Ports
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1
USB / FireWire Ports Configuration (Headers)
1 x USB4 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0

Software

Software Included
Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4, Norton 360 for Gamers, ROG CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR

Dimensions & Weight

Width
30,5 cm
Depth
24,4 cm
Description
Leap into the future with the ROG STRIX B760-F, a fantastic upgrade into 13th Gen with its dominant power solution and best-in-class DDR5 speeds. Its next-gen PCIe 5.0 slot gives overwhelming graphics card throughput for maximum FPS, and you can minimize lag via hyper fast Wi-Fi 6E or 2.5G LAN. All these perks come alongside distinctive rainbow stripes and retro accents so you can show off your gamer pride.
  • Power architecture
    16 + 1 power stages, each rated to 60 A, deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
  • Alloy chokes and durable capacitors
    High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
  • Six-layer PCB
    A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
  • DDR5 domination
    ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the STRIX B760-F, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.
  • AEMP II
    ASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP's second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the STRIX B760-F to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support.
  • VRM heatsink array
    Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.
  • M.2 heatsinks
    Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
  • CPU fan headers
    Positioned near the top of the motherboard, a pair of PWM/DC fan headers give easy access for CPU coolers.
  • AIO pump fan header
    A dedicated PWM/DC header connects self-contained water-cooling setups.
  • 4-pin fan headers
    The STRIX B760-F features four chassis fan headers, each supporting auto-detection of PWM or DC fans.
  • PCIe performance
    The top x16 expansion slot is ready for the future with incredible PCIe 5.0 bandwidth, and it is protected with a SafeSlot retention bracket to support the bulk of the latest graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.
  • Wi-Fi 6E
    Onboard Wi-Fi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
  • Intel 2.5G Ethernet
    Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel 2.5 Gbps Ethernet.
  • USB
    The STRIX B760-F comes loaded with multiple high-speed USB options. All of the rear I/O ports are USB 3.2-compliant, with the fastest being a USB 3.2 Gen 2x2 Type-C port for data transfers up to 20 Gbps. A chassis port can also receive turbo treatment via the USB Gen 3.2 Gen 2 front-panel connector.
  • ROG SupremeFX
    ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The STRIX B760-F implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
  • Undeniably ROG STRIX
    Keeping true to its roots, the STRIX B760-F is proudly decorated with allusions to games of yesteryear. Scattered decals create a techno-retro fusion backdrop that is punctuated with vibrant highlights and a signature illuminated ROG logo on the I/O shroud.
  • Outshine the competition
    ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
Product content

Product content

  • ASUS ROG STRIX B760-F GAMING WIFI
  • 2 x Serial ATA cable
  • Cable ties, STRIX stickers, ROG thank you card, thermal pad for M.2 SSD, ROG key chain, ASUS Wi-Fi moving antenna, M.2 Q-Latch, 2 x M.2 rubber package
  • Software
