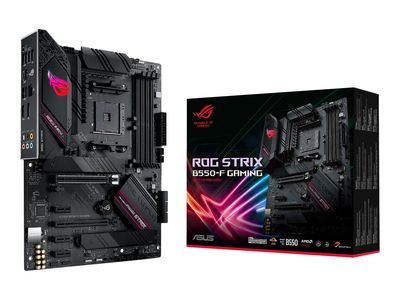

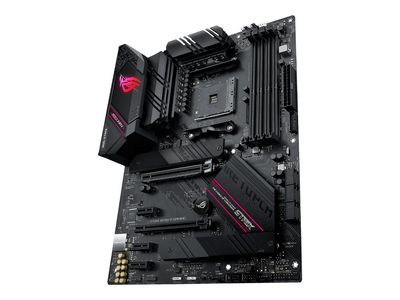

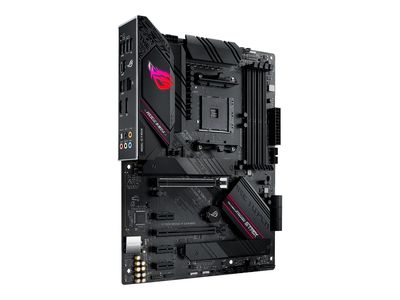

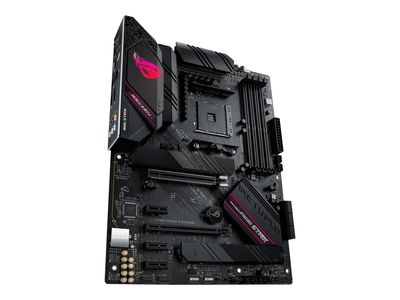

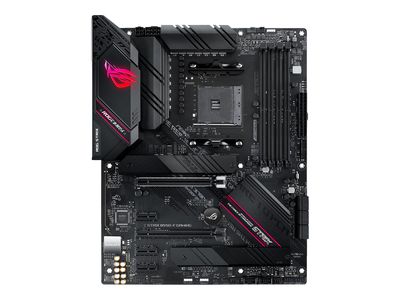

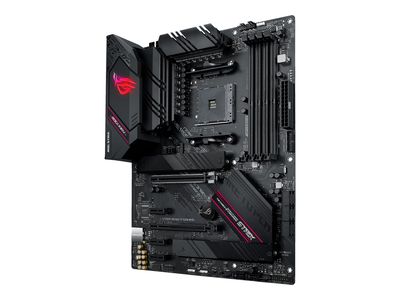

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_thumb_3

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_thumb_4

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_thumb_5

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_thumb_6

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_thumb_7

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_thumb_8

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_1

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_2

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_3

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_4

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_5

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_6

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_7

ASUS Mainboard ROG STRIX B550-F GAMING - ATX - Socket AM4 - AMD B550_8

Article-No.:

142194

Manufacturer-No.:

90MB14S0-M0EAY0

EAN/GTIN:

4718017749688

WEEE Nummer

DE12375349

Compare

Print view

Technical specifications

General

Packaged Quantity

Processor

Installed Qty

Max Supported Qty

Mainboard

Form Factor

ATX

Compatible Processors

Ryzen

Chipset Type

AMD B550

Supported RAM Technology

DDR4 SDRAM

Supported RAM Speed

3200 MHz, 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.)

Processor Socket

Socket AM4

Power Connectors

4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Supported RAM (Registered or Buffered)

Unbuffered

RAM Slots

4 DIMM slots

Interfaces

Internal Interfaces

4 x USB 2.0 - header, 1 x Thunderbolt - header, 2 x USB 3.2 Gen 1 - header

RAM

Features

Dual channel memory architecture

Max Supported Size

128 GB

Video Output

Type

Graphics adapter (CPU required)

Audio Output

Type

Sound card

Compliant Standards

DTS Sound Unbound, High Definition Audio

Audio Codec

SupremeFX (S1220A)

Audio

High Definition Audio (8-channel)

Networking

Data Link Protocol

2.5 Gigabit Ethernet

Network Controller

Intel I255-V

Network

2.5 Gigabit Ethernet

Expansion Slots

1 x CPU, 4 x DIMM 288-pin, 3 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 4.0 x16

Interfaces

Storage Interfaces

SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 2 x M.2

Storage

Serial ATA-600 (RAID), M.2 socket

USB / FireWire

USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2

Storage Ports

6 x SATA-600 (RAID), 2 x M.2

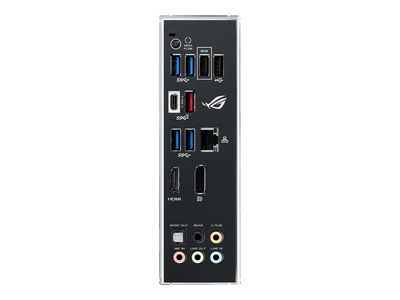

USB / FireWire Ports Configuration (Active)

1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0

USB / FireWire Ports Configuration (Headers)

2 x USB 3.2 Gen 1 + 4 x USB 2.0

Software

Software Included

Sonic Studio Virtual Mixer, ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Overwolf, ASUS EZ Flash 3, Antivirus, WinRAR, ASUS ROG RAMCache III

Dimensions & Weight

Width

30,5 cm

Depth

24,4 cm

Description

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming gives you a head start on your dream build.

Advance your gaming immersion
ROG Strix B550-F Gaming is PCIe 4.0-ready and provides the latest connectivity options for super-smooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
PCIe 4.0-ready
ROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express RAID for a performance boost.
Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.
SupremeFX
Built-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B550-F Gaming. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets.
AI noise-canceling microphone
AI noise-canceling microphone software is exclusively featured on ROG Strix motherboards and supports 3.5 mm, USB, or Bluetooth headsets. The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise. And it only places a slight load on the CPU, ensuring minimal impact on gaming performance.
All-round performance
ROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory - so it has everything you need to load up your build with high-performance components for playing in the big leagues.
DIGI+ Power Control
ASUS DIGI+ Power Control is an innovative set of controllers for digital VRM and DRAM Voltage. These controllers offer ultra-precise memory and voltage tuning for optimal system efficiency, stability and performance.
Cooler by design
ROG Strix B550 series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Outshine the competition
ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Q-LEDs
Four onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.
SafeSlot
The reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance.
