Please login to see the price and order.
Article-No.:
209345
Manufacturer-No.:
90MB1F60-M0EAY0
EAN/GTIN:
4711387236628
WEEE Nummer
DE12375349
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Compatible Processors
Ryzen
Chipset Type
AMD B650
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, On-die ECC
Supported RAM Speed
5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
2 DIMM slots
Interfaces
Internal Interfaces
1 x USB 3.2 Gen 1 - header, 1 x USB-C 3.2 Gen 1 - header, 1 x SPDIF out - header, 2 x USB 2.0 - header, 1 x speaker - header
RAM
Features
AMD EXPO technology, Dual channel memory architecture
Max Supported Size
96 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Network
2.5 Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 2 x M.2 socket (2242/2260/2280 M.2 Key M slot), 2 x DIMM 288-pin, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
Interfaces
Storage Interfaces
PCIe 5.0 -connectors: 1 x M.2, SATA-600 -connectors: 5 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 1 x M.2
Storage
Serial ATA-600 (RAID), M.2 socket
RAID Features
AMD RAID Xpert2 Technology
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)
2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0
Software
Software Included
ASUS AURA Creator, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert 2+, ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR
Dimensions & Weight
Width
24,4 cm
Depth
22,1 cm
Service & Support
Type
3-year warranty
Description

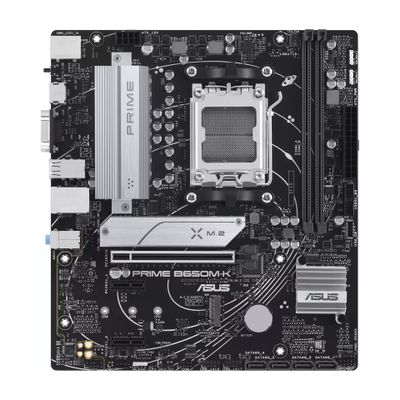

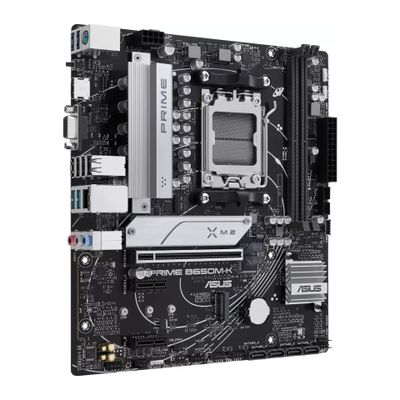

The ASUS PRIME B650M-K motherboard combines advanced technology and robust build quality to offer a solid foundation for your next PC build. Designed with the future in mind, it supports Ryzen 7000 Series processors on the Socket AM5 platform, ensuring compatibility with advanced CPU technology. With support for DDR5 memory at overclocked speeds up to 8000 MHz, it enhances system speed and responsiveness. The motherboard is equipped with advanced connectivity options, including USB 3.2 Gen 2 and 2.5 Gigabit Ethernet, providing fast data transfer and reliable network connections. Expansion is made easy with PCIe 4.0 and 5.0 slots, alongside versatile M.2 sockets for fast storage. ASUS's commitment to quality is evident in the motherboard's comprehensive cooling solutions, which ensure stable performance under any load. Whether you're a gamer, content creator, or enthusiast, the PRIME B650M-K offers the features and reliability you need to build a powerful, up-to-date system.
- Enhanced connectivity

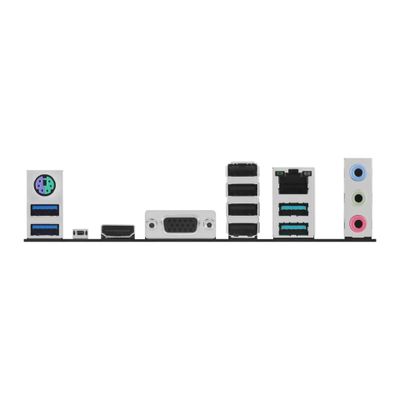

With a variety of interfaces including HDMI, VGA, USB 3.2 Gen 2, and USB 3.2 Gen 1, plus 2.5 Gigabit Ethernet for high-speed networking, this motherboard ensures comprehensive connectivity options for all your peripherals. - Optimized for performance
Supporting DDR5 SDRAM technology with speeds up to 8000 MHz (O.C.), alongside AMD EXPO technology for optimized memory performance, the PRIME B650M-K is designed to maximize your system's speed and efficiency. - Robust expansion options
Featuring PCIe 4.0 and PCIe 5.0 M.2 sockets for fast storage, alongside multiple DIMM and PCIe slots, this motherboard offers ample room for expansion and upgrades, ensuring your system stays up-to-date. - Advanced cooling
Equipped with dedicated M.2 and VRM heatsinks, this motherboard is designed to maintain optimal performance by efficiently dissipating heat, even under heavy loads. - Immersive audio experience
High definition audio with 8-channel support provides a rich, immersive listening experience, whether you're gaming, watching movies, or streaming music.
