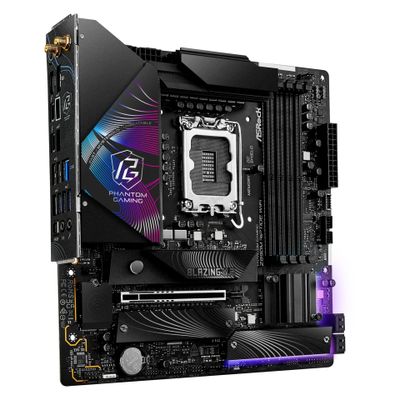

ASRock Phantom Gaming Z890M RIPTIDE WIFI - motherboard - micro ATX - LGA1851 Socket - Z890

ASRock Phantom Gaming Z890M RIPTIDE WIFI - motherboard - micro ATX - LGA1851 Socket - Z890_thumb_3

ASRock Phantom Gaming Z890M RIPTIDE WIFI - motherboard - micro ATX - LGA1851 Socket - Z890_thumb_4

ASRock Phantom Gaming Z890M RIPTIDE WIFI - motherboard - micro ATX - LGA1851 Socket - Z890_1

ASRock Phantom Gaming Z890M RIPTIDE WIFI - motherboard - micro ATX - LGA1851 Socket - Z890_2

ASRock Phantom Gaming Z890M RIPTIDE WIFI - motherboard - micro ATX - LGA1851 Socket - Z890_3

ASRock Phantom Gaming Z890M RIPTIDE WIFI - motherboard - micro ATX - LGA1851 Socket - Z890_4

Article-No.:

256636

Manufacturer-No.:

90-MXBPK0-A0UAYZ

EAN/GTIN:

4710483949722

WEEE Nummer

DE46285170

Compare

Print view

Technical specifications

General

Packaged Quantity

Processor

Installed Qty

Max Supported Qty

Mainboard

Form Factor

Micro ATX

Chipset Type

Intel Z890

Supported RAM Technology

DDR5 SDRAM

Supported RAM Integrity Check

Non-ECC

Supported RAM Speed

5800 MHz (O.C.), 4800 MHz, 6800 MHz (O.C.), 4400 MHz, 5600 MHz, 9466 MHz (O.C.)

Processor Socket

LGA1851 Socket

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Supported RAM (Registered or Buffered)

Unbuffered

RAM Slots

4 DIMM slots

Interfaces

Internal Interfaces

USB-C 3.2 Gen 2x2 - header, 1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header

RAM

Features

Intel Extreme Memory Profiles (XMP) 3.0, Dual channel memory architecture

Max Supported Size

256 GB

Video Output

Type

Graphics adapter (CPU required)

Audio Output

Type

Sound card

Compliant Standards

High Definition Audio

Audio Codec

Realtek ALC897

Audio

High Definition Audio (8-channel)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet

Network Controller

Realtek RTL8126

Network

Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), 5 Gigabit Ethernet

Bluetooth

Expansion Slots

1 x CPU, 1 x PCIe 5.0 x16, 3 x M.2 socket (2280 M.2 Key M slot), 1 x M.2 socket (Key E, for wireless module), 4 x DIMM 288-pin

Interfaces

Storage Interfaces

PCIe 4.0 -connectors: 1 x Hyper M.2, SATA-600 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 -connectors: 1 x Blazing M.2, SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5

Storage

Hyper M.2 socket, Blazing M.2 socket, Serial ATA-600 (RAID)

USB / FireWire

USB 3.2 Gen 1, USB 3.2 Gen 2, USB4

Storage Ports

2 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Blazing M.2

USB / FireWire Ports Configuration (Active)

2 x USB4 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0

USB / FireWire Ports Configuration (Headers)

1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0

Software

Software Included

ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC, Killer Control Center

Dimensions & Weight

Width

24,4 cm

Depth

24,4 cm

Description

The ASRock Phantom Gaming Z890M RIPTIDE WIFI is a micro ATX motherboard for gamers and enthusiasts seeking high performance and versatility. It supports Intel Core Ultra processors and offers features such as an 8 Layer PCB, dual-channel memory architecture with support for DDR5 RAM, and multiple storage options including PCIe 5.0 and Hyper M.2 sockets. The integrated Nahimic Audio Enhancer provides a rich audio experience, while the extensive connectivity options enable seamless integration with various peripherals and high-speed data transfers. The board also features ASRock's exclusive lighting control and a DIY-friendly design, making it suitable for custom builds.

Robust connectivity options
The motherboard offers extensive connectivity with a combination of USB 4, USB 3.2, and USB 2.0 ports, along with support for HDMI and LAN with 2.5 Gigabit Ethernet, making it easy to connect all types of devices.
High-performance audio capabilities
Equipped with a Realtek ALC897 audio codec, the motherboard delivers high definition audio with 8-channel support, ensuring a superior sound experience for gaming and multimedia.
Versatile storage solutions
Features multiple storage options, including 2 x SATA-600 RAID and innovative Hyper M.2 sockets that allow for high-speed SSDs, enabling quick loading times and efficient data access.
Efficient thermal management
Designed with a VRM heatsink and water pump header, the motherboard ensures effective cooling, helping to maintain optimal performance during intensive tasks.
Streamlined BIOS features
The AMI UEFI BIOS includes ASRock Easy RAID Installer and Instant Flash technologies, providing user-friendly navigation and efficient system setup.
