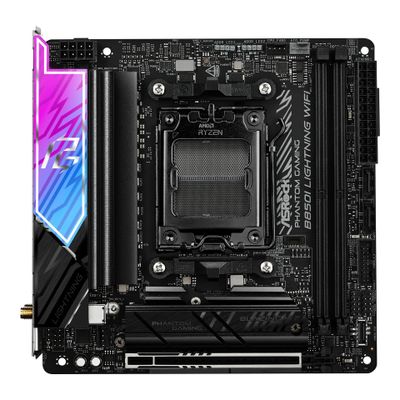

ASRock Phantom Gaming B850I LIGHTNING WIFI - motherboard - mini ITX - Socket AM5 - AMD B850

Article-No.:
262382
Manufacturer-No.:
90-MXBQR0-A0UAYZ
EAN/GTIN:
4711581490130
WEEE Nummer
DE46285170
Technical specifications

General

Packaged Quantity
1

Processor

Installed Qty
0
Max Supported Qty
1

Mainboard

Form Factor
Mini ITX
Compatible Processors
Ryzen
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC
Supported RAM Speed
8200 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
2 DIMM slots

Interfaces

Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 2 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header

RAM

Features
AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size
128 GB

Video Output

Type
Graphics adapter (CPU required)

Audio Output

Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC1220
Audio
High Definition Audio (8-channel)

Networking

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller
Killer E3100G
Network
2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Bluetooth

Expansion Slots

Expansion Slots
1 x CPU, 1 x PCIe 5.0 x16, 1 x M.2 socket (Key E, for wireless module), 2 x M.2 socket (2280 M.2 slot), 2 x DIMM 288-pin

Interfaces

Storage Interfaces
PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1
Storage
Hyper M.2 socket, Blazing M.2 socket, Serial ATA-600 (RAID)
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1
Storage Ports
2 x SATA-600 (RAID), 1 x Hyper M.2, 1 x Blazing M.2

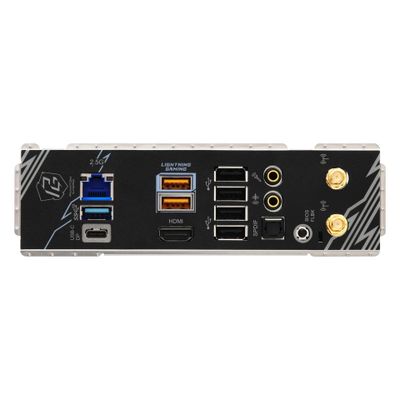

USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0

Software

Software Included
ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC, Killer Control Center

Dimensions & Weight

Width
17 cm
Depth
17 cm
Description
The ASRock Phantom Gaming B850I LIGHTNING WIFI motherboard combines performance and advanced technology in a compact mini ITX form factor, making it an ideal choice for gaming and high-performance systems. Equipped with the AMD B850 chipset and Socket AM5, it supports Ryzen 7000/8000/9000 Series processors and features dual-channel DDR5 SDRAM capabilities, reaching speeds of up to 4100 MHz when overclocked. High definition audio support with the Realtek ALC1220 codec ensures a rich sound experience, while the intelligent layout promotes efficient airflow through an enlarged heatsink armor design. Connectivity is robust with support for PCIe 5.0 and PCIe 4.0, along with various USB types including USB-C 3.2 Gen 2. It also features a networking solution with 2.5 Gigabit Ethernet and Wi-Fi 6E capabilities for faster and more reliable Internet access. The motherboard incorporates ASRock’s Polychrome RGB lighting for custom aesthetic setups, and several user-friendly enhancements, like the BIOS FlashBack button and Nahimic Audio Enhancer, make system configuration hassle-free. This motherboard is engineered for DIY enthusiasts, offering reinforced PCIe slots and a pre-mounted I/O shield to ensure durability and ease of installation.
  • Efficient audio performance
    The motherboard features high definition audio capabilities powered by the Realtek ALC1220 audio codec, delivering an immersive sound experience with 8-channel audio output.
  • High-speed connectivity
    Equipped with multiple USB interfaces, including USB-C 3.2 Gen 2 and USB 3.2 Gen 1, the motherboard ensures fast data transfer and seamless device integration.
  • Advanced cooling solutions
    The enlarged heatsink armor design promotes superior thermal management, allowing for optimal performance under demanding conditions.
  • Robust networking capabilities
    Experience networking with built-in 2.5 Gigabit Ethernet and Wi-Fi 6E, ensuring fast data transmission and low latency for online gaming.
  • Versatile expansion options
    Includes several expansion slots such as PCIe 5.0 and M.2 sockets for high-speed storage and graphics card support, giving users flexibility for upgrades.
