Product content
Product content
- ASRock N100M
- 2 x Serial ATA cable
- 2 x M.2 screws, IO shield
- Software
/asset/5/4/2/0/542031b8f0c5f5787bf08fccf1336450c27ff73a_209198.jpg)
/asset/6/d/0/5/6d0512e2dce9c9015f1cbf0e74bc0171c70031b3_209198_2.jpg)
/asset/0/3/e/d/03edee6b2567f2aee89a9f747ca3a88cb4b31b6b_209198_3.jpg)
/asset/8/9/d/1/89d10b918ea75d1fdd8913e0f0ba25e1105fe154_209198_4.jpg)
/asset/5/4/2/0/542031b8f0c5f5787bf08fccf1336450c27ff73a_209198.jpg)
/asset/6/d/0/5/6d0512e2dce9c9015f1cbf0e74bc0171c70031b3_209198_2.jpg)
/asset/0/3/e/d/03edee6b2567f2aee89a9f747ca3a88cb4b31b6b_209198_3.jpg)
/asset/8/9/d/1/89d10b918ea75d1fdd8913e0f0ba25e1105fe154_209198_4.jpg)
Please login to see the price and order.
Article-No.:
209198
Manufacturer-No.:
90-MXBK80-A0UAYZ
EAN/GTIN:
4710483943058
WEEE Nummer
DE46285170
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Type
N-series
Installed Qty
1
Manufacturer
Intel
Processor Number
N100
Number of Cores
Quad-Core
Mainboard
Form Factor
Micro ATX
Supported RAM Technology
DDR4 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
3200 MHz
Power Connectors
24-pin main power connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
1 DIMM slot
Interfaces
Internal Interfaces
1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
Supported ECC modules operate in non-ECC mode
Max Supported Size
32 GB
Video Output
Type
Graphics adapter
Graphics Processor
Intel UHD Graphics
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC897
Audio
High Definition Audio (8-channel)
Networking
Network Controller
Realtek RTL8111H
Network
Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x M.2 socket (2230 M.2 Key E slot), 1 x M.2 socket (2242/2260/2280 M.2 Key M slot), PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x2 mode), DIMM 288-pin
Interfaces
Storage Interfaces
SATA-300 -connectors: 2 x 7pin Serial ATA, PCIe 3.0 -connectors: 1 x M.2
Storage
Serial ATA-300, M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2
Storage Ports
2 x SATA-600, 1 x M.2
USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
ASRock A-Tuning, ASRock XFast LAN
Dimensions & Weight
Width
17,8 cm
Depth
22,6 cm
Description

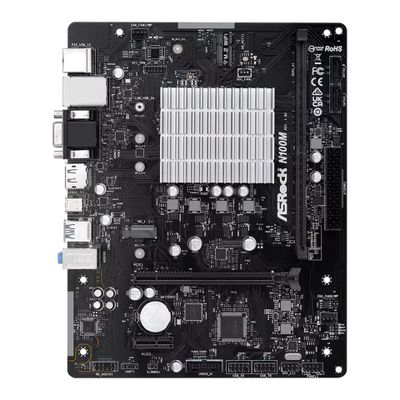

The ASRock N100M motherboard combines performance, connectivity, and durability to meet the needs of a wide range of users. From gamers to professionals, this micro ATX motherboard offers high-definition audio with an 8-channel output, ensuring an immersive sound experience. Its versatile connectivity options, including HDMI, VGA, and USB 3.2 ports, allow for easy integration of all your essential peripherals and devices. With support for DDR4 SDRAM at 3200 MHz and flexible storage solutions through M.2 and SATA-600 interfaces, it provides the speed and space needed for demanding applications and games. Additionally, the motherboard's fanless design heatsink and use of solid capacitors ensure silent operation and enhanced durability, making it a reliable choice for building a high-performance PC.
- Enhanced audio experience
Experience high-definition audio with an 8-channel audio output and Realtek ALC897 codec, ensuring a rich audio experience whether you're gaming, watching movies, or listening to music. - Versatile connectivity options

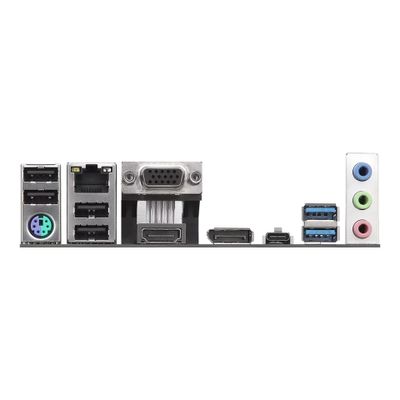

With a range of ports including HDMI, VGA, USB 3.2 Gen 1 and 2, plus Gigabit Ethernet, this motherboard offers extensive connectivity for all your peripherals and devices. - Robust storage solutions
Equipped with M.2 and Serial ATA-300 interfaces, along with support for up to 2 x SATA-600 and 1 x M.2 storage devices, it provides flexible storage options to meet the needs of demanding applications and games. - High-speed memory support
Supports DDR4 SDRAM at 3200 MHz with one DIMM slot, allowing for high-speed memory configurations that can enhance the overall system performance. - Efficient and reliable design
Features a fanless design heatsink and solid capacitors, ensuring silent operation and enhanced durability for long-term use.
