Product content
Product content
- ASRock B860M LiveMixer WiFi
- 2 x Serial ATA cable
- Thermistor cable, 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- Software
/asset/c/e/2/7/ce274df7dc89488d790e6c6f01f14f636de8e58e_262355.jpg)
/asset/4/b/7/4/4b7471ef230abd2b90b12b5de2e57f662417d088_262355_2.jpg)
/asset/3/9/3/3/3933d6d51015dffb137a9c7e1aa90c6c4f5fead3_262355_3.jpg)
/asset/8/9/3/0/89309a1de67bad445364a80b29c7815b9f0e634f_262355_4.jpg)
/asset/c/e/2/7/ce274df7dc89488d790e6c6f01f14f636de8e58e_262355.jpg)
/asset/4/b/7/4/4b7471ef230abd2b90b12b5de2e57f662417d088_262355_2.jpg)
/asset/3/9/3/3/3933d6d51015dffb137a9c7e1aa90c6c4f5fead3_262355_3.jpg)
/asset/8/9/3/0/89309a1de67bad445364a80b29c7815b9f0e634f_262355_4.jpg)
Please login to see the price and order.
Article-No.:
262355
Manufacturer-No.:
90-MXBRT0-A0UAYZ
EAN/GTIN:
4711581490314
WEEE Nummer
DE46285170
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Chipset Type
Intel B860
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
5600 MHz (O.C.), 4800 MHz, 6800 MHz (O.C.), 4400 MHz, 5600 MHz, 6533 MHz (O.C.), 8666 MHz (O.C.)
Processor Socket
LGA1851 Socket
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Supported RAM (Registered or Buffered)
Unbuffered, Clocked unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technology, Dual channel memory architecture
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC1220
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller
Dragon RTL8125BG
Network
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Bluetooth
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 4.0 x4, 1 x M.2 socket (2230 M.2 Key E slot), 1 x PCIe 5.0 x16, 3 x M.2 socket (2280 M.2 Key M slot), 4 x DIMM 288-pin
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 2 x Hyper M.2, PCIe 5.0 -connectors: 1 x Blazing M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage
Hyper M.2 socket, Blazing M.2 socket, Serial ATA-600 (RAID)
USB / FireWire
USB 3.2 Gen 1, USB4, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Blazing M.2
USB / FireWire Ports Configuration (Active)
1 x USB4 + 6 x USB 3.2 Gen 1 + 6 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning
Dimensions & Weight
Width
24,4 cm
Depth
24,4 cm
Description

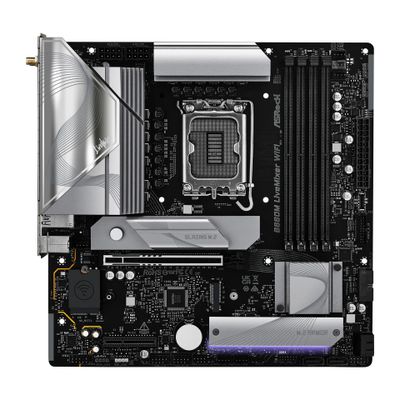

The ASRock B860M LiveMixer WiFi motherboard is designed for high-performance computing, supporting Intel Core Ultra processors and various RAM configurations. With the capability to handle DDR5 SDRAM at speeds up to 8666 MHz, this motherboard is tailored for users looking to enhance their systems. It provides 4 DIMM slots, accommodating dual-channel memory architecture for improved multitasking and performance.
In terms of connectivity, the B860M LiveMixer offers USB 3.2 Gen 1, USB4, and dual 2.5 Gigabit Ethernet for rapid networking. The built-in advanced audio features high definition audio with 8-channel output, courtesy of the Realtek ALC1220 codec, ensuring an immersive sound experience. With an intuitive UEFI BIOS, ASRock Full HD UEFI, and customizable RGB lighting, users can enjoy a DIY-friendly experience while optimizing their build for aesthetics and functionality.
In terms of connectivity, the B860M LiveMixer offers USB 3.2 Gen 1, USB4, and dual 2.5 Gigabit Ethernet for rapid networking. The built-in advanced audio features high definition audio with 8-channel output, courtesy of the Realtek ALC1220 codec, ensuring an immersive sound experience. With an intuitive UEFI BIOS, ASRock Full HD UEFI, and customizable RGB lighting, users can enjoy a DIY-friendly experience while optimizing their build for aesthetics and functionality.
- Robust audio capabilities
The ASRock B860M LiveMixer WiFi motherboard features high definition audio with 8-channel output via the Realtek ALC1220 codec, offering an enhanced listening experience for gamers and media enthusiasts. - Extensive connectivity options
With a diverse array of ports including USB 3.2 Gen 1, USB4, and dual 2.5 Gigabit Ethernet, this motherboard ensures seamless connections for all devices, maximizing data transfer speeds. - High-performance RAM support
Supporting DDR5 SDRAM across 4 DIMM slots, this motherboard accommodates speeds from 4800 MHz to 8666 MHz, providing flexibility for users to build high-performance systems. - Advanced cooling design
The motherboard incorporates a well-engineered cooling solution with a chipset heatsink and M.2 heatsink to maintain optimal temperatures during intense usage, enhancing the longevity of components. - User-friendly BIOS features
Equipped with UEFI BIOS and features such as ASRock Instant Flash and EZ Mode, this motherboard streamlines system customization and allows easy firmware updates for improved performance.
