- ASRock B850M-X
- Software
/asset/3/c/4/3/3c43a59fe6d70e3d7a4a122ea39f5ae1423957b6_262380.jpg)
/asset/5/3/7/0/53703a4f91d5d53e562774af5ae044fa90b3dfb5_262380_2.jpg)
/asset/e/b/b/3/ebb3974101eccc3bfc8e1769d4e8f3ac0a2e4284_262380_3.jpg)
/asset/3/c/4/3/3c43a59fe6d70e3d7a4a122ea39f5ae1423957b6_262380.jpg)
/asset/5/3/7/0/53703a4f91d5d53e562774af5ae044fa90b3dfb5_262380_2.jpg)
/asset/e/b/b/3/ebb3974101eccc3bfc8e1769d4e8f3ac0a2e4284_262380_3.jpg)
Please login to see the price and order.
Article-No.:
262380
Manufacturer-No.:
90-MXBR10-A0UAYZ
EAN/GTIN:
4711581490109
WEEE Nummer
DE46285170
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Compatible Processors
Ryzen
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC
Supported RAM Speed
8200 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
2 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size
128 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC897
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Network Controller
Dragon RTL8125BG
Network
2.5 Gigabit Ethernet
Bluetooth
Expansion Slots
Expansion Slots
1 x CPU, 1 x M.2 socket (Key E, for wireless module), 2 x DIMM 288-pin, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1, 1 x PCIe 4.0 x16 (x4 mode)
Interfaces
Storage Interfaces
PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage
Hyper M.2 socket, Blazing M.2 socket, Serial ATA-600 (RAID)
USB / FireWire
USB 3.2 Gen 1, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 1 x Hyper M.2, 1 x Blazing M.2
USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning
Dimensions & Weight
Width
24,4 cm
Depth
22,6 cm
Description

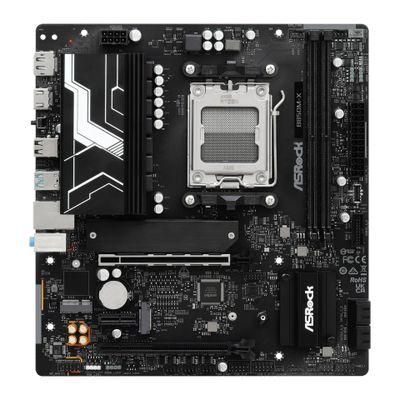

The ASRock B850M-X motherboard offers a solid foundation for building a high-performance PC with its robust features and compatibility. It supports Ryzen processors from the 7000, 8000, and 9000 series, ensuring a powerful setup for a variety of tasks. This micro ATX motherboard features 6+1+1 phase power design and Dr.MOS MOSFETs, enhancing stability and efficiency during operation. Connectivity is a strong point with Dual USB 3.2 Gen 1 ports and a USB-C 3.2 Gen 1 header for fast data transfer. Additionally, the board comes equipped with sound compatibility through its high definition audio codec Realtek ALC897, allowing for an immersive audio experience. With 2.5 Gigabit Ethernet support provided by the Dragon RTL8125BG network controller, users can enjoy high-speed networking, making this motherboard a reliable choice for gaming, content creation, and more.
- Robust power design
The motherboard features a 6+1+1 phase power design, ensuring stable power delivery to the components for optimal performance. - High definition audio support
With the Realtek ALC897 audio codec, this motherboard supports high definition audio with 8-channel output for an engaging audio experience. - Multiple USB connectivity
This motherboard is equipped with a variety of USB ports including USB 3.2 Gen 1, USB-C, and USB 2.0, providing versatile connectivity options. - Advanced networking capabilities
The built-in Dragon RTL8125BG network controller offers 2.5 Gigabit Ethernet support, ensuring fast and reliable Internet connections. - Dual-channel memory architecture
Supports dual-channel memory architecture and AMD EXPO technology, enabling efficient memory performance for demanding applications.
