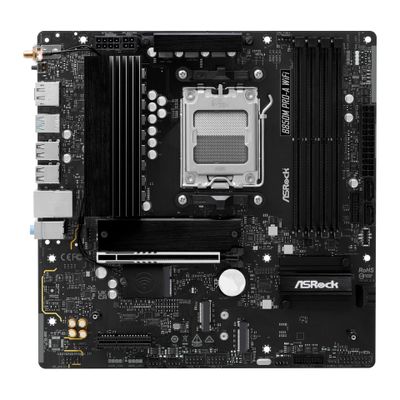

ASRock B850M Pro-A WIFI - motherboard - micro ATX - Socket AM5 - AMD B850

Article-No.:
262379
Manufacturer-No.:
90-MXBR9-A0UAYZ
EAN/GTIN:
4711581490376
WEEE Nummer
DE46285170
Technical specifications

General

Packaged Quantity
1

Processor

Installed Qty
0
Max Supported Qty
1

Mainboard

Form Factor
Micro ATX
Compatible Processors
Ryzen
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, On-die ECC
Supported RAM Speed
4000 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots

Interfaces

Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header

RAM

Features
AMD EXPO technology, Intel Extreme Memory Profiles (XMP)
Max Supported Size
256 GB

Video Output

Type
Graphics adapter (CPU required)

Audio Output

Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC897
Audio
High Definition Audio (8-channel)

Networking

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller
Dragon RTL8125BG
Network
2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Bluetooth

Expansion Slots

Expansion Slots
1 x CPU, 1 x PCIe 4.0 x4, 1 x M.2 socket (for wireless module), 1 x PCIe 5.0 x16, 3 x M.2 socket (2280 M.2 slot), 4 x DIMM 288-pin

Interfaces

Storage Interfaces
PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -connectors: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage
Hyper M.2 socket, Blazing M.2 socket, Serial ATA-600 (RAID)
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2
Storage Ports
4 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Blazing M.2

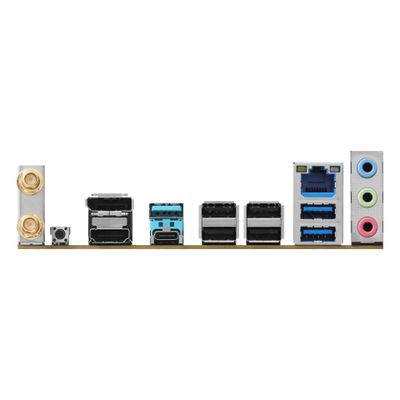

USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0

Software

Software Included
ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning

Dimensions & Weight

Width
24,4 cm
Depth
24,4 cm
Description
The ASRock B850M Pro-A WIFI motherboard is designed to elevate your computing experience with its robust features and modern connectivity options. Built on a micro ATX form factor, it supports AMD Ryzen processors, ensuring compatibility with high-performance computing setups. The motherboard supports DDR5 SDRAM technology, with speeds up to 4000 MHz (O.C.), allowing for efficient multitasking and high-speed data processing. Additionally, it facilitates up to 4 DIMM slots for memory expansion, making it a suitable choice for gamers and professionals alike. Offering various connectivity options, this motherboard includes multiple USB ports, including USB 3.2 Gen 2 and USB-C 3.2 Gen 2, along with HDMI and DisplayPort for versatile display output. The inclusion of a 2.5 Gigabit Ethernet port ensures swift and reliable network connections. With high definition audio capabilities powered by Realtek ALC897, sound quality enhances your gaming or media experience.
  • Powerful memory support
    The motherboard features 4 DIMM slots that support DDR5 SDRAM technology for high-speed memory operations, enabling multitasking and superior system performance.
  • Versatile connectivity options
    Equipped with multiple USB ports including USB 3.2 Gen 2, USB-C 3.2 Gen 2, and traditional HDMI, the motherboard allows for extensive peripheral connections and enhanced display capabilities.
  • Advanced network capabilities
    With 2.5 Gigabit Ethernet and support for Wi-Fi 6E, the motherboard ensures broader range and faster network speeds for seamless online gaming and streaming.
  • Exceptional audio performance
    The Realtek ALC897 audio codec provides high definition audio output with 8-channel support, delivering an immersive sound experience for multimedia applications.
  • Robust power design
    The motherboard features an 8+2+1 phase power design, along with Dr.MOS MOSFETs, ensuring stable power delivery and improved performance for high-demand applications.

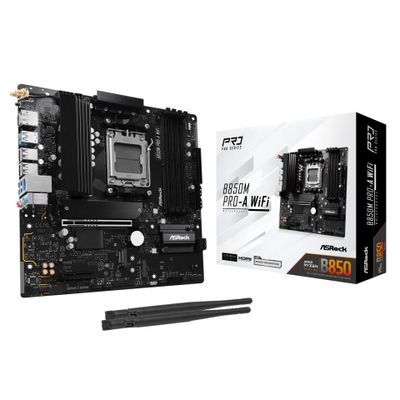

Product content

Product content

  • ASRock B850M Pro-A WIFI
  • 2 x Serial ATA cable
  • 1 x M.2 screw, IO shield, ASRock WiFi 2.4/5/6 GHz aerial
  • Software
