Please login to see the price and order.
Article-No.:
262371
Manufacturer-No.:
90-MXBQL0-A0UAYZ
EAN/GTIN:
4711581490178
WEEE Nummer
DE46285170
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Compatible Processors
Ryzen
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC
Supported RAM Speed
8000 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header, 1 x audio - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC897
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller
Dragon RTL8125BG
Network
2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Bluetooth
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 5.0 x16, 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot), 1 x M.2 socket (Key E, for wireless module), 3 x M.2 socket (2280 M.2 slot), 4 x DIMM 288-pin, 1 x PCIe 4.0 x16 (x4 mode)
Interfaces
Storage Interfaces
ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1, PCIe 4.0 -connectors: 2 x Hyper M.2, PCIe 5.0 -connectors: 1 x Blazing M.2, PCIe 3.0 -connectors: 1 x Ultra M.2, SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1
Storage
Hyper M.2 socket, Blazing M.2 socket, Serial ATA-600 (RAID), Ultra M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Blazing M.2, 1 x Ultra M.2

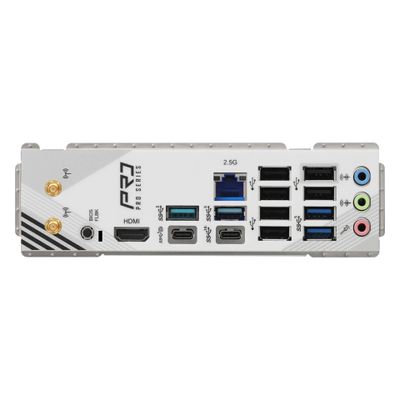

USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 2 + 1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description

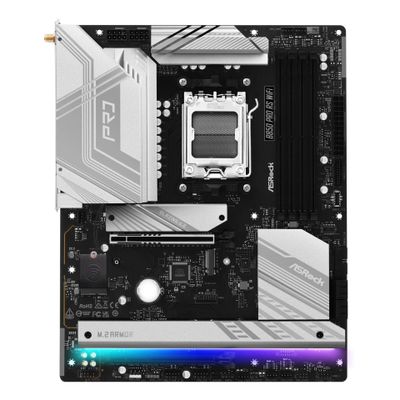

The ASRock B850 Pro RS WiFi motherboard is designed for performance and versatility. It supports AMD B850 chipset and features a Socket AM5 for compatibility with Ryzen 7000/8000/9000 Series processors. This motherboard offers a robust power design with a 14+2+1 Phase Power Design, reinforced PCIe slots, and an aluminum heatsink design to ensure stability during demanding tasks.
With support for high-speed DDR5 SDRAM up to 4000 MHz (O.C.) and a dual-channel memory architecture, this motherboard enables efficient multitasking and high-performance computing. It comes equipped with multiple M.2 and SATA interfaces, including 2 Hyper M.2 and 1 Blazing M.2 slots, providing fast storage options. Additionally, integrated Wi-Fi 6E and Bluetooth 5.2 capabilities ensure seamless connectivity options for various devices.
With support for high-speed DDR5 SDRAM up to 4000 MHz (O.C.) and a dual-channel memory architecture, this motherboard enables efficient multitasking and high-performance computing. It comes equipped with multiple M.2 and SATA interfaces, including 2 Hyper M.2 and 1 Blazing M.2 slots, providing fast storage options. Additionally, integrated Wi-Fi 6E and Bluetooth 5.2 capabilities ensure seamless connectivity options for various devices.
- Efficient power design
The motherboard features a 14+2+1 Phase Power Design ensuring stable power delivery for high performance, especially during overclocking, enhancing system reliability. - Versatile connectivity options
With a variety of USB 3.2 and USB-C ports, including USB 3.2 Gen 2x2, the motherboard allows for multiple peripheral connections and faster data transfer rates. - Advanced audio capabilities
Equipped with the Realtek ALC897 audio codec and high definition audio support, it offers an immersive sound experience with high-quality audio output. - Robust thermal management
The ASRock B850 Pro RS WiFi is designed with an aluminum heatsink and enlarged M.2 heatsink to effectively dissipate heat, ensuring optimal performance under load. - User-friendly features
With ASRock Instant Flash, BIOS FlashBack button, and a DIY-friendly design, this motherboard makes system setup and upgrades straightforward for users.
