Product content
Product content

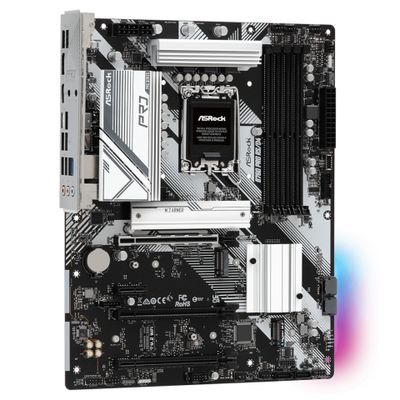

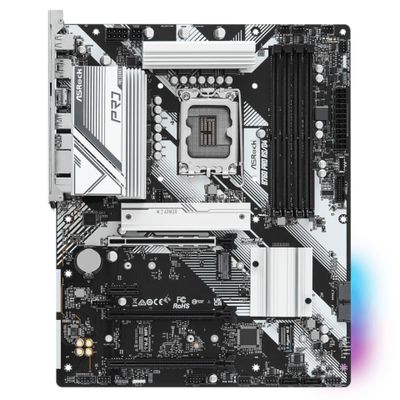

- ASRock B760 PRO RS/D4
- 2 x Serial ATA cable
- 4 x M.2 screws, standoff for M.2 socket
- Software
/asset/c/7/5/c/c75c152df2e23301e25279a51c4dacf0072aa6e5_202994.jpg)
/asset/5/c/0/b/5c0b97362e5e886f11241a11075a0d6a346316ea_202994_2.jpg)
/asset/f/b/b/4/fbb4636ae9398ca2f14d1f17bbb16d460a298312_202994_3.jpg)
/asset/c/7/5/c/c75c152df2e23301e25279a51c4dacf0072aa6e5_202994.jpg)
/asset/5/c/0/b/5c0b97362e5e886f11241a11075a0d6a346316ea_202994_2.jpg)
/asset/f/b/b/4/fbb4636ae9398ca2f14d1f17bbb16d460a298312_202994_3.jpg)
Please login to see the price and order.
Article-No.:
202994
Manufacturer-No.:
90-MXBL80-A0UAYZ
EAN/GTIN:
4710483942075
WEEE Nummer
DE46285170
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Chipset Type
Intel B760
Supported RAM Technology
DDR4 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
3200 MHz, 5333 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.)
Processor Socket
LGA1700 Socket
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 2 x USB 2.0 - header, 1 x speaker - header, 1 x Thunderbolt - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
Intel Extreme Memory Profiles (XMP) 2.0, Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size
128 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC897
Audio
High Definition Audio (8-channel)
Networking
Network Controller
Dragon RTL8125BG
Network
2.5 Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 1 x M.2 socket (2230 M.2 Key E slot), 3 x M.2 socket (2260/2280 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x1 mode), 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode)
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 3 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage
Hyper M.2 socket, Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 2 x Hyper M.2, 1 x M.2
USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 1 + 5 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
Software
Software Included
ASRock Dragon 2.5G LAN Software, ASRock A-Tuning
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the popular PRO series motherboard. Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade. RaceSport edition, your all-rounder motherboard that fulfills.
- Optimized VRM design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - 7+1+1 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. - High speed M.2 solution
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. - Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. - Audio that matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you more engaging listening experience, vibrant and rich with details. - Enhance communication quality
The powerful algorithms to ensure better noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. - Ultimate gaming experience
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize their technology and offer you better experience. - Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. - Optical drive or driver DVD is no longer needed
ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically! - Pre-installed IO shield
ASRock strives offer only the cutting edge technology with more user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
