Product content
Product content

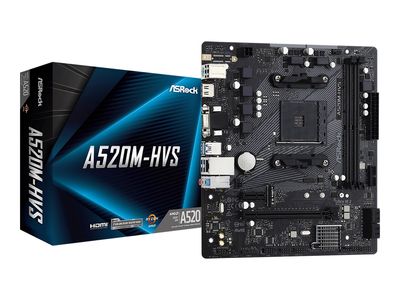

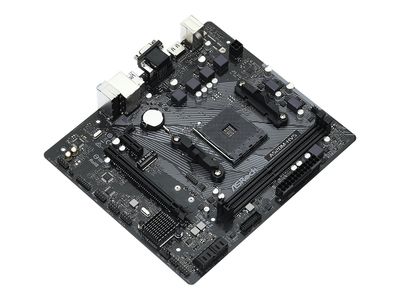

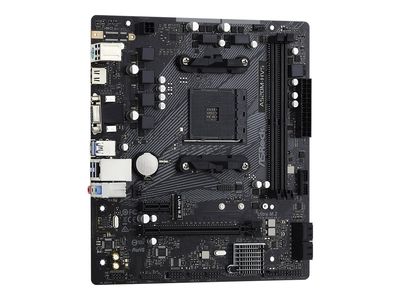

- ASRock A520M-HVS
- 2 x Serial ATA cable
- I/O back plate, 1 x M.2 screw
- Software
/asset/f/0/3/8/f038e9b76468e14ed962b7fa26f039e39eedd5e5_c1366814_42fc_423a_9e22_cc43a80973d0.jpg)
/asset/5/5/c/f/55cf7180d55bcbc4b7e070b2531650d12d3c10b9_d32f9f41_729e_4e3c_a1d4_399d4b3374e4.jpg)
/asset/b/2/2/7/b227cadcbd1db20c79c6fcb8b655bdf602be7feb_c87114ad_65d0_47d0_9020_605c1d847835.jpg)
/asset/a/8/d/b/a8db9623ac8d4f4d25f655d3ff891ae5fcb905de_adfaa4d6_6e7f_45bf_b32b_f0d2be24ad1b.jpg)
/asset/0/9/3/5/0935637f0c679985ded74d2290f17e8620101d31_8145b64a_0853_4fee_8e80_def6f1024f08.jpg)
/asset/f/0/3/8/f038e9b76468e14ed962b7fa26f039e39eedd5e5_c1366814_42fc_423a_9e22_cc43a80973d0.jpg)
/asset/5/5/c/f/55cf7180d55bcbc4b7e070b2531650d12d3c10b9_d32f9f41_729e_4e3c_a1d4_399d4b3374e4.jpg)
/asset/b/2/2/7/b227cadcbd1db20c79c6fcb8b655bdf602be7feb_c87114ad_65d0_47d0_9020_605c1d847835.jpg)
/asset/a/8/d/b/a8db9623ac8d4f4d25f655d3ff891ae5fcb905de_adfaa4d6_6e7f_45bf_b32b_f0d2be24ad1b.jpg)
/asset/0/9/3/5/0935637f0c679985ded74d2290f17e8620101d31_8145b64a_0853_4fee_8e80_def6f1024f08.jpg)
Please login to see the price and order.
Article-No.:
144575
Manufacturer-No.:
90-MXBE60-A0UAYZ
EAN/GTIN:
4710483932311
WEEE Nummer
DE46285170
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Compatible Processors
Ryzen
Chipset Type
AMD A520
Supported RAM Technology
DDR4 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC
Supported RAM Speed
3200 MHz, 4466 MHz (O.C.), 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.)
Processor Socket
Socket AM4
Power Connectors
4-pin ATX12V connector, 24-pin main power connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
2 DIMM slots
Interfaces
Internal Interfaces
1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header
RAM
Features
Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size
64 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC887
Audio
High Definition Audio (8-channel)
Networking
Network Controller
Realtek RTL8111H
Network
Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 3.0 x16, 2 x DIMM 288-pin, 1 x PCIe 3.0 x1
Interfaces
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2
Storage
Serial ATA-600 (RAID), Ultra M.2 socket
USB / FireWire
USB 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 1 x Ultra M.2
USB / FireWire Ports Configuration (Active)

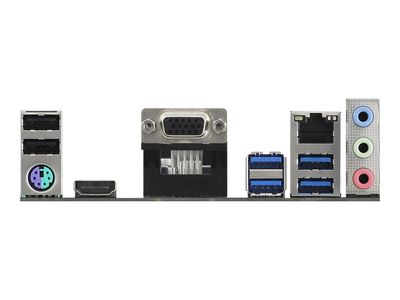

4 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
ASRock A-Tuning, Antivirus (Trial version), Drivers & utilities, Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN
Dimensions & Weight
Width
23 cm
Depth
20,1 cm
Service & Support
Type
3-year warranty
Description
- Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. - HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. - Dual graphics outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now. - Premium 50A power choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. - Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes. - Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. ASRock provides various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
