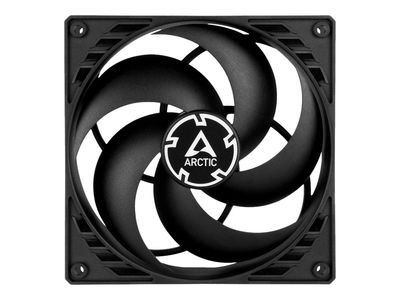

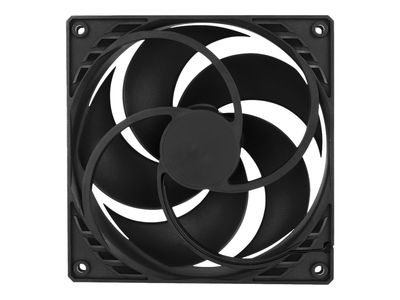

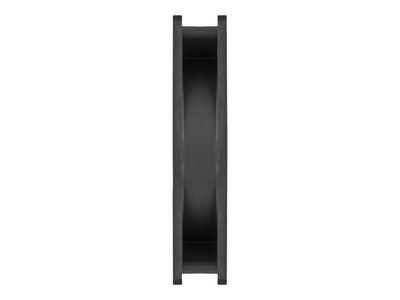

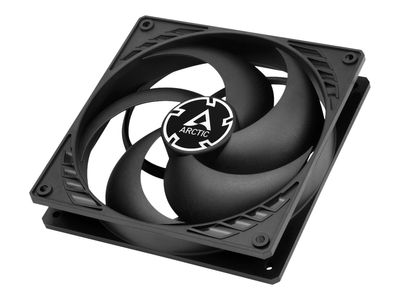

ARCTIC P14 Value Pack case fan

Article-No.:
536006
Manufacturer-No.:
ACFAN00136A
EAN/GTIN:
4895213701594
WEEE Nummer
DE61101640
Technical specifications

General

Product Type
Case fan
Packaged Quantity
1

Heatsink & Fan

Fan Diameter
140 mm
Fan Height
27 mm
Rotation Speed
1700 rpm
Air Flow
72.8 cfm
Power Connector
3-pin fan connector
Fan Bearing
Fluid dynamic bearing
Air Pressure
2.4 mm
Noise Level
0.3 Sone
Start Voltage
2,1 V
Cable Length
40 cm

Dimensions & Weight

Width
14 cm
Depth
14 cm
Height
2,7 cm
Weight
191 g

Dimensions & Weight (Shipping)

Shipping Width
13,9 cm
Shipping Depth
14,5 cm
Shipping Height
14,6 cm

Service & Support

Type
6-year warranty

Miscellaneous

Color Category
Black
Description
During the development of the P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators.
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
