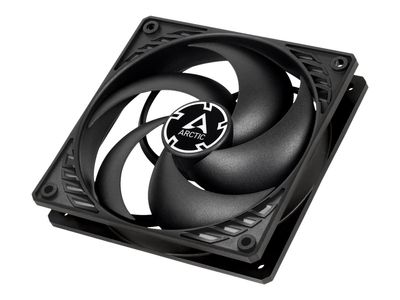

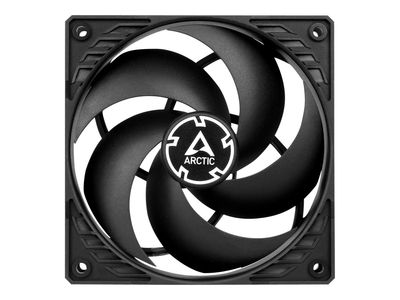

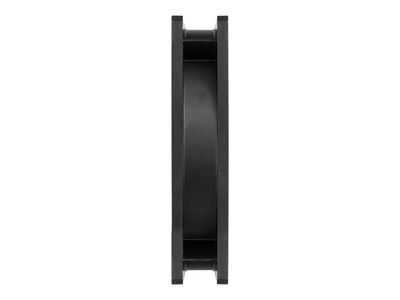

ARCTIC fan P12 PWM PST CO

Article-No.:
536034
Manufacturer-No.:
ACFAN00121A
EAN/GTIN:
4895213701358
WEEE Nummer
DE61101640
Technical specifications

General

Product Type
Case fan
Packaged Quantity
1

Heatsink & Fan

Fan Diameter
120 mm
Fan Height
25 mm
Rotation Speed
200-1800 rpm
Air Flow
56.3 cfm
Power Connector
4-pin fan socket, 4-pin fan connector
Features
Pulse-width modulation (PWM) support
Fan Bearing
Dual ball bearing
Air Pressure
2.2 mm
Noise Level
0.3 Sone
Start Voltage
3,9 V
Cable Length
40 cm

Dimensions & Weight

Width
12 cm
Depth
12 cm
Height
2,5 cm
Weight
145 g

Dimensions & Weight (Shipping)

Shipping Width
12,3 cm
Shipping Depth
12,3 cm
Shipping Height
2,7 cm
Shipping Weight
176 g

Service & Support

Type
10-year warranty

Miscellaneous

Color
Black
Color Category
Black
Description
During the development of the P12 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST CO is particularly suitable for use on heatsinks and radiators. The motor is powered by a neodym-iron-boron-magnet ring, which allows the P12 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without compromising the performance.
The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearing and thus make it the perfect choice when reliability is essential.
Even at low speeds the operating sound of the Arctic motor is barely noticeable.
Due to a sinus-magnetizing the innovative motor only creates about 5% of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the motor.
A lower motor temperature roughly doubles the life span of a fan. The Arctic motor has a longer service life through its low coil temperature. The P12 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5% due to its motor. This allows working at your PC in complete silence without any unwanted noise.
  • Optimized for static pressure
    During the development of the P12 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST CO is particularly suitable for use on heatsinks and radiators.
  • More efficient technology
    The motor is powered by a neodym-iron-boron-magnet ring, which allows the P12 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without compromising the performance.
  • For continuous operation
    The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearing and thus make it the perfect choice when reliability is essential.
  • Maximum quietness, minimum vibration
    Even at low speeds the operating sound of the Arctic motor is barely noticeable.
    Due to a sinus-magnetizing the innovative motor only creates about 5% of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the motor.
  • Extended life span
    A lower motor temperature roughly doubles the life span of a fan. The Arctic motor has a longer service life through its low coil temperature.
  • 0 dB Mode
    The P12 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5% due to its motor. This allows working at your PC in complete silence without any unwanted noise.
