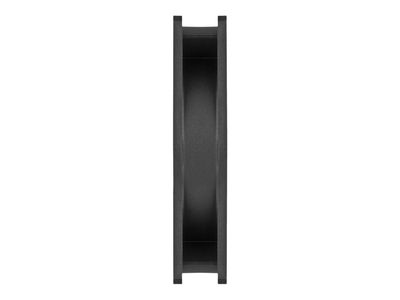

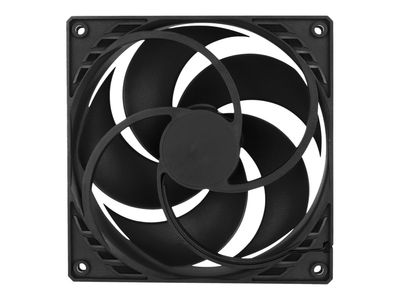

ARCTIC case fan P14 PWM PST CO - 14 cm

ARCTIC case fan P14 PWM PST CO - 14 cm_thumb_3

ARCTIC case fan P14 PWM PST CO - 14 cm_thumb_4

ARCTIC case fan P14 PWM PST CO - 14 cm_1

ARCTIC case fan P14 PWM PST CO - 14 cm_2

ARCTIC case fan P14 PWM PST CO - 14 cm_3

ARCTIC case fan P14 PWM PST CO - 14 cm_4

Article-No.:

536035

Manufacturer-No.:

ACFAN00126A

EAN/GTIN:

4895213701570

WEEE Nummer

DE61101640

Compare

Print view

Technical specifications

General

Product Type

Case fan

Packaged Quantity

Heatsink & Fan

Fan Diameter

140 mm

Fan Height

27 mm

Rotation Speed

200-1700 rpm

Air Flow

72.8 cfm

Power Connector

4-pin fan socket, 4-pin fan connector

Features

Pulse-width modulation (PWM) support

Fan Bearing

Fluid dynamic bearing

Noise Level

0.3 Sone

Start Voltage

3,9 V

Cable Length

40 cm

Dimensions & Weight

Width

14 cm

Depth

14 cm

Height

2,7 cm

Weight

194 g

Dimensions & Weight (Shipping)

Shipping Width

14,3 cm

Shipping Depth

14,3 cm

Shipping Height

2,9 cm

Shipping Weight

234 g

Service & Support

Type

10-year warranty

Miscellaneous

Features

24x7 continuous operation

Color Category

Black

Description

During the development of the P14 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST CO is particularly suitable for use on heatsinks and radiators.

More efficient technology
The motor is powered by a neodym-iron-boron-magnet ring, which allows the P14 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without compromising the performance.
Maximum quietness, minimum vibration
Even at low speeds the operating sound of the ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the motor.
0 dB mode
The P14 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5 % due to its innovative motor. This allows working at your PC in complete silence without any unwanted noise.
