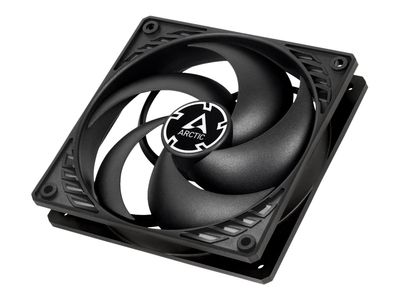

ARCTIC case fan P12 Silent - 12 cm

ARCTIC case fan P12 Silent - 12 cm_thumb_3

ARCTIC case fan P12 Silent - 12 cm_thumb_4

Article-No.:

536007

Manufacturer-No.:

ACFAN00130A

EAN/GTIN:

4895213701365

WEEE Nummer

DE61101640

Compare

Print view

Technical specifications

General

Product Type

Case fan

Packaged Quantity

Heatsink & Fan

Fan Diameter

120 mm

Fan Height

25 mm

Rotation Speed

1050 rpm

Air Flow

21.4 cfm

Power Connector

3-pin fan connector

Fan Bearing

Fluid dynamic bearing

Air Pressure

0.5 mm

Noise Level

0.08 Sone

Start Voltage

4,8 V

Cable Length

40 cm

Dimensions & Weight

Width

12 cm

Depth

12 cm

Height

2,5 cm

Weight

139 g

Dimensions & Weight (Shipping)

Shipping Width

12,3 cm

Shipping Depth

12,3 cm

Shipping Height

2,7 cm

Shipping Weight

170 g

Service & Support

Type

6-year warranty

Miscellaneous

Color Category

Black

Description

During the development of the P12 Silent, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Silent is particularly suitable for use on heatsinks and radiators.
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
At low fan speed, the motor is the main source of unwanted noise. A motor developed in Germany with an enhanced bearing reduces friction and noise.

Optimized for static pressure
During the development of the P12 Silent, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Silent is particularly suitable for use on heatsinks and radiators.
High quality bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Virtually silent motor
At low fan speed, the motor is the main source of unwanted noise. A motor developed in Germany with an enhanced bearing reduces friction and noise.
