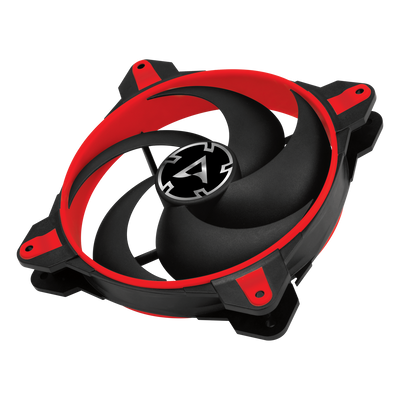

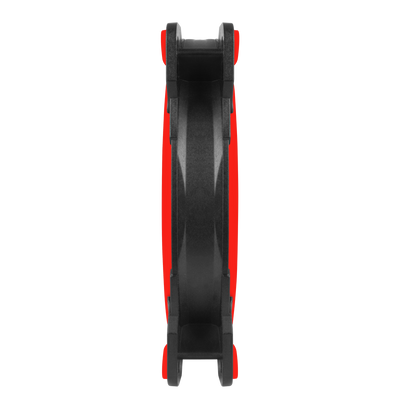

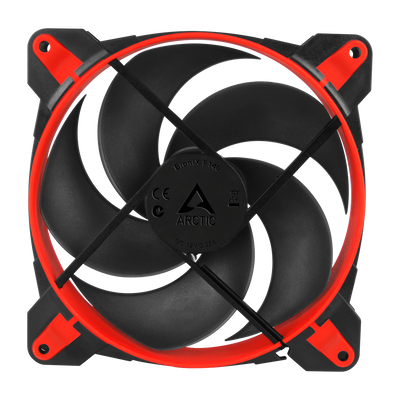

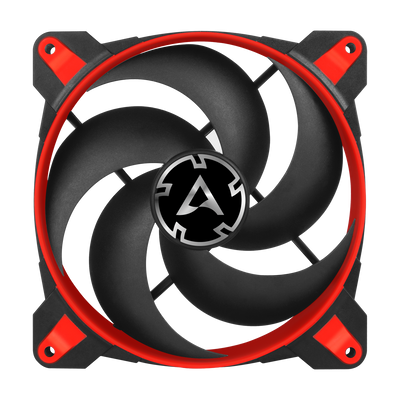

ARCTIC BioniX P140 case fan

Article-No.:

536038

Manufacturer-No.:

ACFAN00127A

EAN/GTIN:

4895213701525

WEEE Nummer

DE61101640

Compare

Print view

Technical specifications

General

Product Type

Case fan

Packaged Quantity

Heatsink & Fan

Fan Diameter

140 mm

Fan Height

28 mm

Rotation Speed

200-1950 rpm

Air Flow

77.6 cfm

Power Connector

4-pin fan socket, 4-pin fan connector

Features

Pulse-width modulation (PWM) support, Silent PWM fan

Fan Bearing

Fluid dynamic bearing

Noise Level

0.45 Sone

Cable Length

40 cm

Dimensions & Weight

Width

14 cm

Depth

14 cm

Height

2,8 cm

Weight

181 g

Dimensions & Weight (Shipping)

Shipping Width

14,8 cm

Shipping Depth

3,5 cm

Shipping Height

14,8 cm

Shipping Weight

230 g

Service & Support

Type

10-year warranty

Miscellaneous

Color

Red

Color Category

Black, Red

Description

The BioniX P140 fan features completely redesigned fan blades and is optimized for high static pressure. Thus, the BioniX P140 is especially effective when used on heatsinks and with higher air resistance. The wide RPM range from 200 to 1950 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST). The enhanced motor with a low coil temperature significantly increases the life span of the fan.
